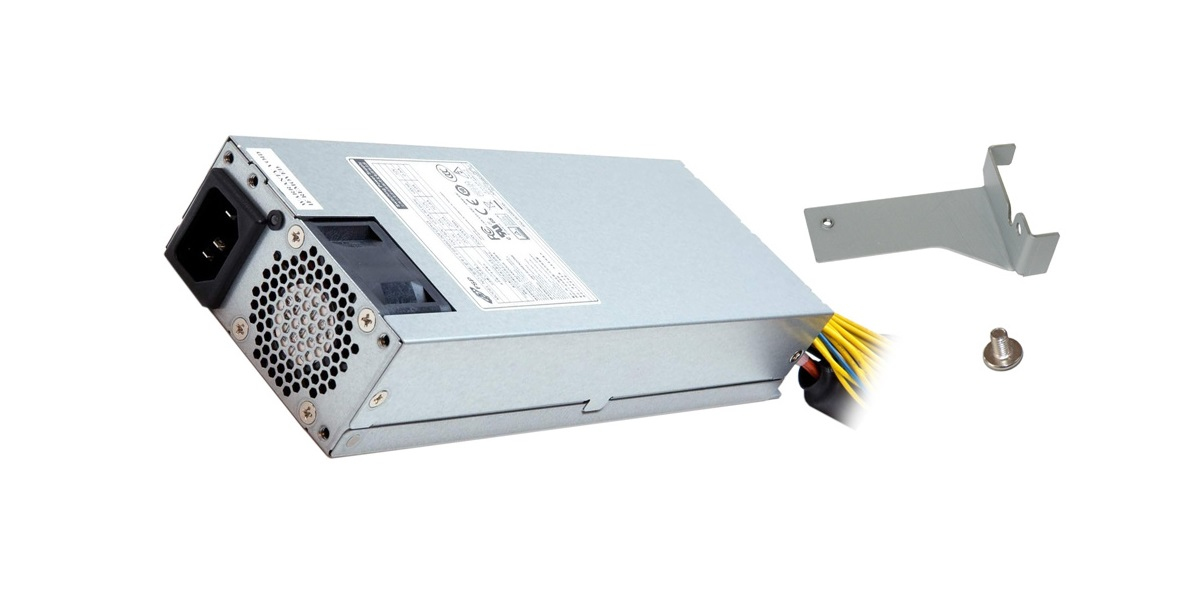

PC850 power supply unit
850 W 20+4 pin ATX Flex ATX Grey
Model PC850Part no. POC-PC8501EAN 4046047103829
36 specifications
- ColourGrey
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)0 - 50 °C
- Width220 mm
Overview
- Colour
- Grey
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 50 °C
- Width
- 220 mm
- Brand
- Shuttle
- Category
- Power Supply Unit
- Model
- PC850
- Part number
- POC-PC8501
- EAN / UPC
- 4046047103829
- Also known as
- Shuttle PC850 power supply unit 850 W 20+4 pin ATX Flex ATX Grey
Specifications
36 specifications in 10 groups
Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+5Vsb) | 3 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Efficiency | 92% |
| Hold time | 17 ms |
| Power protection features | Over current, Over voltage, Overheating, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | Flex ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| Bearing technology | Ball bearing |
| Mean time between failures (MTBF) | 100000 h |
| Compatible products | Shuttle XPC Cubes SH510R4, SH570R6 Plus, SH570R6 Plus, SH570R8, SW580R8 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Fan diameter | 4 cm |
| Number of fans | 1 fan(s) |
| LED indicators | Status |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 80 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Certification | TUV, FCC, UL/cUL, CCC, CB 62368-1 & CB 60950-1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 81.5 mm |
| Height | 40.5 mm |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, ErP |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85044030 |
Other features
| Specification | Value |
|---|---|
| Rise time | 20 ms |
