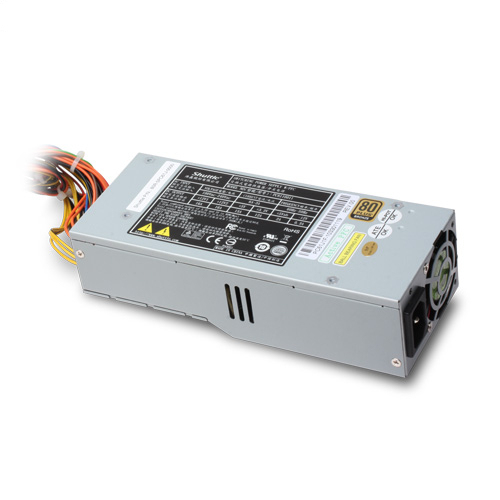

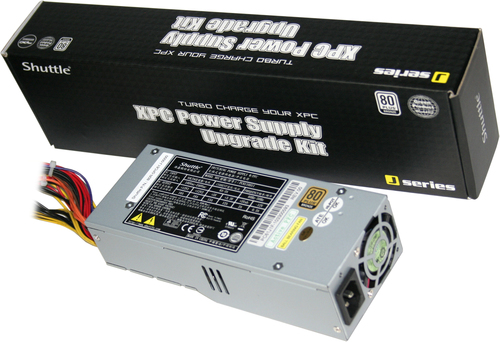

Shuttle PC61J power supply unit
300 W 20+4 pin ATX Grey
Model PC61JPart no. POC-PC61JEAN 115971195683
38 specifications
- Weight1.1 kg
- ColourGrey
- Total power300 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)10 - 50 °C
Overview
- Weight
- 1.1 kg
- Colour
- Grey
- Total power
- 300 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 10 - 50 °C
- Brand
- Shuttle
- Category
- Power Supply Unit
- Model
- PC61J
- Part number
- POC-PC61J
- EAN / UPC
- 115971195683, 320127543816, 811686005438, 8116860054380
- Also known as
- Shuttle PC61J power supply unit 300 W 20+4 pin ATX Grey
Specifications
38 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 300 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 3 - 6 A |
| Maximum input current (@110V) | +12V,+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 12 W |
| Combined power (+5V) | 15 W |
| Max output current (+12V1) | 16 A |
| Max output current (+12V2) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2 A |
| Efficiency | 82% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6-pin) | 1 |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| Mean time between failures (MTBF) | 100000 h |
| Compatible products | SH67H3, SH67H7, SN78SH7, SG45H7, SP45H7, SG41J1/J4, SH55J2, SH61R4, SH87R6 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Fan diameter | 5 cm |
| Number of fans | 1 fan(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | cUL, TÜV, CB, BSMI, CCC |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC class B, CE, BSMI, CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 82 mm |
| Depth | 200 mm |
| Height | 53 mm |
| Weight | 1.1 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Country of origin | China |
