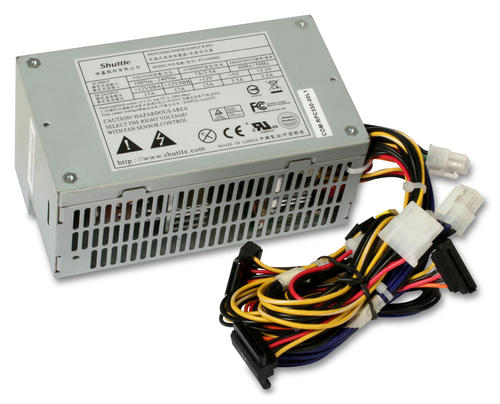

PC55 power supply unit
450 W Grey
Model PC55EAN 5711045235115
24 specifications
- Noise34 dB
- ColourGrey
- Total power450 W
- Number of SATA power connectors3
- PurposePC
- Operating temperature (T-T)10 - 50 °C
Overview
- Noise
- 34 dB
- Colour
- Grey
- Total power
- 450 W
- Number of SATA power connectors
- 3
- Purpose
- PC
- Operating temperature (T-T)
- 10 - 50 °C
- Brand
- Shuttle
- Category
- Power Supply Unit
- Model
- PC55
- Part number
- PC55
- EAN / UPC
- 5711045235115, 689466108675, 803982990945, 811686005148 +3 more
- Also known as
- Shuttle PC55 power supply unit 450 W Grey
Specifications
24 specifications in 10 groups
Power
| Specification | Value |
|---|---|
| Total power | 450 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 3.5 A |
| Power Factor Correction (PFC) type | Active |
| Efficiency | 75% |
| Hold time | 16 ms |
| Power protection features | Over current, Over power, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 3 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Noise level | 34 dB |
| Compatible products | SB81P, SB95P, SB95PV2, SD31P, SD37P2, SD39P2, SN25P, SN26P, SN27P2 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | UL, CUL, TÜV, CB, BSMI |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, BSMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 86 mm |
| Depth | 150 mm |
| Height | 83 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Rise time | 20 ms |
