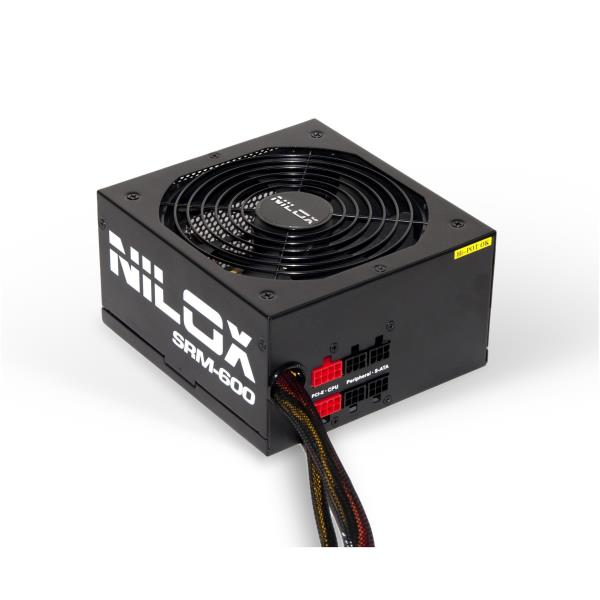

Nilox SRM-600 power supply unit
600 W ATX Black
Model SRM-600EAN 8059616331895
28 specifications
- Noise45 dB
- ColourBlack
- Total power600 W
- Number of SATA power connectors8
- PurposePC
Overview
- Noise
- 45 dB
- Colour
- Black
- Total power
- 600 W
- Number of SATA power connectors
- 8
- Purpose
- PC
- Brand
- Nilox
- Category
- Power Supply Unit
- Model
- SRM-600
- Part number
- SRM-600
- EAN / UPC
- 8059616331895
- Also known as
- Nilox SRM-600 power supply unit 600 W ATX Black
Specifications
28 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| AC input voltage | 115 - 230 V |
| Maximum input current (@110V) | +12V,+3.3V,+5V |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 46 A |
| Max output current (+5V) | 17 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 8 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| PCI Express connector | Yes |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.3 |
| EPS version | 2.91 |
| Noise level | 45 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
