PSU MEG Ai1000P PCIE5
Model PSU MEG Ai1000P PCIE5Part no. MEG AI1000P PCIE5EAN 4719072970253
34 specifications
- ColourBlack
- Total power1000 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 1000 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- MSI
- Category
- Power Supply Unit
- Model
- PSU MEG Ai1000P PCIE5
- Part number
- MEG AI1000P PCIE5
- EAN / UPC
- 4719072970253
- Also known as
- MSI PSU MEG Ai1000P PCIE5 power supply unit 1000 W 24-pin ATX ATX Black
Specifications
34 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 120 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 83.33 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |

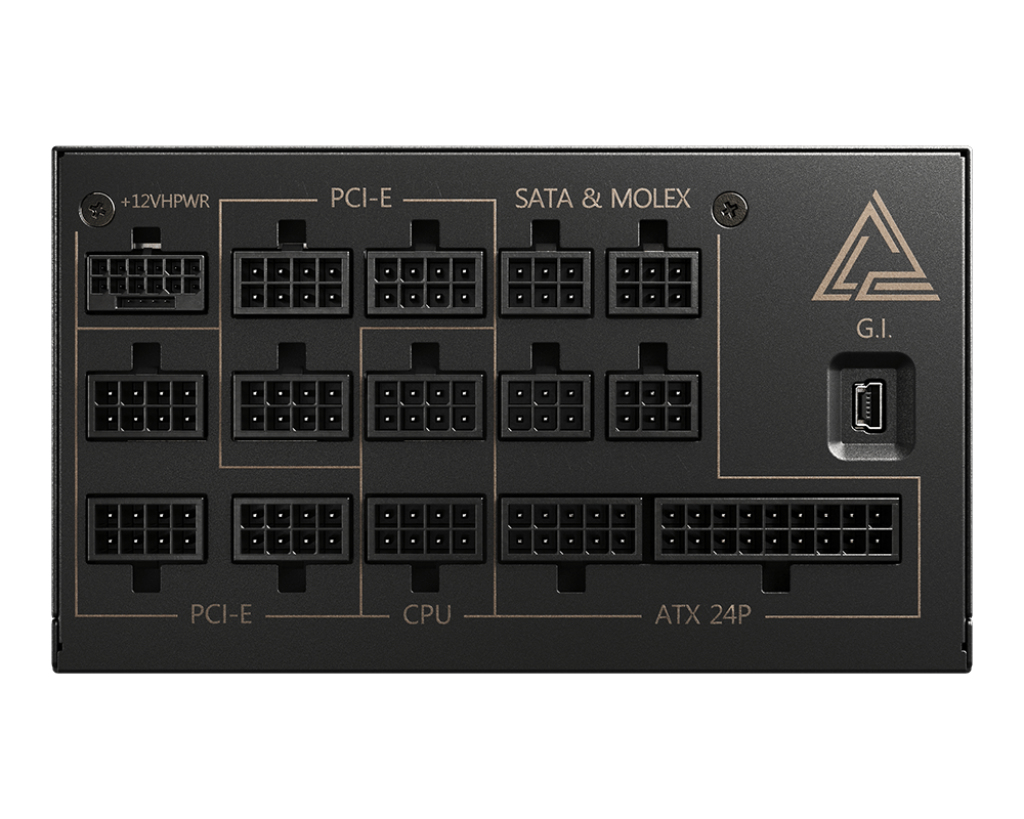

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 8 |
| ATX Power connector (24-pin) | Yes |
| Floppy disk drive connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

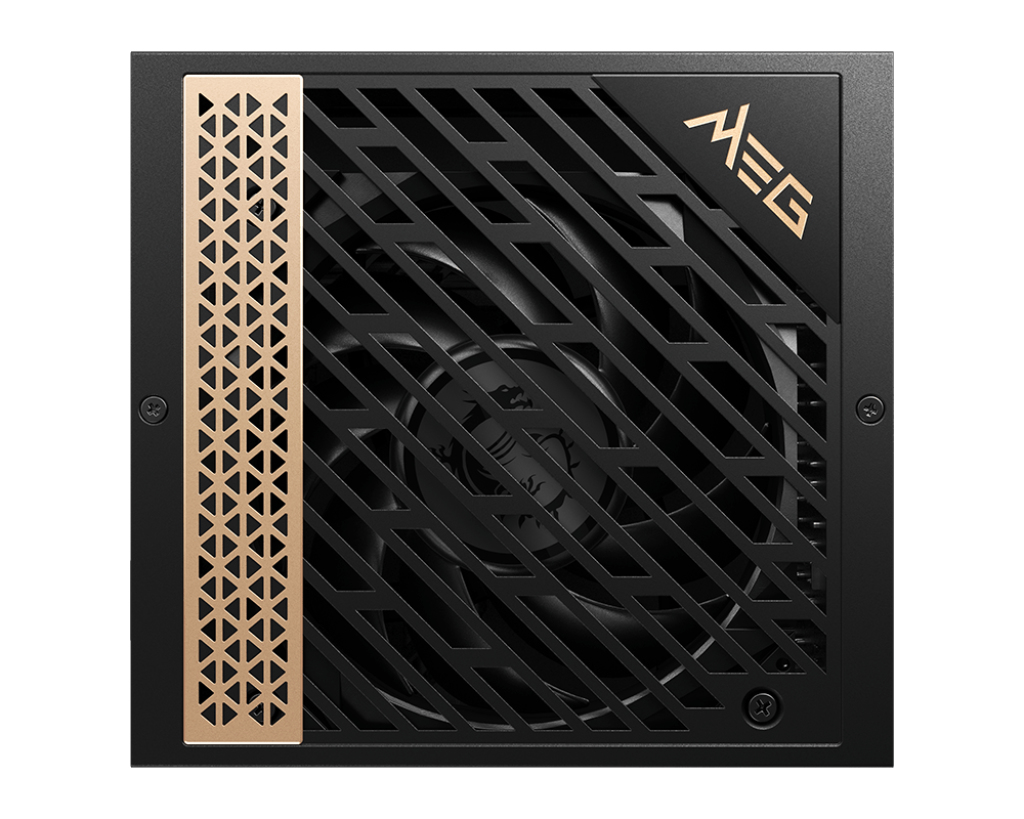

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
