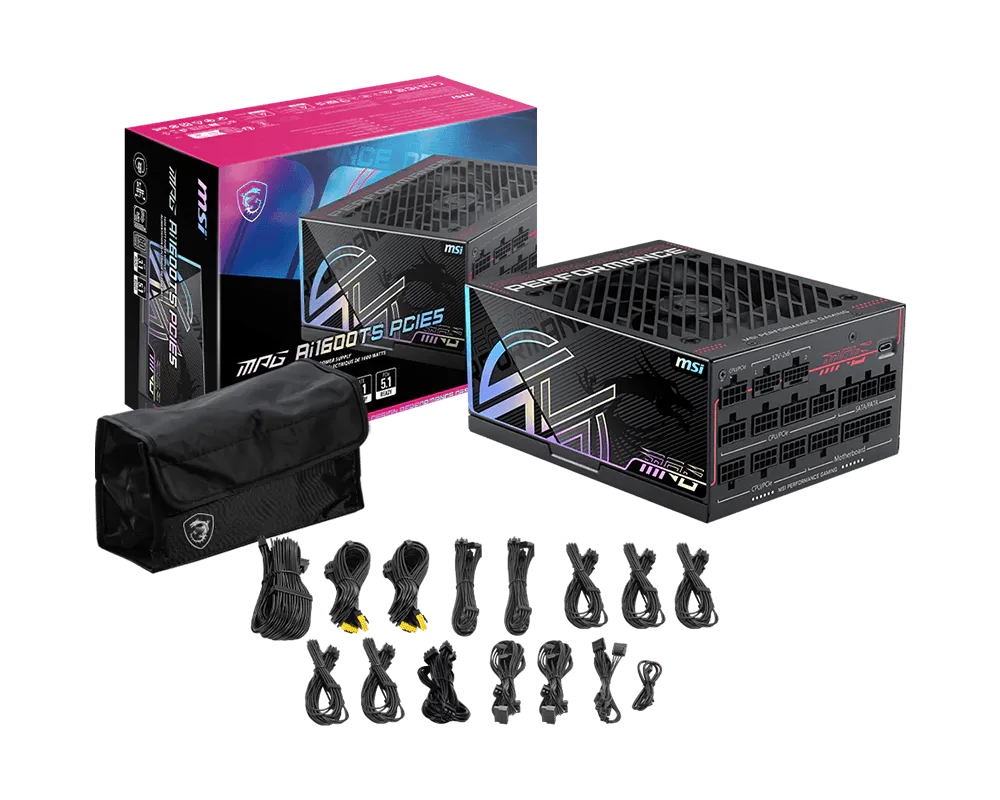

MPG Ai1600TS PCIE5
Model MPG Ai1600TS PCIE5EAN 824142448519
43 specifications
- ColourBlack
- Total power1600 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width190 mm
Overview
- Colour
- Black
- Total power
- 1600 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 190 mm
- Brand
- MSI
- Category
- Power Supply Unit
- Model
- MPG Ai1600TS PCIE5
- Part number
- MPG Ai1600TS PCIE5
- EAN / UPC
- 824142448519
- Also known as
- MSI MPG Ai1600TS PCIE5 power supply unit 1600 W 24-pin ATX ATX Black
Specifications
43 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 1600 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum input current (@110V) | 15 A |
| Maximum input current (@220V) | 10 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1599.96 W |
| Combined power (+5V) | 120 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 133.33 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (8-pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6-pin) | 0 |
| PCI Express power connectors (6+2 pin) | 8 |
| PCI Express power connectors (12+4 pin) | 0 |
| PCI Express power connectors (12-pin) | 0 |
| PCI Express power connectors (8-pin) | 0 |
| ATX Power connector (24-pin) | Yes |
| Floppy disk drive connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Titanium |
| ATX version | 3.1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Illumination | No |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 150 mm |
| Height | 86 mm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
