MPG A750GF
Model MPG A750GFEAN 824142225752
51 specifications
- Weight2.9 kg
- ColourBlack
- Total power750 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width209 mm
Overview
- Weight
- 2.9 kg
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 209 mm
- Brand
- MSI
- Category
- Power Supply Unit
- Model
- MPG A750GF
- Part number
- MPG A750GF
- EAN / UPC
- 824142225752, 8241422257524
- Also known as
- MSI MPG A750GF UK PSU '750W, 80 Plus Gold certified, Fully Modular, 100% Japanese Capacitor, Flat Cables, ATX Power Supply Unit, UK Powercord, Black, Support La
Specifications
51 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 120 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 25 A |
| Max output current (+12V1) | 35 A |
| Max output current (+12V2) | 35 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |

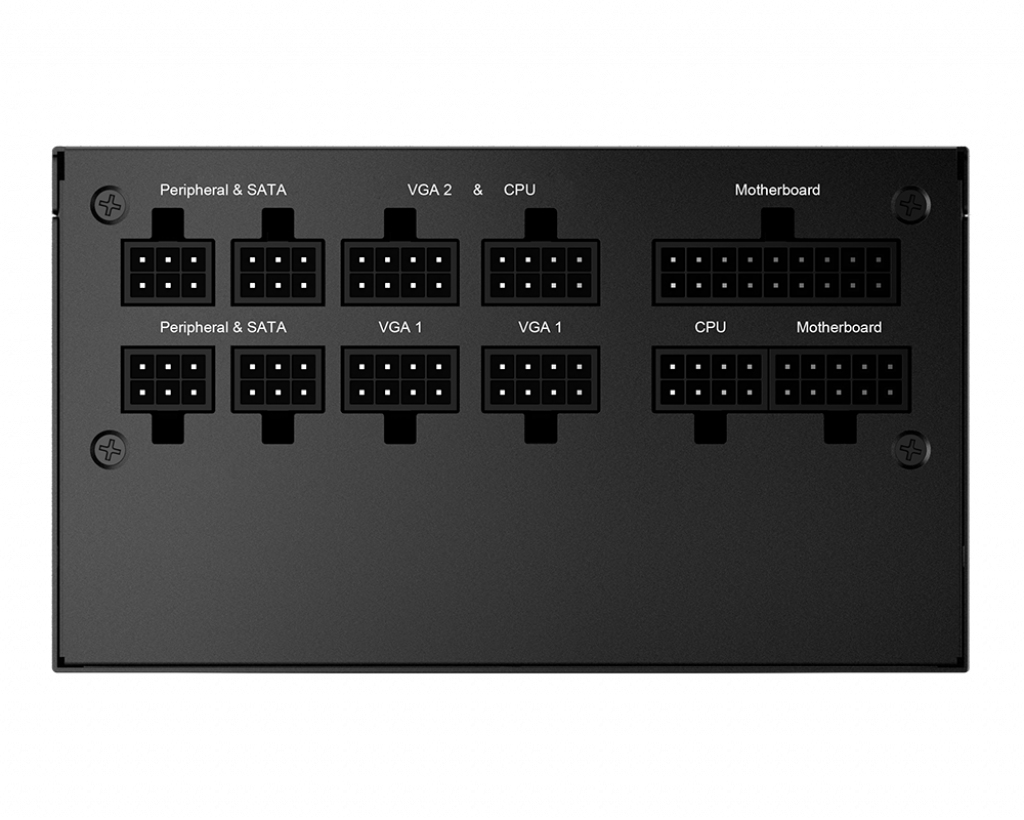

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 950 mm |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| EPS power connector (8-pin) | No |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6-pin) | 0 |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power connectors (12+4 pin) | 0 |
| PCI Express power connectors (12-pin) | 0 |
| PCI Express power connectors (8-pin) | 0 |
| PCI Express power cable length | 50 cm |
| ATX Power connector (24-pin) | Yes |
| Floppy disk drive cable length | 110 cm |
| Floppy disk drive connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Illumination | No |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 209 mm |
| Depth | 287 mm |
| Height | 129 mm |
| Weight | 2.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.98 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Country of origin | China |
