MPG A1000G
Model MPG A1000GEAN 4526541040351
31 specifications
- ColourBlack
- Total power1000 W
- Motherboard power connector20+4 pin ATX
- PurposeAll-in-One PC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 1000 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- All-in-One PC
- Width
- 150 mm
- Brand
- MSI
- Category
- Power Supply Unit
- Model
- MPG A1000G
- Part number
- MPG A1000G
- EAN / UPC
- 4526541040351, 824142272978, 10824142272975, 4719072898724 +1 more
- Also known as
- MSI MPG A1000G UK PSU '1000W, 80 Plus Gold certified, Fully Modular, 100% Japanese Capacitor, Flat Cables, ATX Power Supply Unit, UK Powercord, Black, Support L
Specifications
31 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 13.0/6.5 A |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|

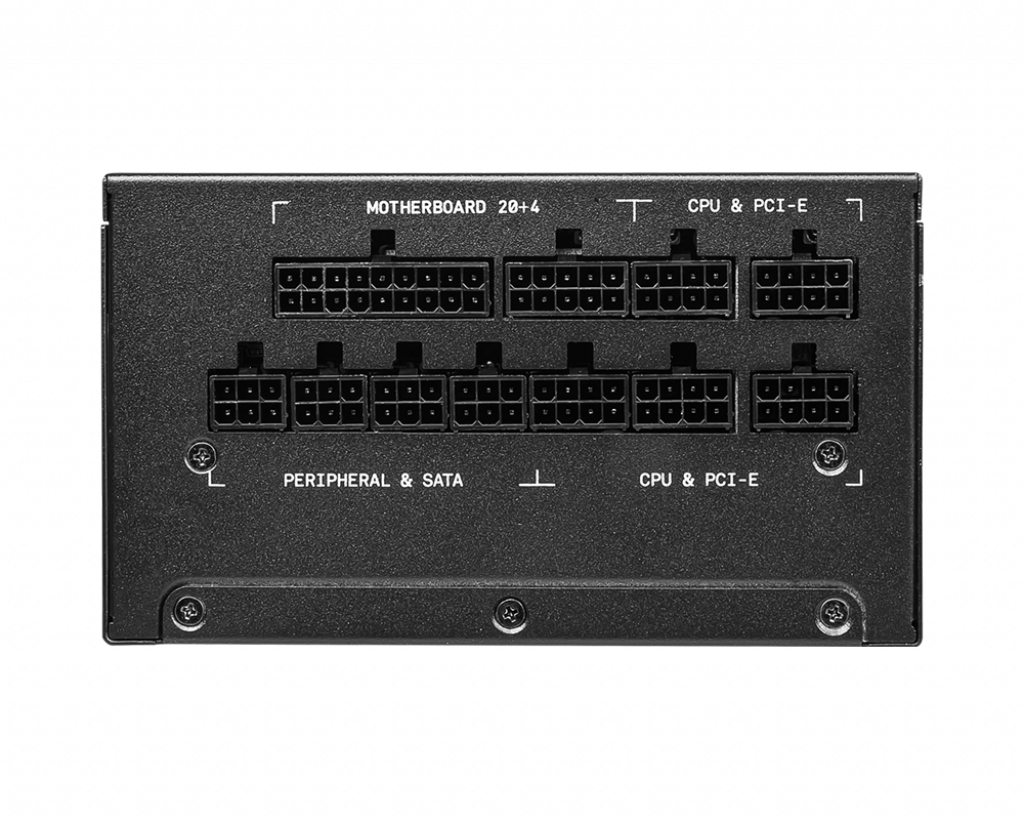

| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | All-in-One PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Supported motherboard form factors | ATX |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 86 mm |
| Height | 150 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
