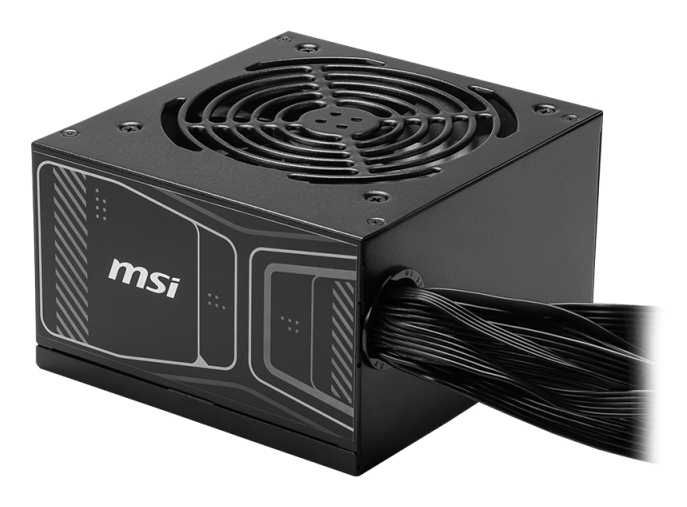

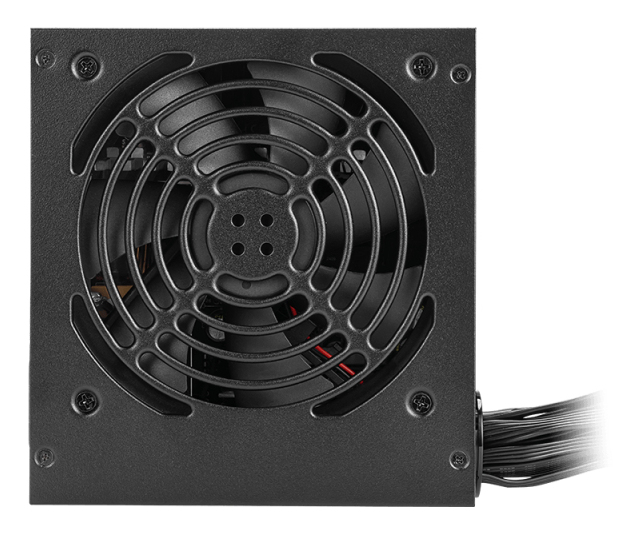

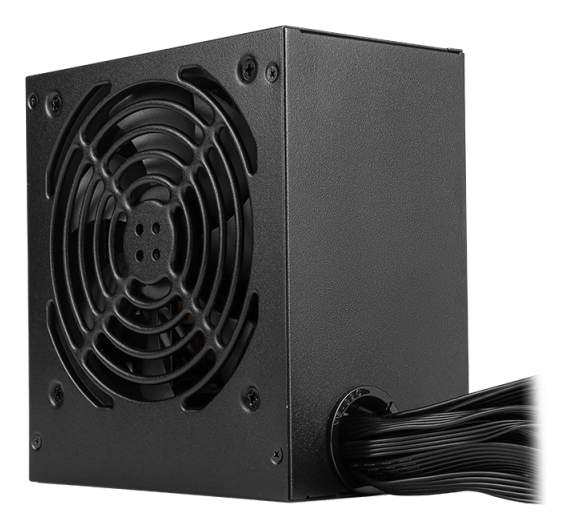

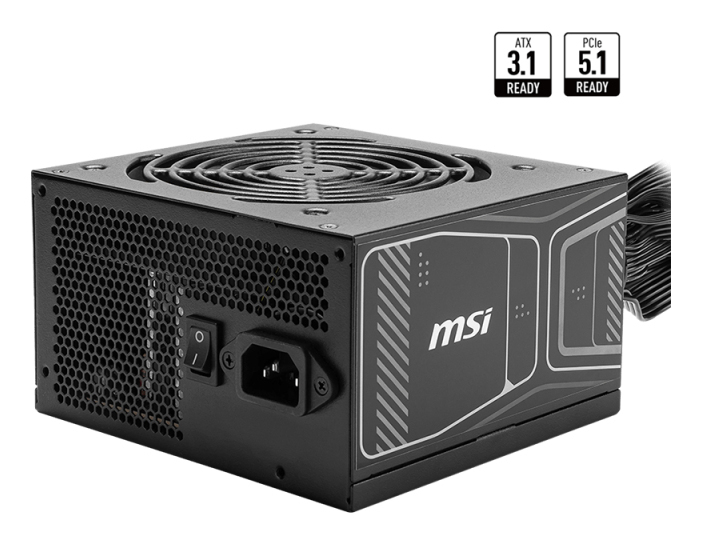

MAG A750GN PCIE5 (UK)
Model MAG A750GN PCIE5 (UK)EAN 4711377285452
44 specifications
- ColourBlack
- Total power750 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width140 mm
Overview
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- MSI
- Category
- Power Supply Unit
- Model
- MAG A750GN PCIE5 (UK)
- Part number
- MAG A750GN PCIE5 (UK)
- EAN / UPC
- 4711377285452
- Also known as
- MSI MAG A750GN PCIE5 (UK) power supply unit 750 W 24-pin ATX ATX Black
Specifications
44 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under temperature |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | No |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6-pin) | 0 |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (12+4 pin) | 0 |
| PCI Express power connectors (12-pin) | 0 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power connectors (8-pin) | 0 |
| CPU P4 connector (4-pin) | 0 |
| ATX Power connector (24-pin) | Yes |
| Number of EPS connectors | 2 |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Fan speed | 500 - 1800 RPM |
| Illumination | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
