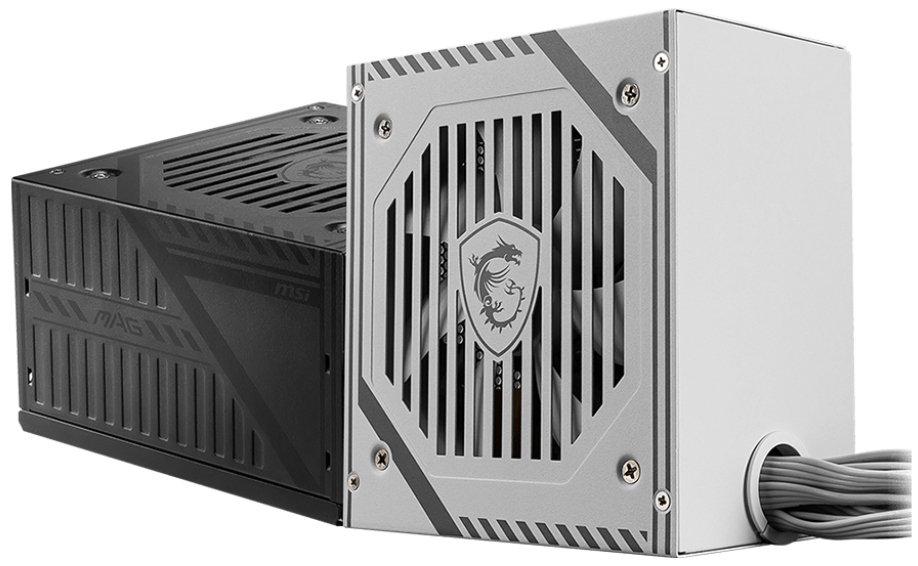

MAG A650BNL
Model MAG A650BNLPart no. 306-7ZPAX27-HH9EAN 4711377252317
28 specifications
- ColourBlack
- Total power650 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width140 mm
Overview
- Colour
- Black
- Total power
- 650 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- MSI
- Category
- Power Supply Unit
- Model
- MAG A650BNL
- Part numbers
- 306-7ZPAX27-HH9, MAG A650BNL, 306-7ZPAX11-809
- EAN / UPC
- 4711377252317, 4711377151153, 4711377328180, 4711377126625 +1 more
- Also known as
- MSI MAG A650BNL power supply unit 650 W 24-pin ATX ATX Black
Specifications
28 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Efficiency | 85% |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | No |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| ATX Power connector (24-pin) | Yes |
| ATX power connector (20+4 pin) | No |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Supported motherboard form factors | ATX |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
