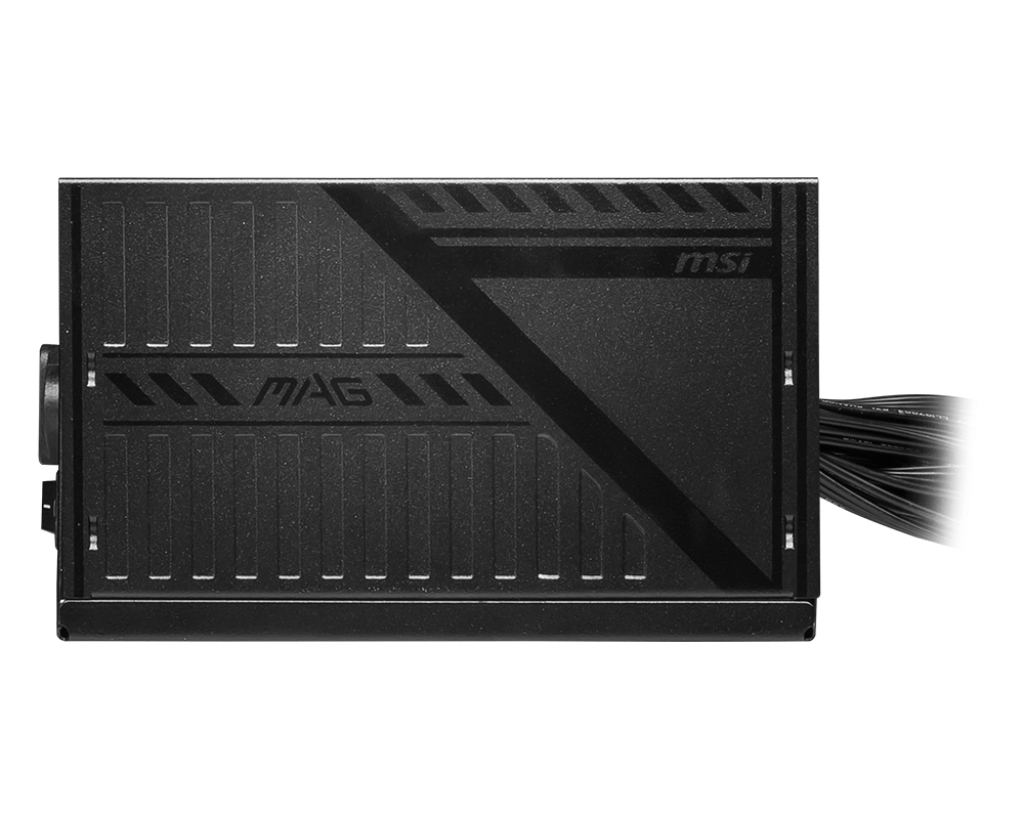

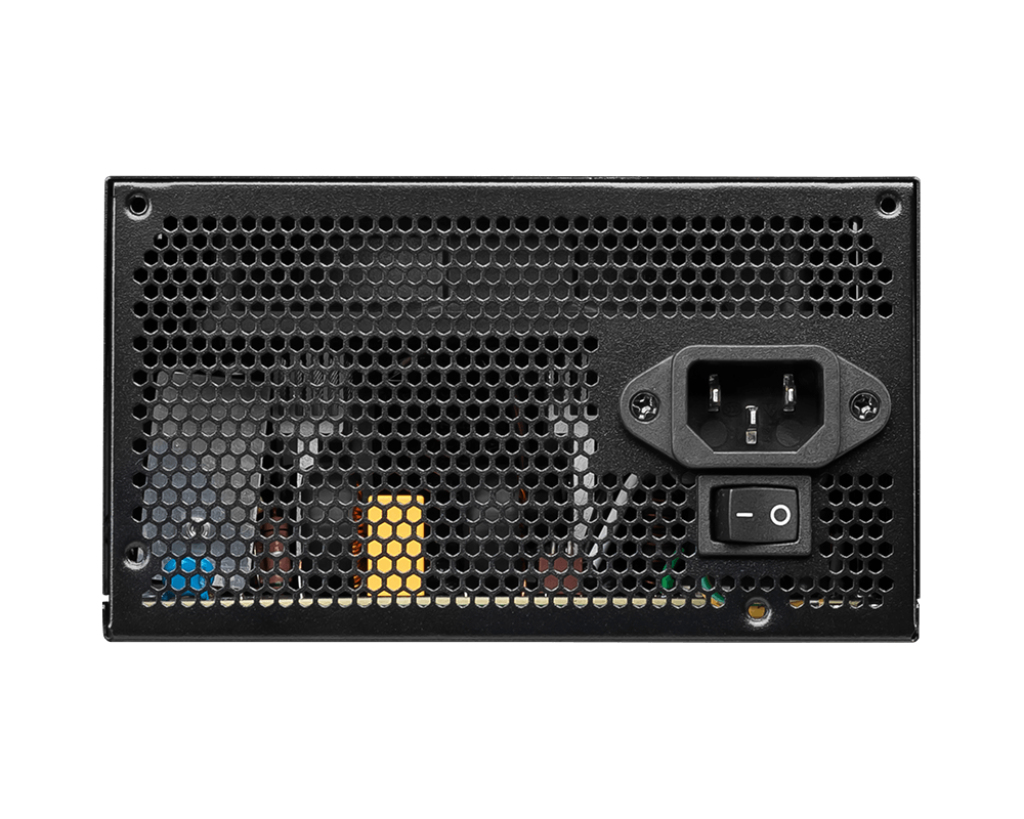

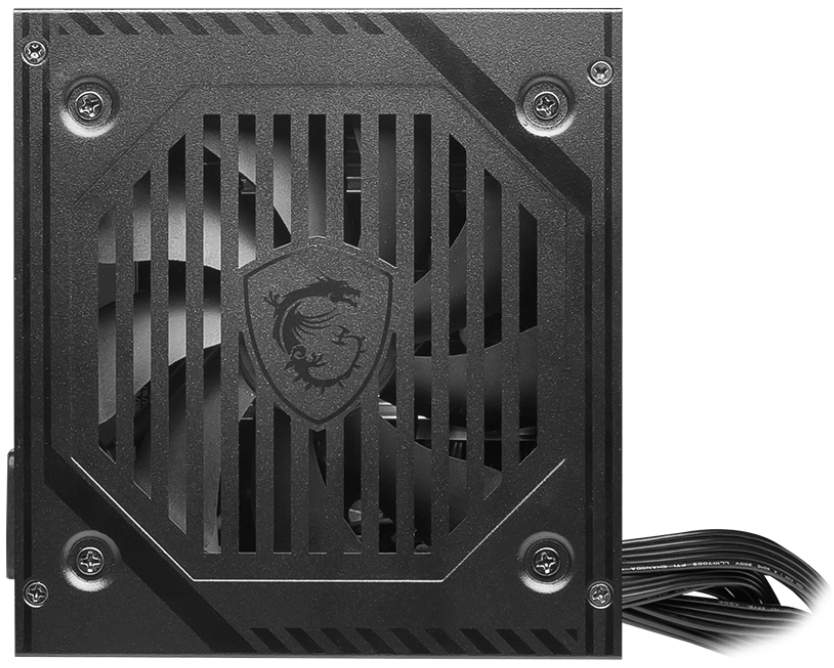

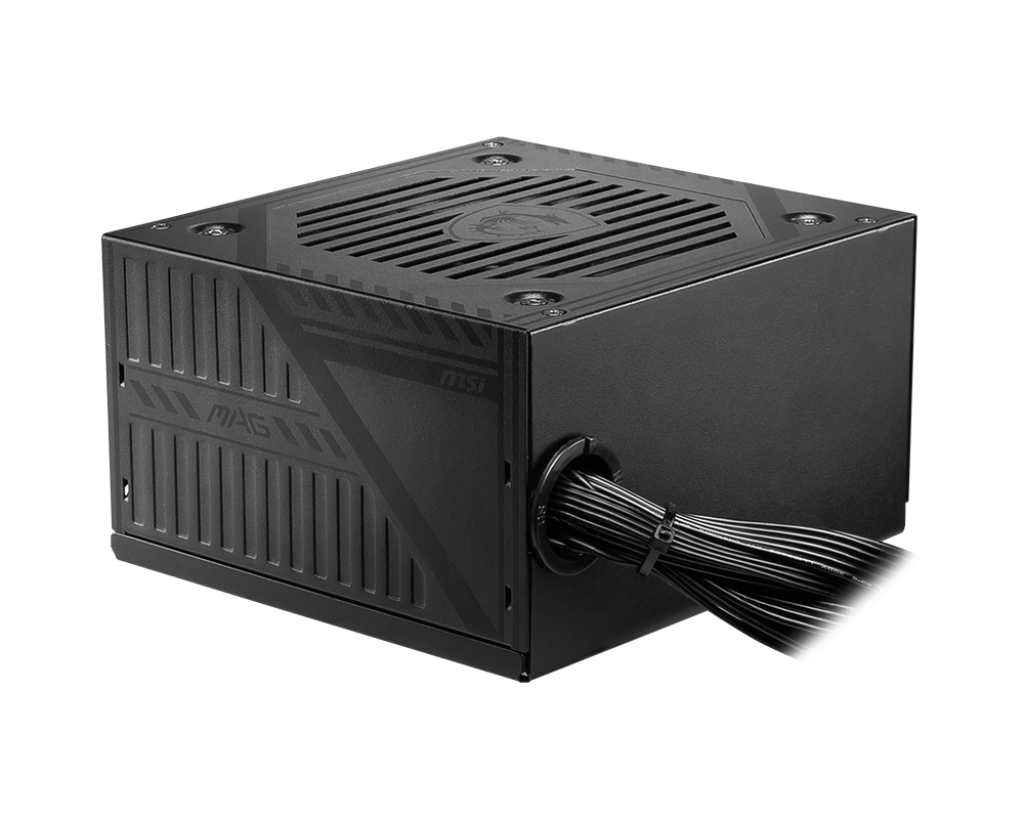

MAG A500DN
Model MAG A500DNEAN 4719072970277
36 specifications
- ColourBlack
- Total power500 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width140 mm
Overview
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- MSI
- Category
- Power Supply Unit
- Model
- MAG A500DN
- Part number
- MAG A500DN
- EAN / UPC
- 4719072970277
- Also known as
- MSI MAG A500DN power supply unit 500 W 24-pin ATX ATX Black
Specifications
36 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 105 W |
| Combined power (+12V) | 500 W |
| Combined power (+5V) | 456 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 14 A |
| Max output current (+12V) | 38 A |
| Max output current (+5V) | 14 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | No |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6-pin) | 0 |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power connectors (12+4 pin) | 0 |
| PCI Express power connectors (16-pin) | 0 |
| PCI Express power connectors (8-pin) | 0 |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Illumination | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
