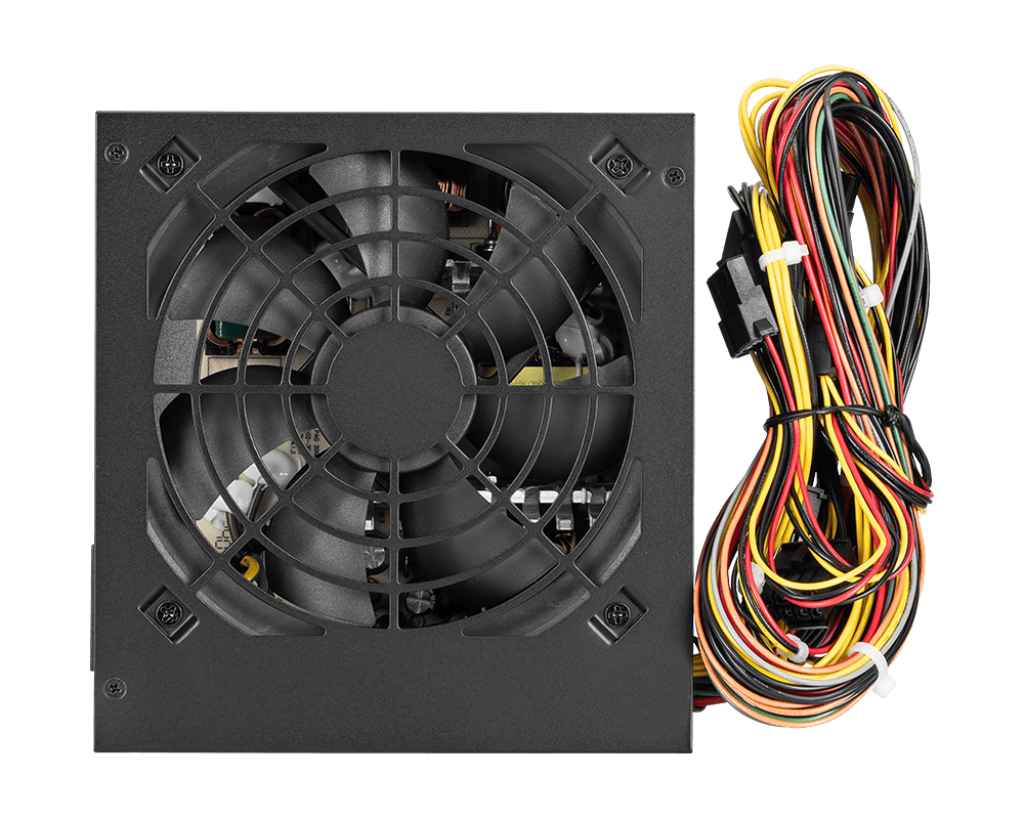

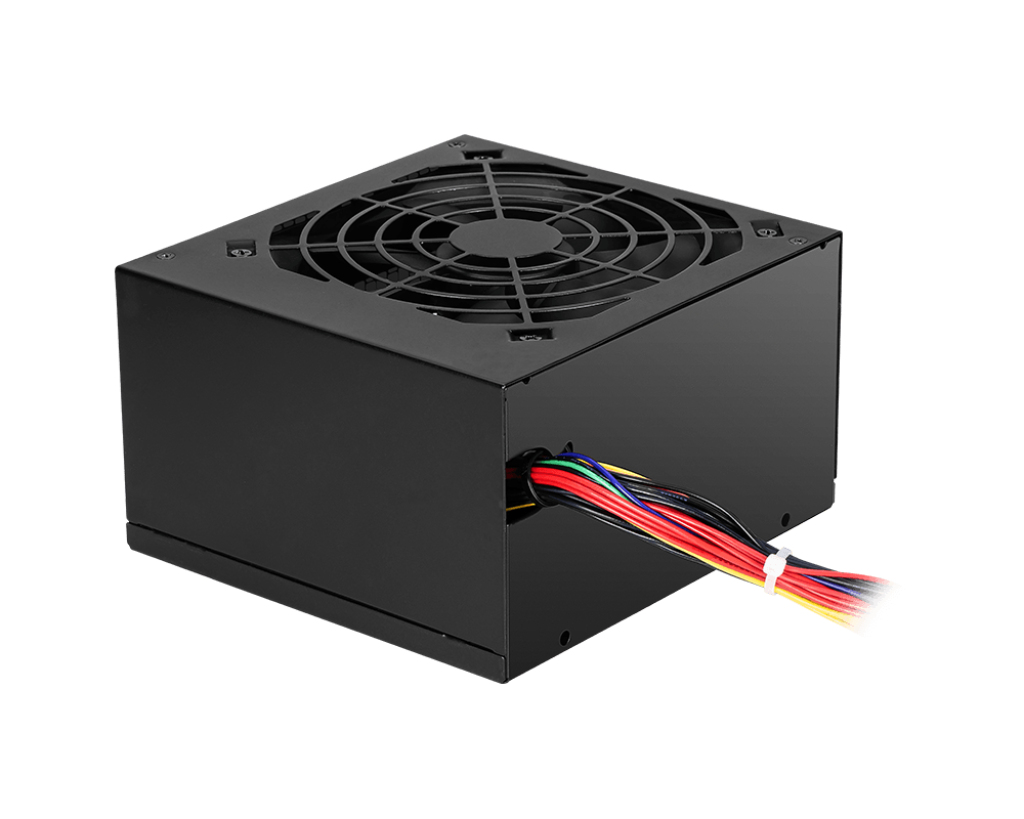

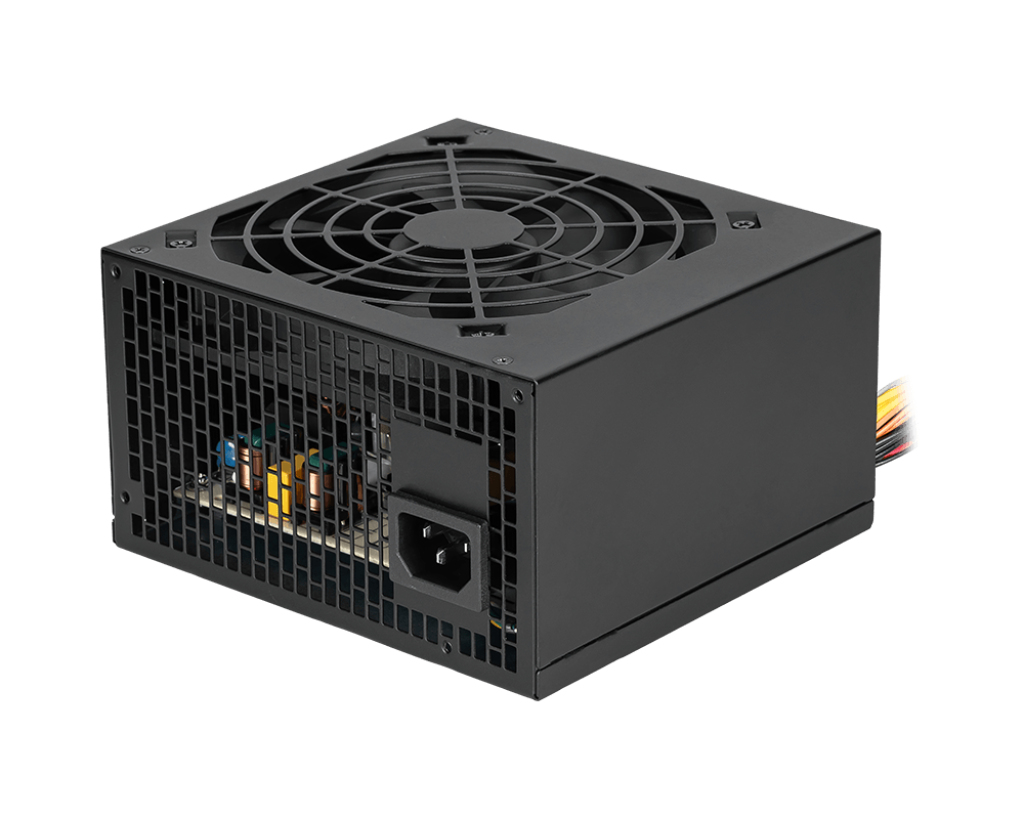

MAG A300N-H
Model MAG A300N-H
35 specifications
- ColourBlack
- Total power300 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width140 mm
Overview
- Colour
- Black
- Total power
- 300 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- MSI
- Category
- Power Supply Unit
- Model
- MAG A300N-H
- Part number
- MAG A300N-H
- Also known as
- MSI MAG A300N-H power supply unit 300 W 20+4 pin ATX ATX Black
Specifications
35 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 300 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 3.5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 70 W |
| Combined power (+12V) | 290 W |
| Combined power (+5V) | 70 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 10 W |
| Max output current (+3.3V) | 6 A |
| Max output current (+12V) | 23 A |
| Max output current (+5V) | 13 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2 A |
| Power protection features | Overload |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 47 cm |
| Number of PATA power connectors | 1 |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Illumination | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
