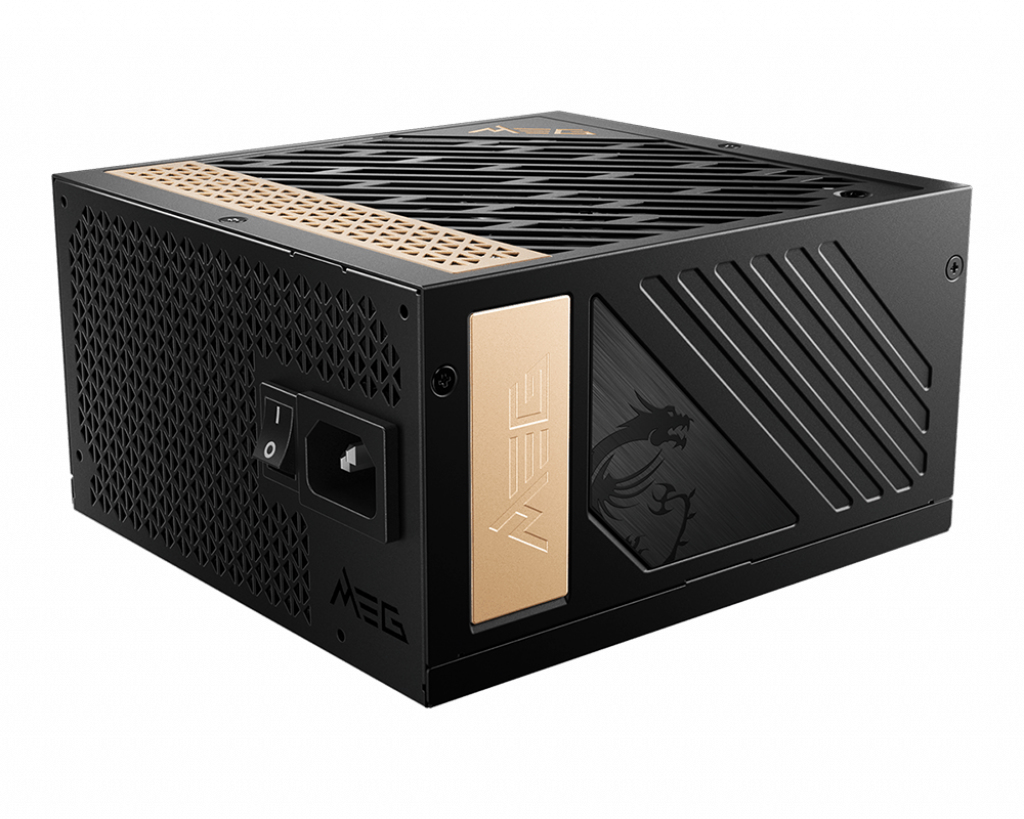

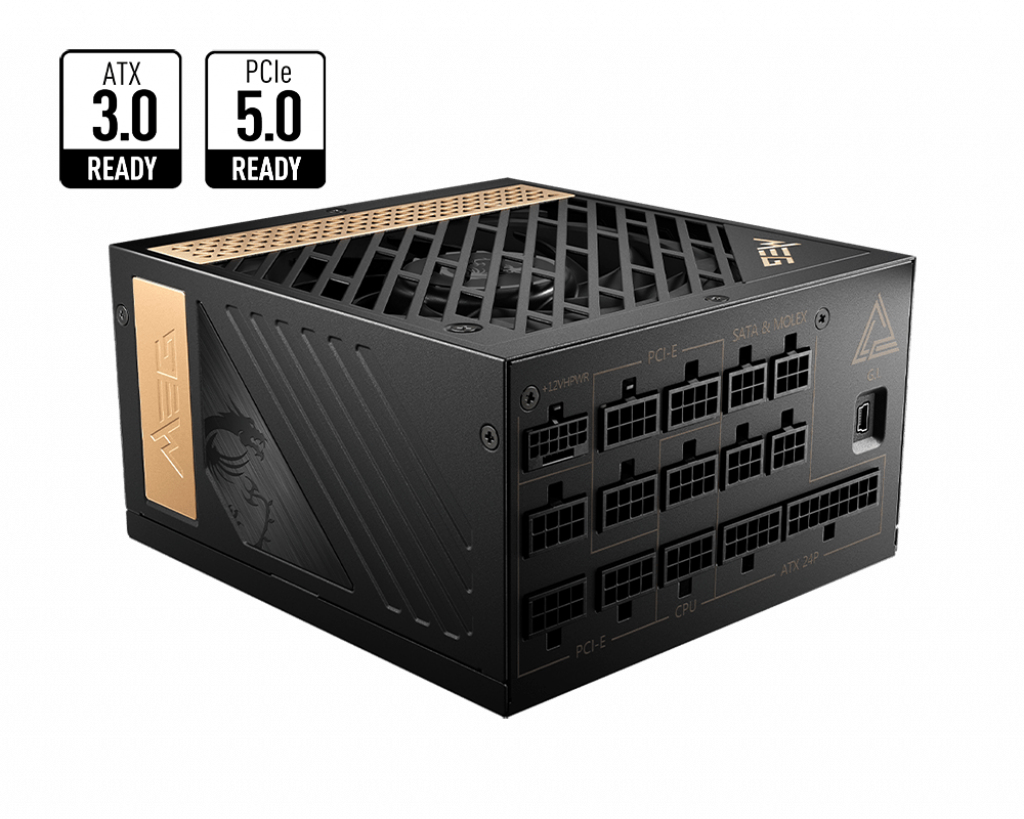

AI1300P PCIE5
Model AI1300P PCIE5Part no. MEG AI1300P PCIE5EAN 824142292259
45 specifications
- ColourBlack
- Total power1300 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 1300 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- MSI
- Category
- Power Supply Unit
- Model
- AI1300P PCIE5
- Part number
- MEG AI1300P PCIE5
- EAN / UPC
- 824142292259, 4711377030458, 4719072970260
- Also known as
- MSI MEG AI1300P PCIE5 power supply unit 1300 W 24-pin ATX ATX Black
Specifications
45 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 1300 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 1300 W |
| Combined power (+5V) | 130 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 25 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Efficiency | 92% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|

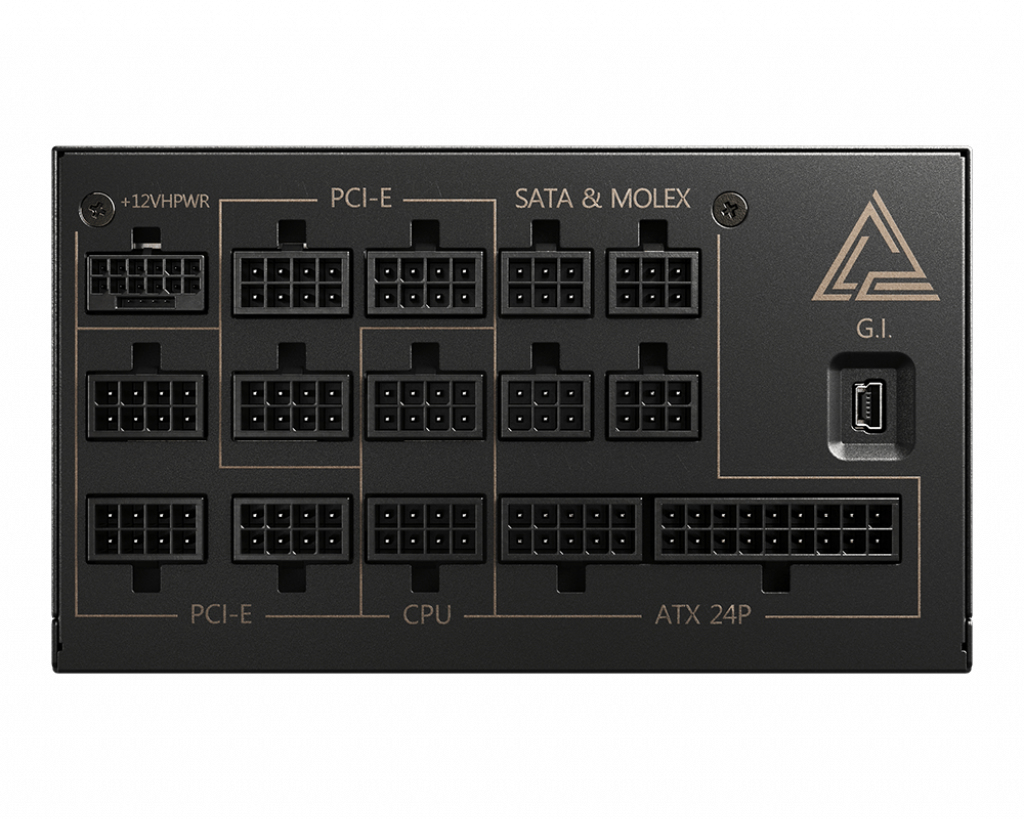

| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 16 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (8-pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6-pin) | 0 |
| PCI Express power connectors (6+2 pin) | 8 |
| PCI Express power connectors (12+4 pin) | 0 |
| PCI Express power connectors (12-pin) | 0 |
| PCI Express power connectors (8-pin) | 0 |
| ATX Power connector (24-pin) | Yes |
| Floppy disk drive connector | Yes |
| PCI Express connector | Yes |

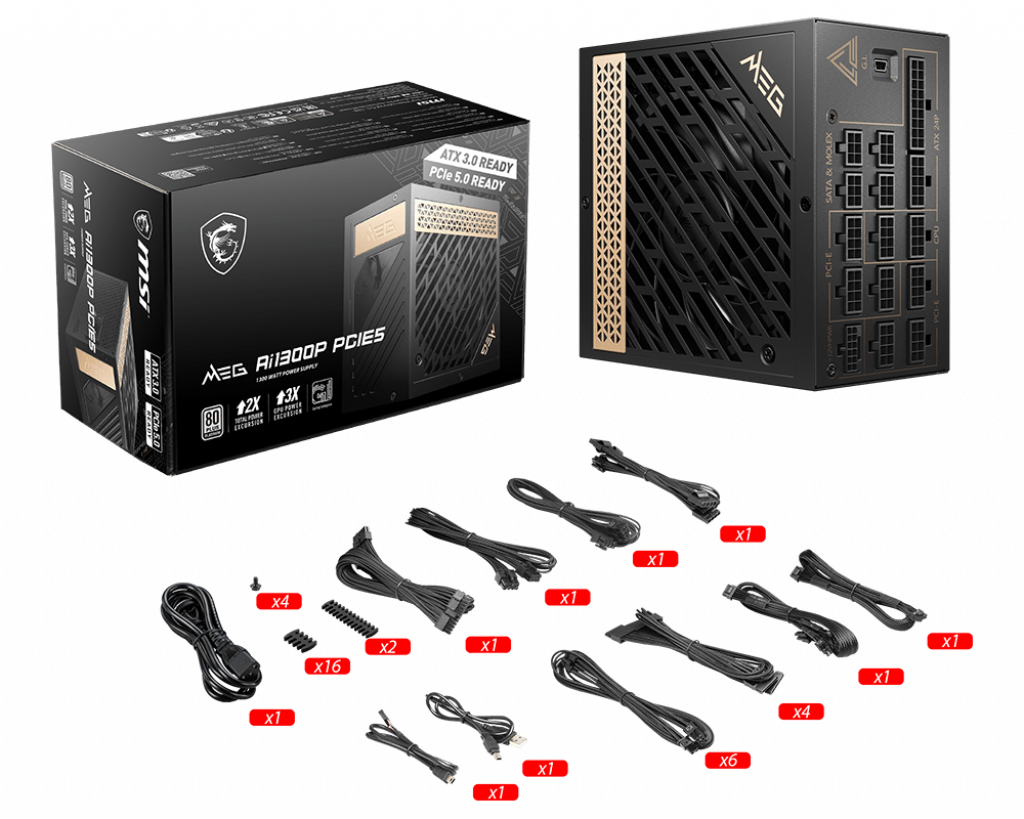

| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

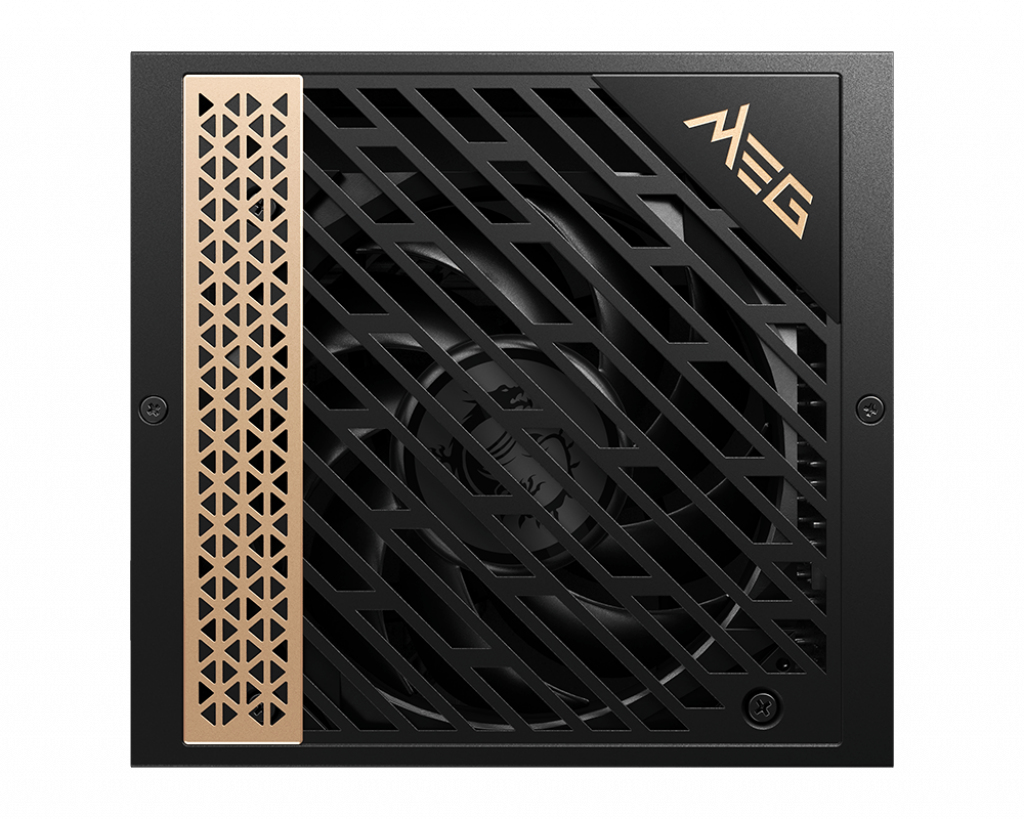

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Illumination | No |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 16 mm |
| Height | 86 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Country of origin | China |
