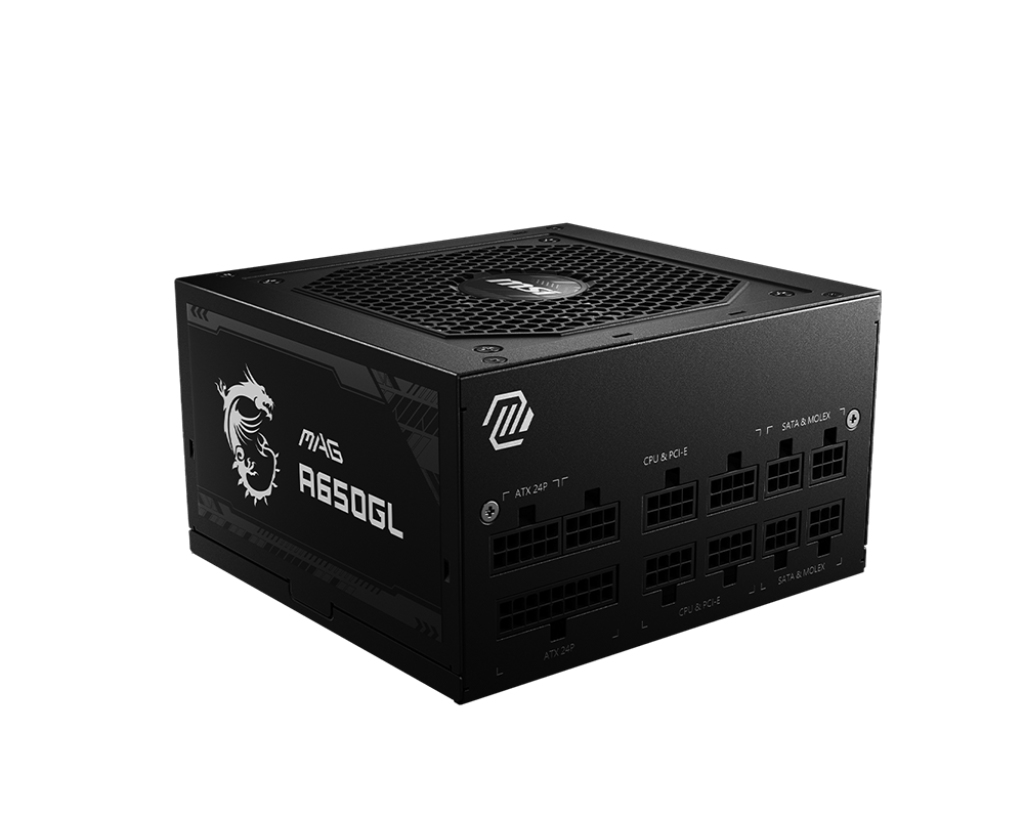

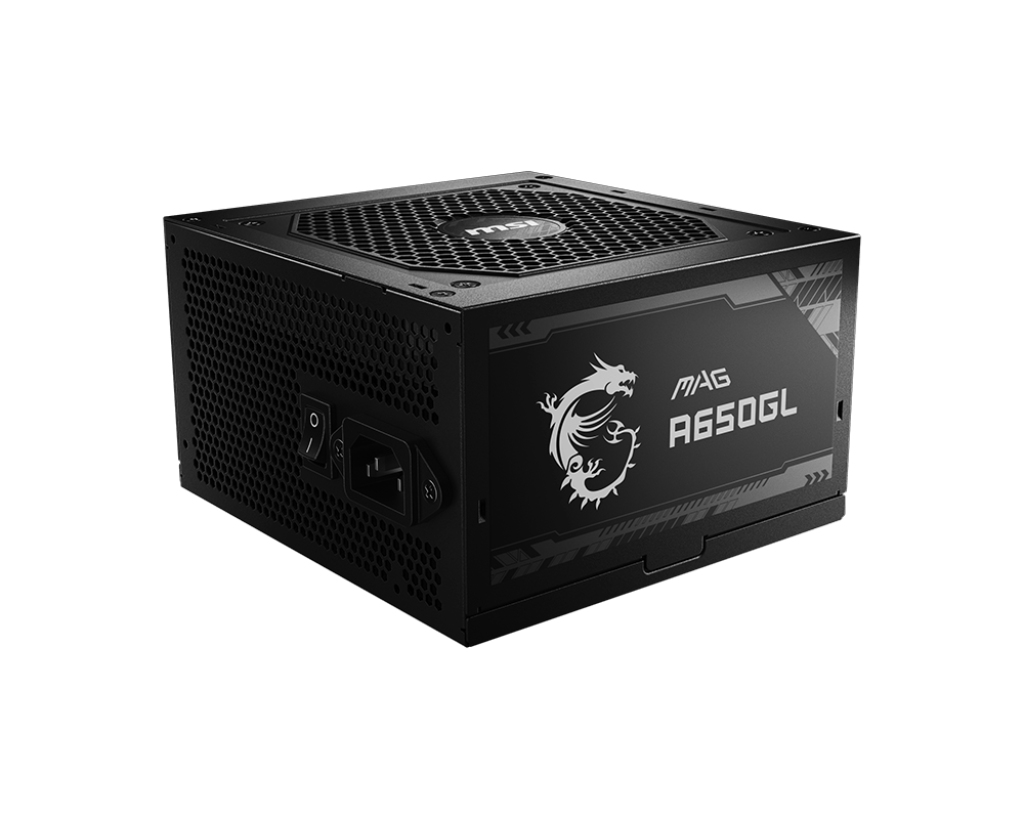

MAG A650GL power supply unit
650 W 20+4 pin ATX ATX Black
Model A650GLPart no. MAG A650GLEAN 824142319246
46 specifications
- ColourBlack
- Total power650 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 650 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- MSI
- Category
- Power Supply Unit
- Model
- A650GL
- Part number
- MAG A650GL
- EAN / UPC
- 824142319246, 4711377084277, 4711377087278
- Also known as
- MSI MAG A650GL power supply unit 650 W 20+4 pin ATX ATX Black
Specifications
46 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 20 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Short circuit |

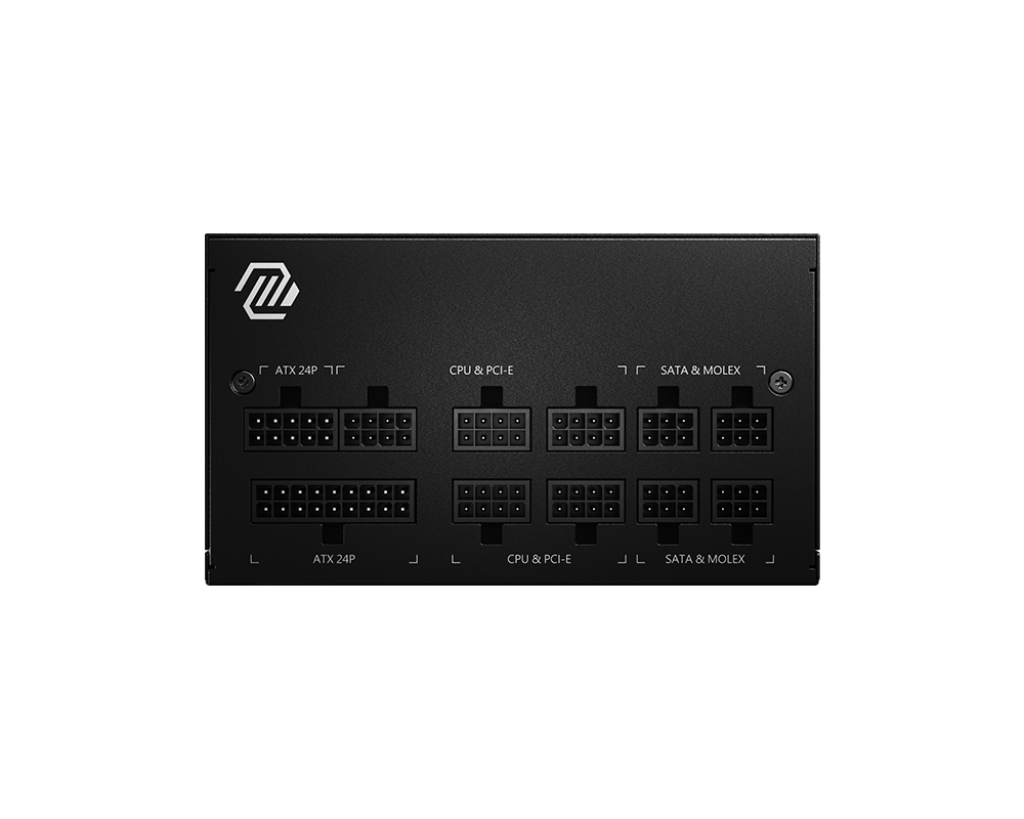

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (8-pin) | No |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6-pin) | 0 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12+4 pin) | 0 |
| PCI Express power connectors (12-pin) | 0 |
| PCI Express power connectors (8-pin) | 0 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | No |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | No |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

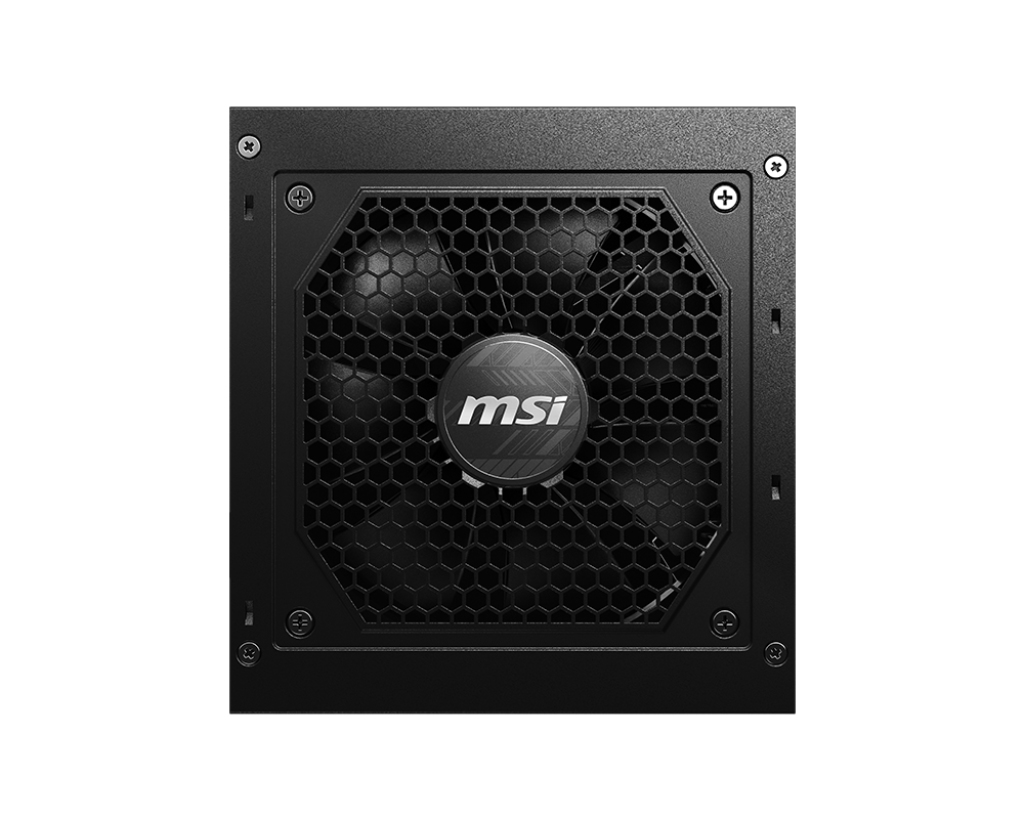

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Illumination | No |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
