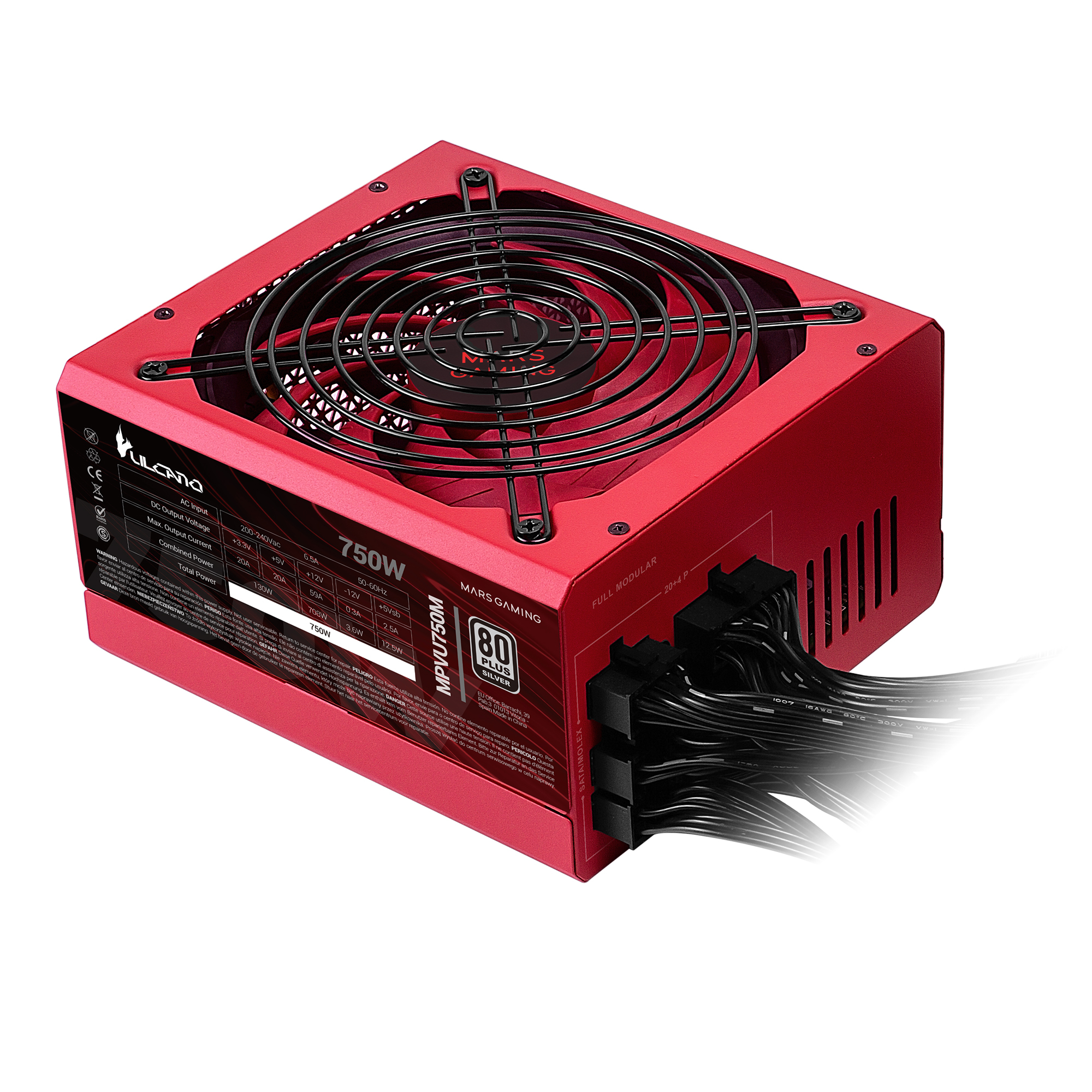

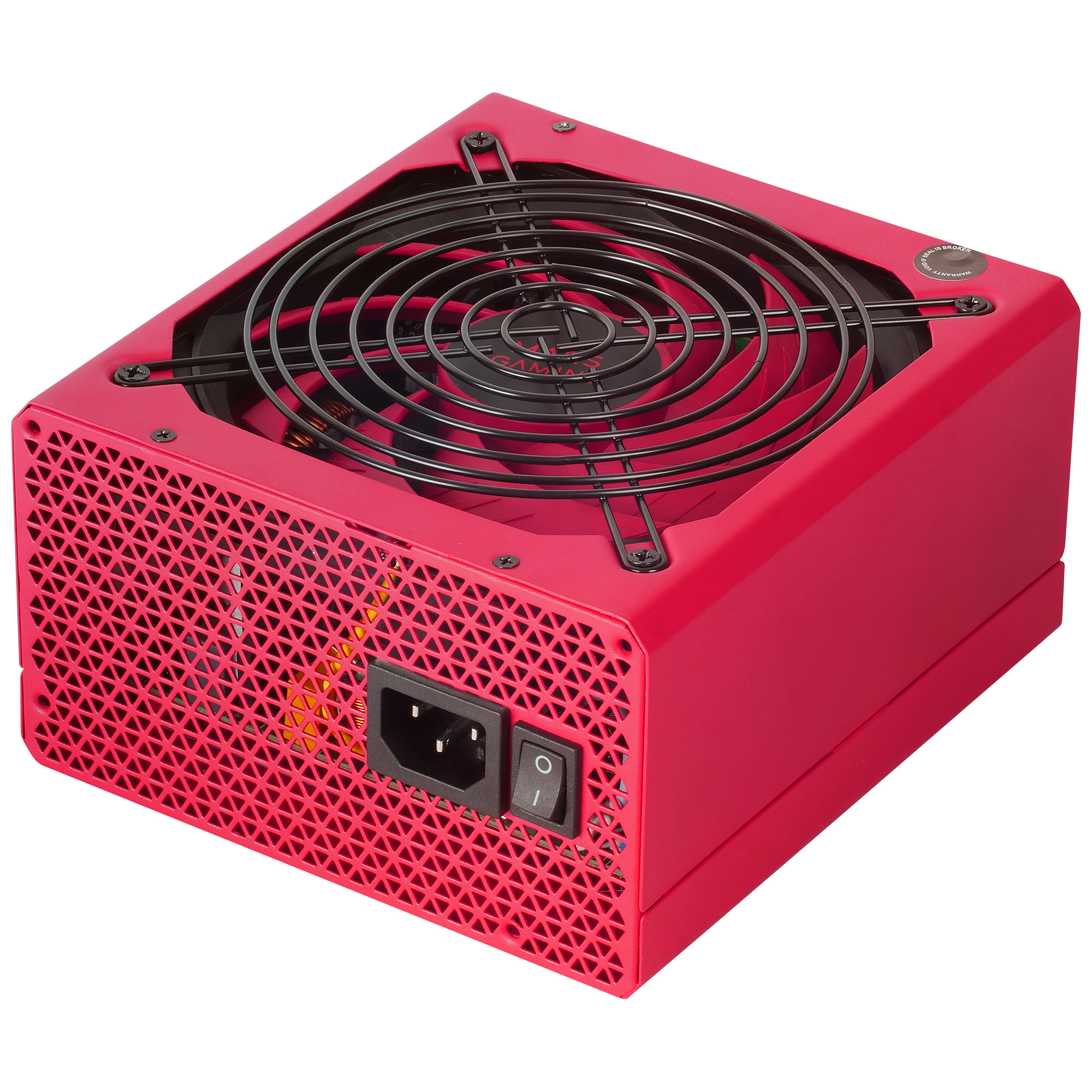

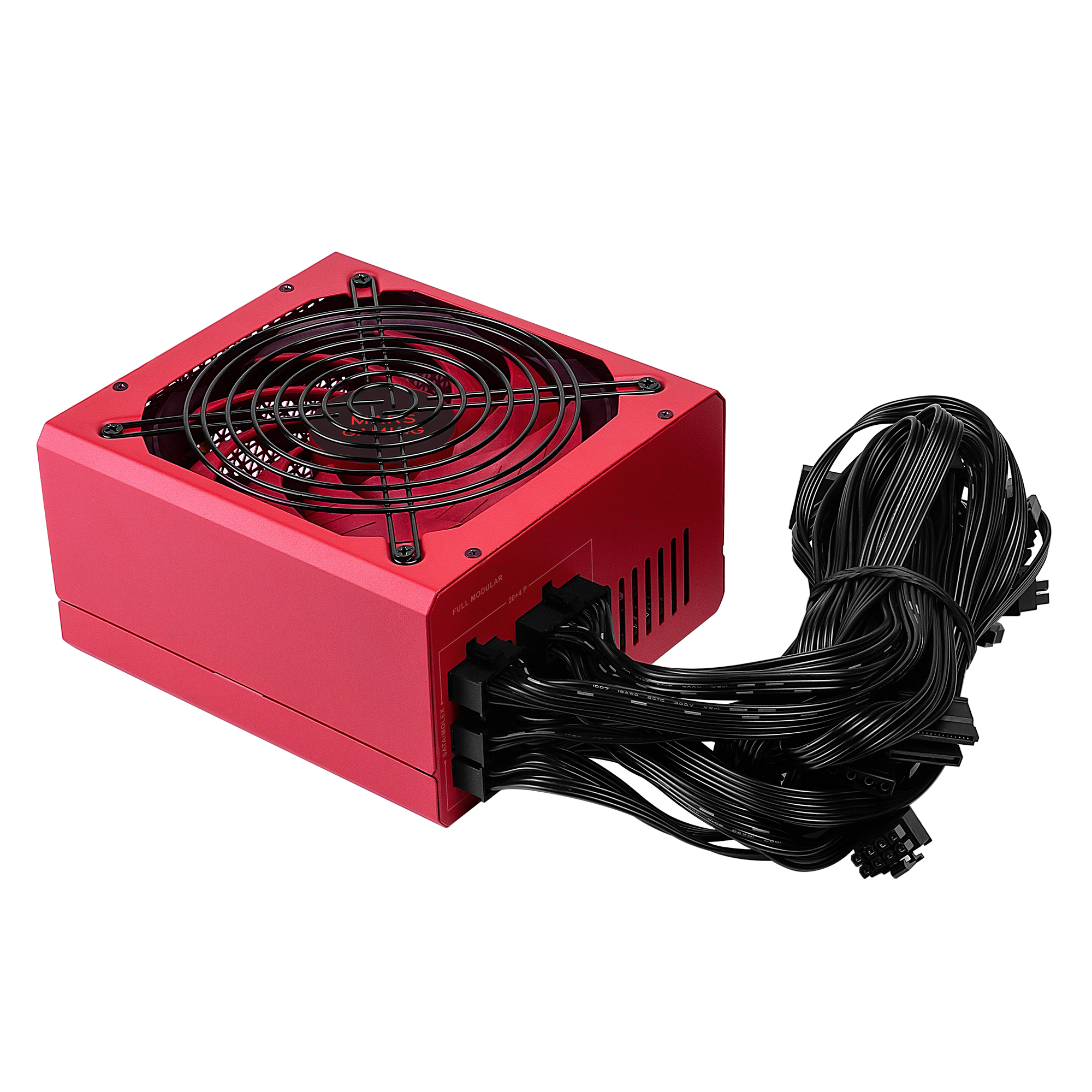

MPVU750M power supply unit
750 W 24-pin ATX ATX Red
Model MPVU750MEAN 8435693104308
46 specifications
- Noise14 dB
- Weight1.6 kg
- ColourRed
- Total power750 W
- Motherboard power connector24-pin ATX
- PurposePC
Overview
- Noise
- 14 dB
- Weight
- 1.6 kg
- Colour
- Red
- Total power
- 750 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Brand
- Mars Gaming
- Category
- Power Supply Unit
- Model
- MPVU750M
- Part number
- MPVU750M
- EAN / UPC
- 8435693104308
- Also known as
- Mars Gaming MPVU750M power supply unit 750 W 24-pin ATX ATX Red
Specifications
46 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 6.5 A |
| Power Factor Correction (PFC) type | Active |
| Number of +12V rail(s) | 1 |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 708 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 59 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 87% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Silver |
| Noise level | 14 dB |
| Bearing technology | FDB |
Design
| Specification | Value |
|---|---|
| Product colour | Red |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Certification | ATX12V, CE, ROHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 85 mm |
| Weight | 1.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 136 mm |
| Package depth | 206 mm |
| Package height | 258 mm |
| Package weight | 1.83 kg |
Technical details
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
