MPIII850W power supply unit
850 W 20+4 pin ATX ATX White
Model MPIII850WEAN 8435693106821
47 specifications
- Noise14 dB
- Weight1.55 kg
- ColourWhite
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 14 dB
- Weight
- 1.55 kg
- Colour
- White
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Mars Gaming
- Category
- Power Supply Unit
- Model
- MPIII850W
- Part number
- MPIII850W
- EAN / UPC
- 8435693106821
- Also known as
- Mars Gaming MPIII850W power supply unit 850 W 20+4 pin ATX ATX White
Specifications
47 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 7 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 200 W |
| Combined power (+12V) | 720 W |
| Combined power (+5V) | 200 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 60 A |
| Max output current (+5V) | 27 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |

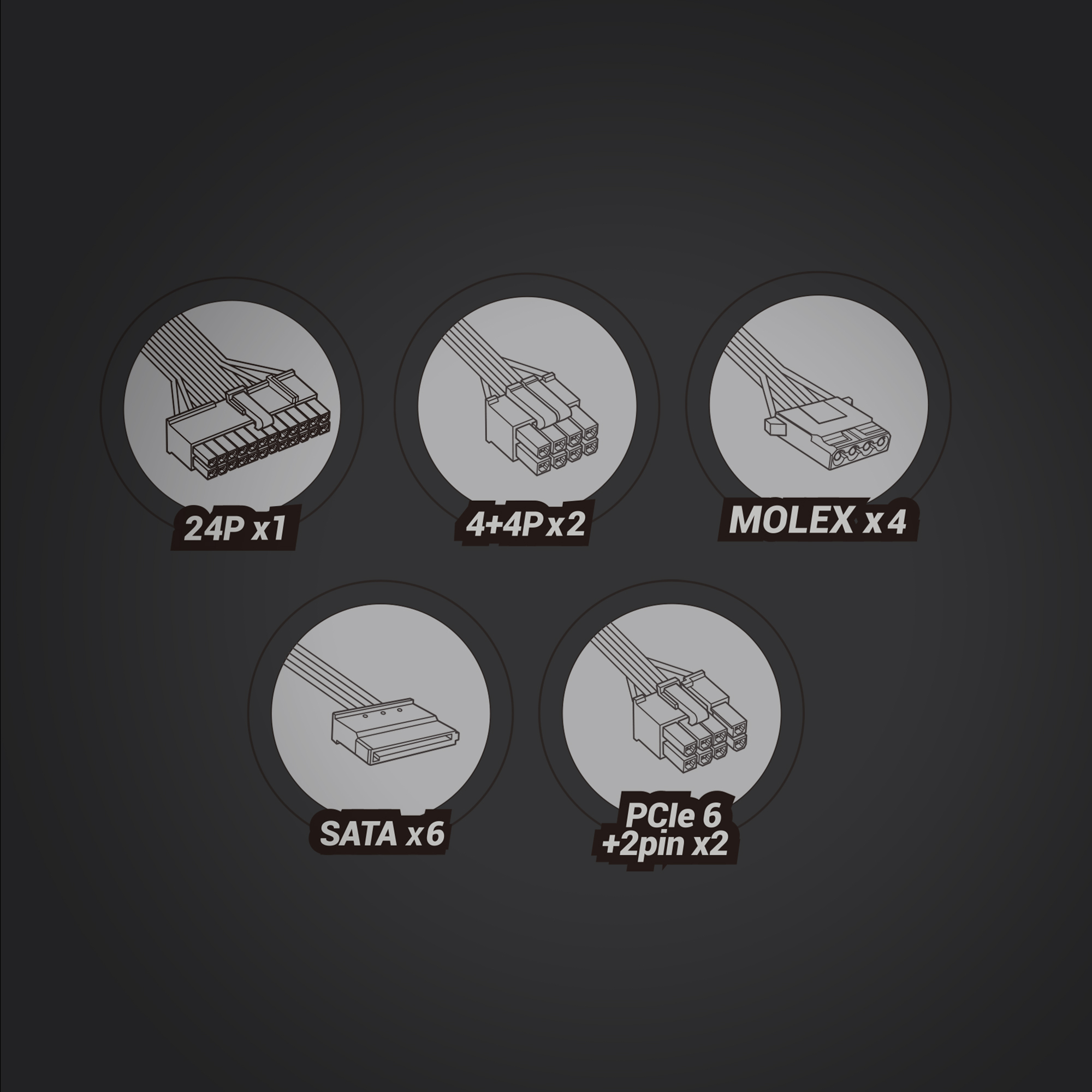

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | No |
| Silent mode | Yes |
| Noise level | 14 dB |
| Bearing technology | FDB |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Certification | ATX12V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 145 mm |
| Height | 85 mm |
| Weight | 1.55 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 125 mm |
| Package depth | 238 mm |
| Package height | 205 mm |
| Package weight | 1.71 kg |
| Package type | Box |
