MPIII750 PC Power Supply
750W ATX 85% Efficiency 5 Year Warranty
Model MPIII750EAN 8435693100225
34 specifications
- Noise14 dB
- Weight1.6 kg
- ColourBlack, Red
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 14 dB
- Weight
- 1.6 kg
- Colour
- Black, Red
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Mars Gaming
- Category
- Power Supply Unit
- Model
- MPIII750
- Part number
- MPIII750
- EAN / UPC
- 8435693100225
- Also known as
- Mars Gaming MPIII750 PC Power Supply 750W ATX 85% Efficiency 5 Year Warranty
Specifications
34 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 50 A |
| Max output current (+5V) | 27 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |

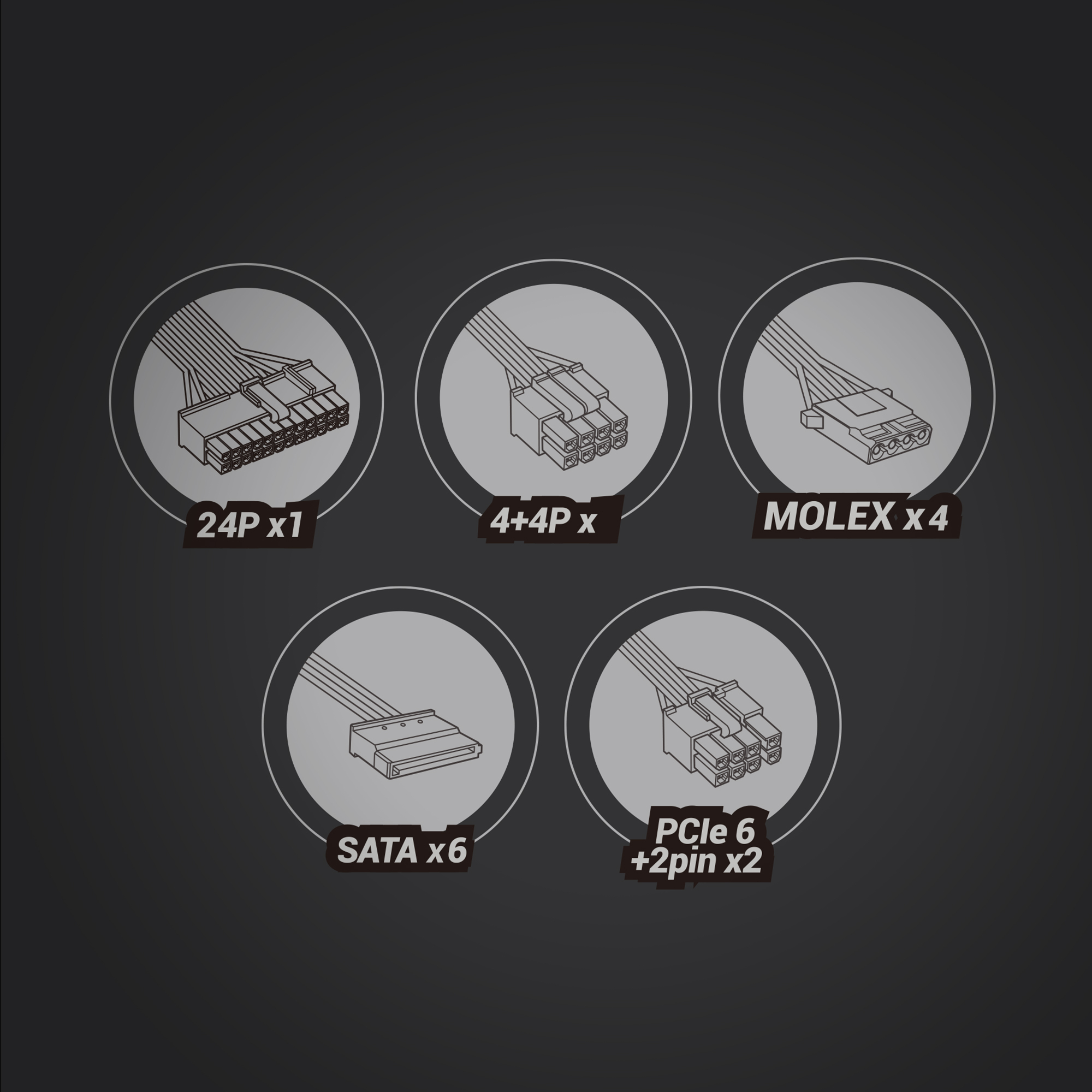

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 4 |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | No |
| Noise level | 14 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Red |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Certification | ATX12V, Haswell Ready, CE, ROHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 145 mm |
| Height | 85 mm |
| Weight | 1.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 125 mm |
| Package depth | 238 mm |
| Package height | 205 mm |
| Package weight | 1.65 kg |
