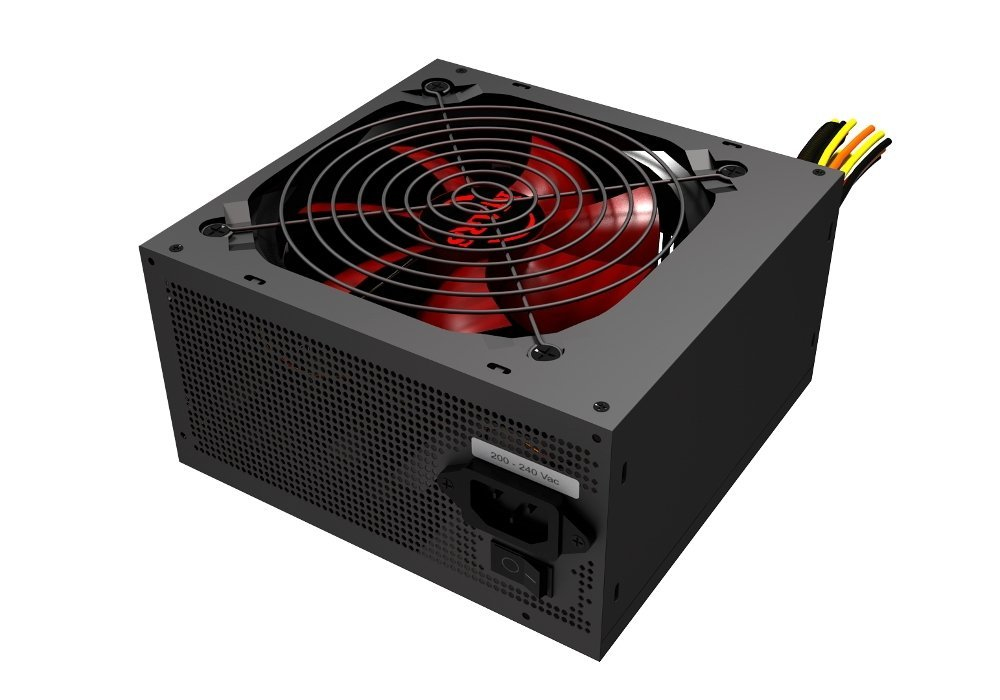

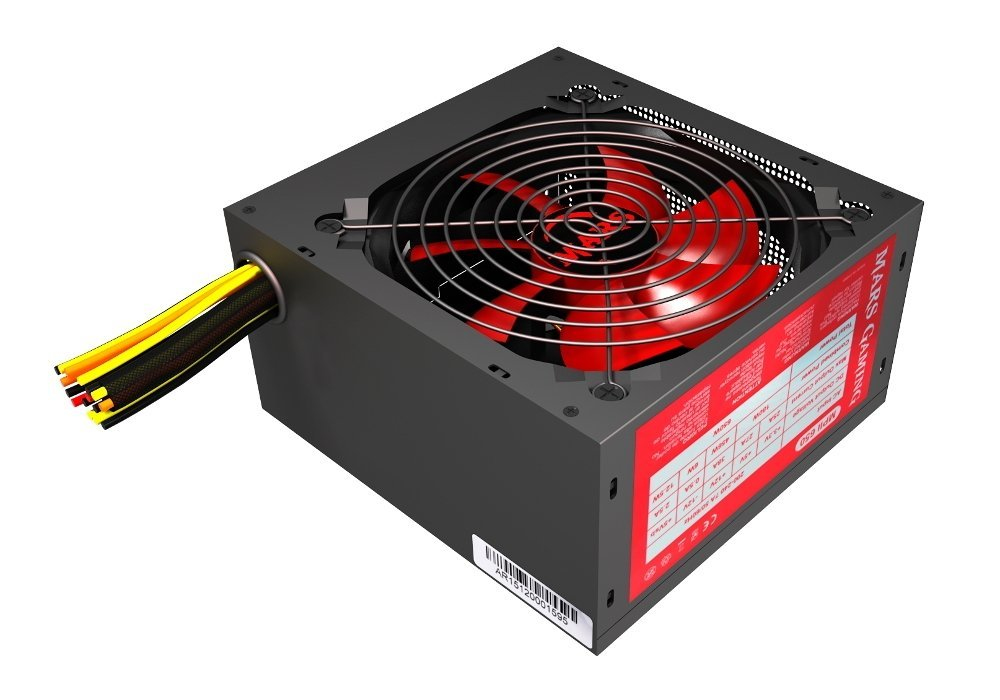

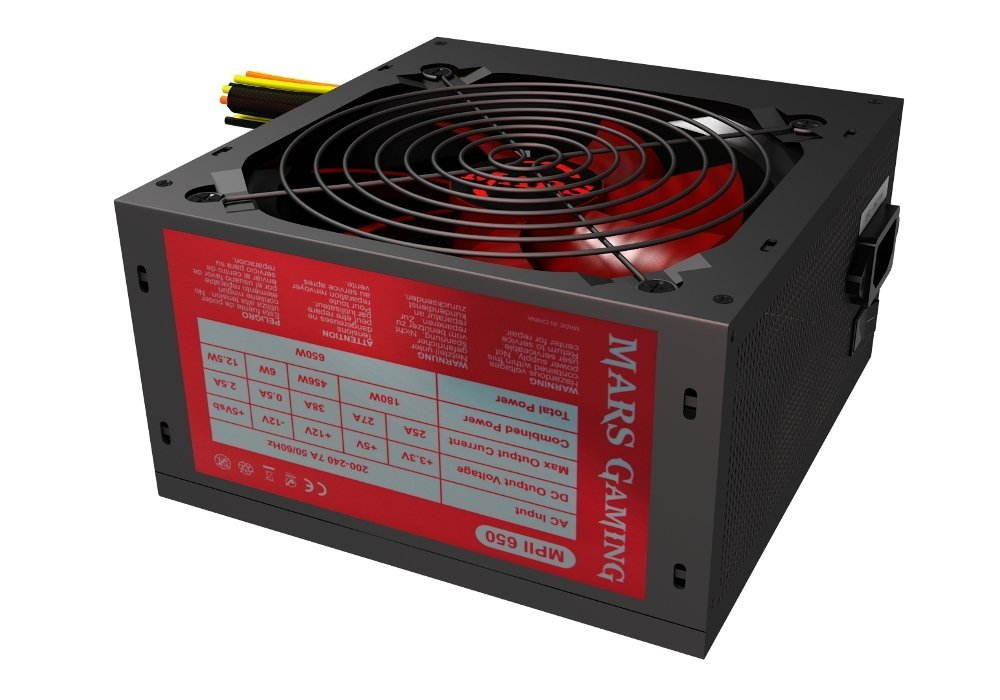

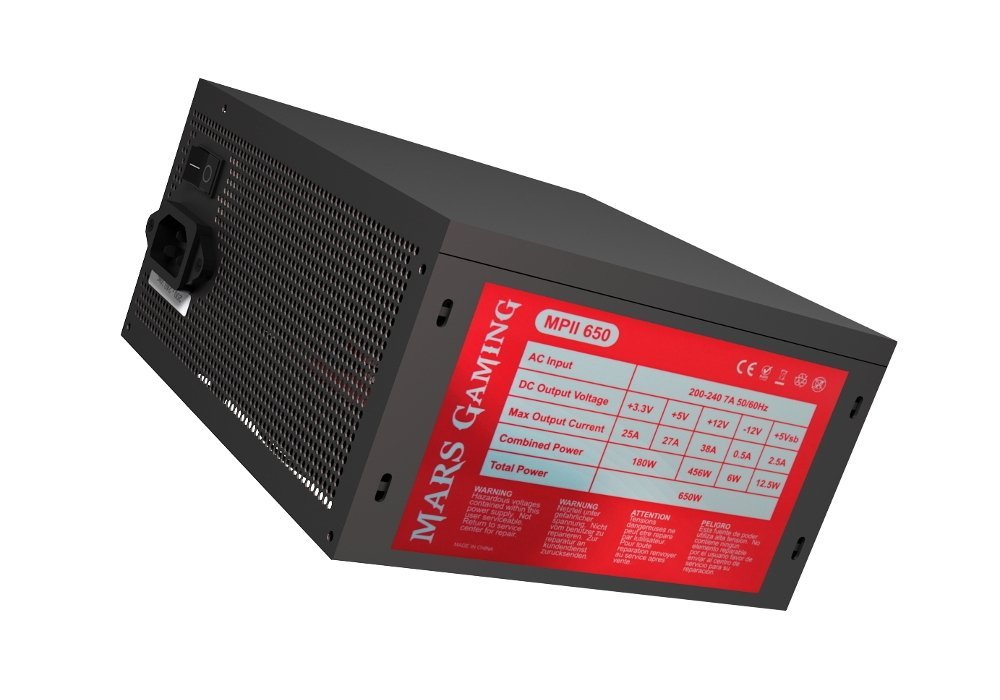

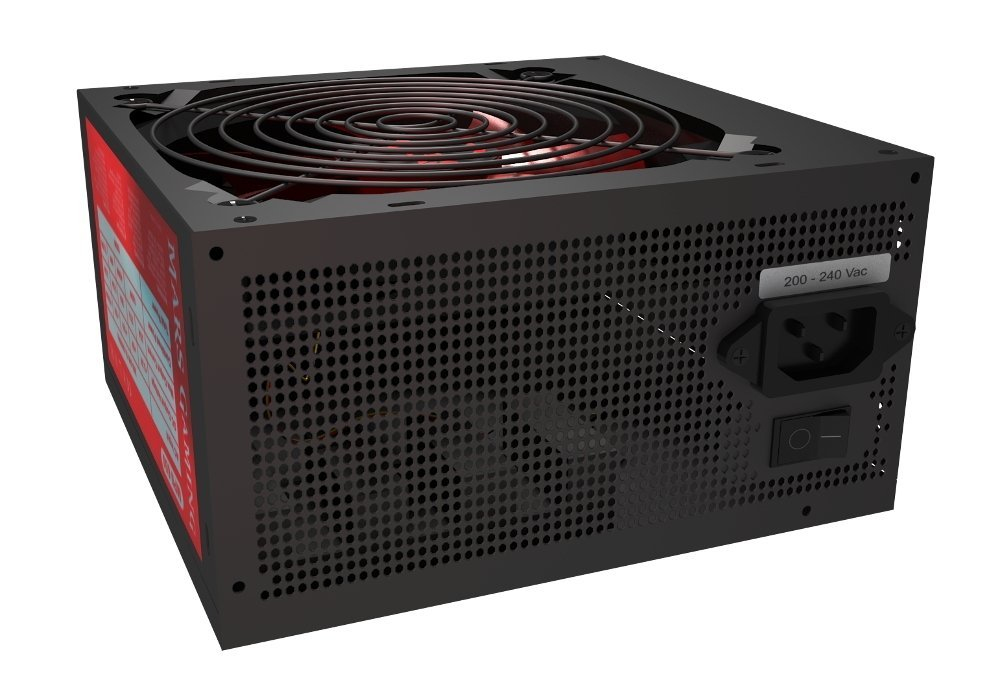

Mars Gaming MPII650 power supply unit
650 W 20+4 pin ATX ATX Black, Red
Model MPII650EAN 4713105960280
37 specifications
- Weight1.37 kg
- ColourBlack, Red
- Total power650 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 1.37 kg
- Colour
- Black, Red
- Total power
- 650 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- Mars Gaming
- Category
- Power Supply Unit
- Model
- MPII650
- Part number
- MPII650
- EAN / UPC
- 4713105960280
- Also known as
- Mars Gaming MPII650 power supply unit 650 W 20+4 pin ATX ATX Black, Red
Specifications
37 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 230 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 180 W |
| Combined power (+12V) | 456 W |
| Combined power (+5V) | 180 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 38 A |
| Max output current (+5V) | 27 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 2 |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 0 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Red |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.37 kg |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 240 pc(s) |
| Products per master (outer) case | 6 pc(s) |
Other features
| Specification | Value |
|---|---|
| Case colour | Black |
