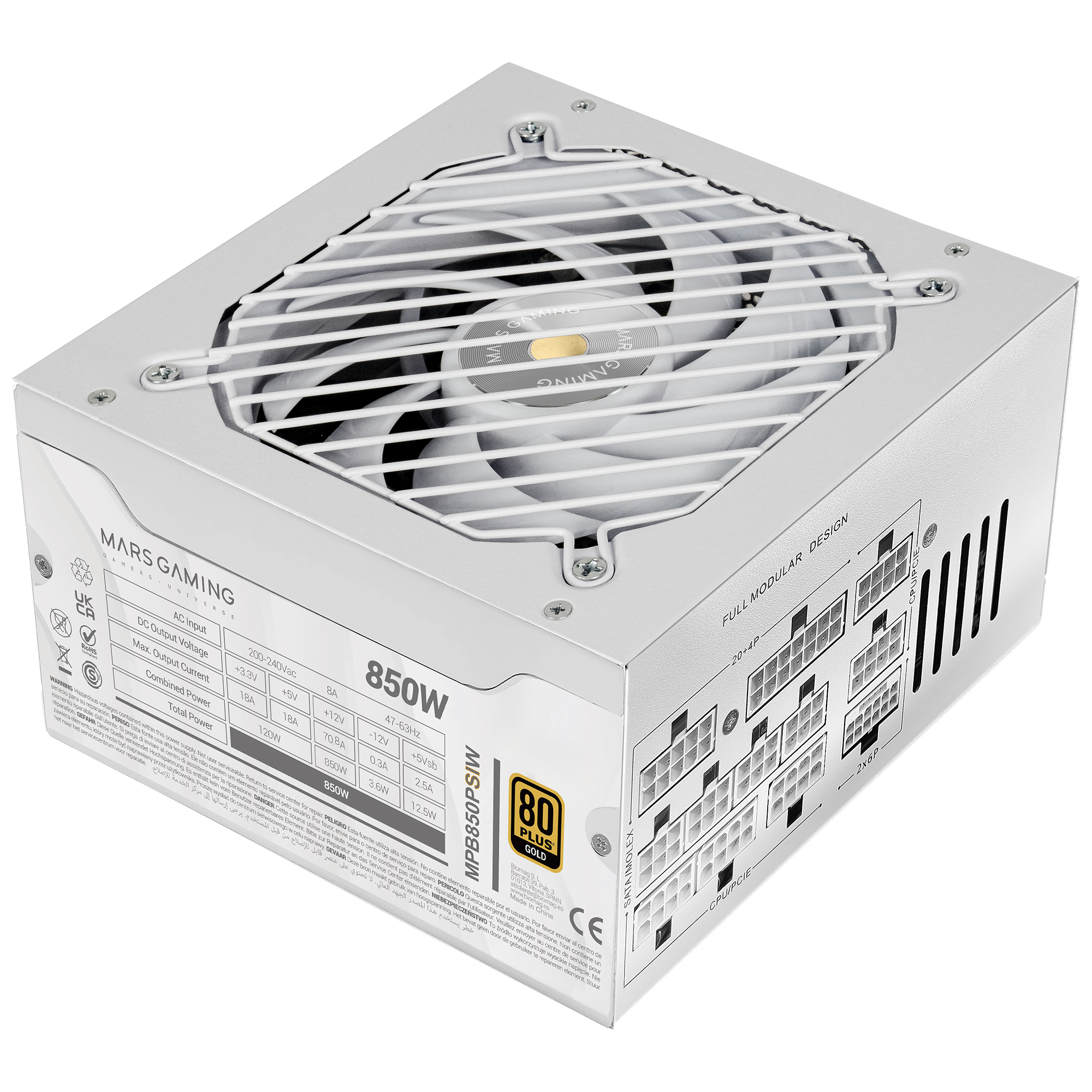

MPB850PSIW power supply unit
850 W 24-pin ATX ATX White
Model MPB850PSIWEAN 8435693111498
47 specifications
- Noise12 dB
- Weight1.7 kg
- ColourWhite
- Total power850 W
- Motherboard power connector24-pin ATX
- PurposePC
Overview
- Noise
- 12 dB
- Weight
- 1.7 kg
- Colour
- White
- Total power
- 850 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Brand
- Mars Gaming
- Category
- Power Supply Unit
- Model
- MPB850PSIW
- Part number
- MPB850PSIW
- EAN / UPC
- 8435693111498
- Also known as
- Mars Gaming MPB850PSIW power supply unit 850 W 24-pin ATX ATX White
Specifications
47 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 8 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 90% |
| Power protection features | No load operation, Over current, Over power, Over total voltage, Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (12-pin) | 1 |
| ATX Power connector (24-pin) | Yes |

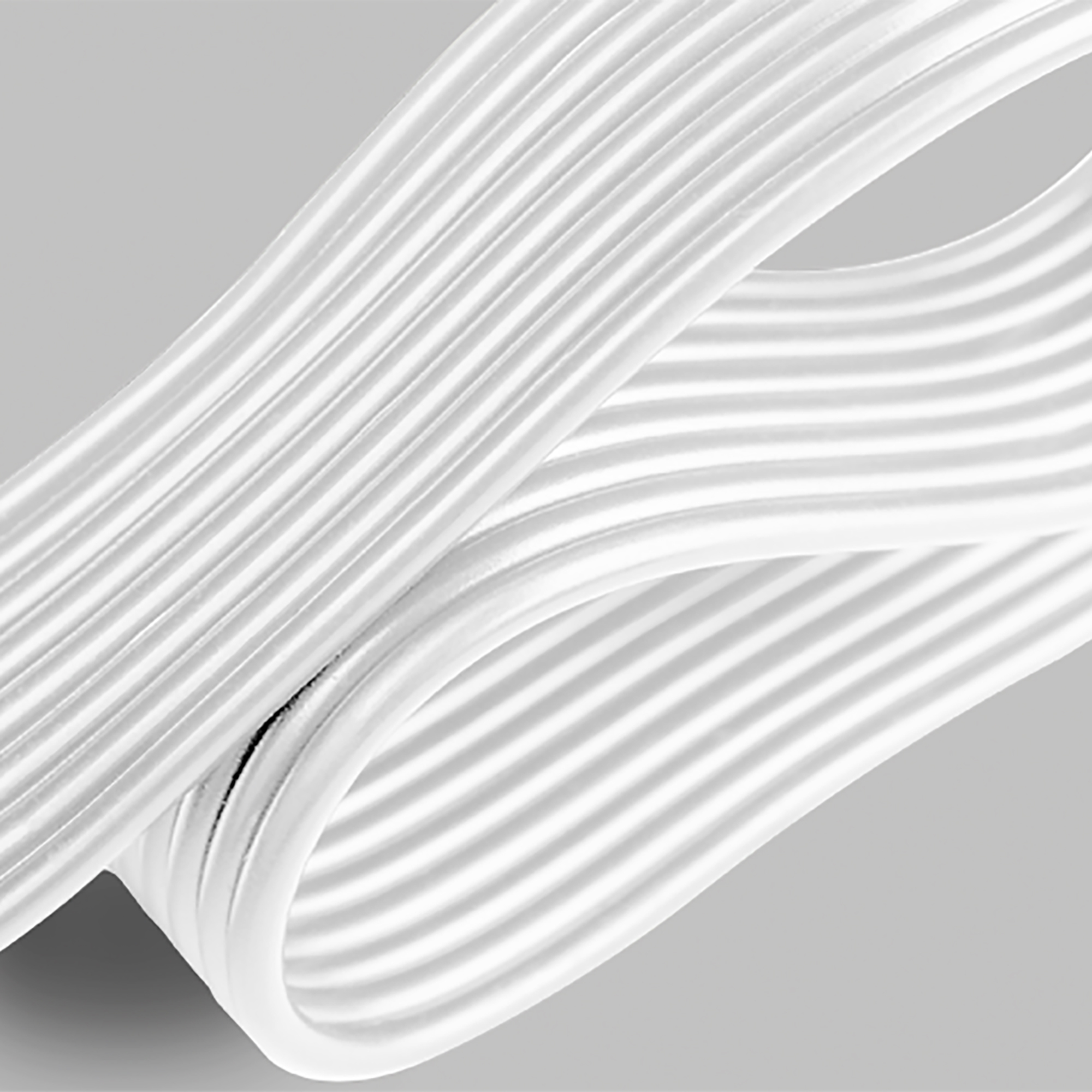

| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Noise level | 12 dB |
| Bearing technology | FDB |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 85 mm |
| Weight | 1.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 206 mm |
| Package depth | 136 mm |
| Package height | 258 mm |
| Package type | Box |
