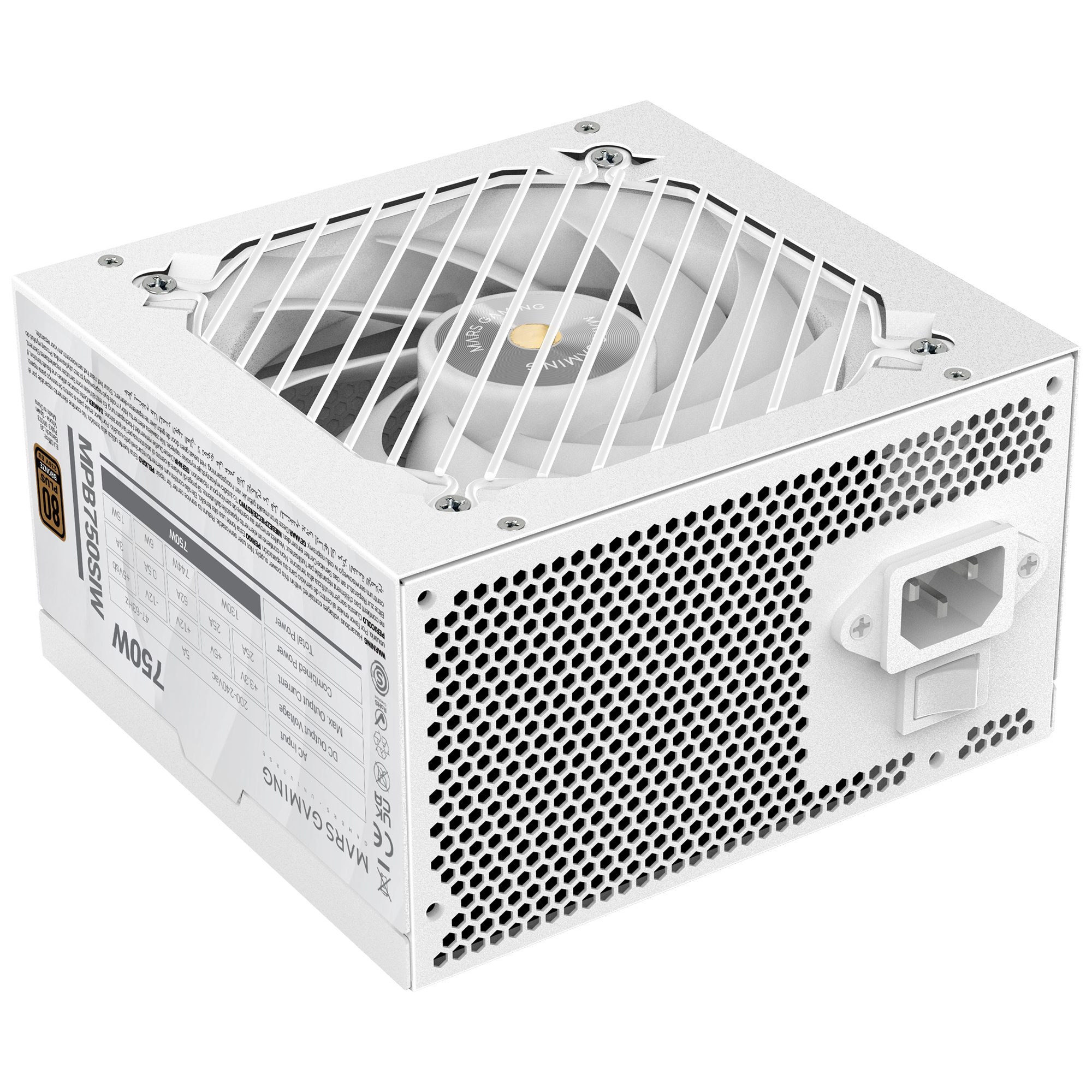

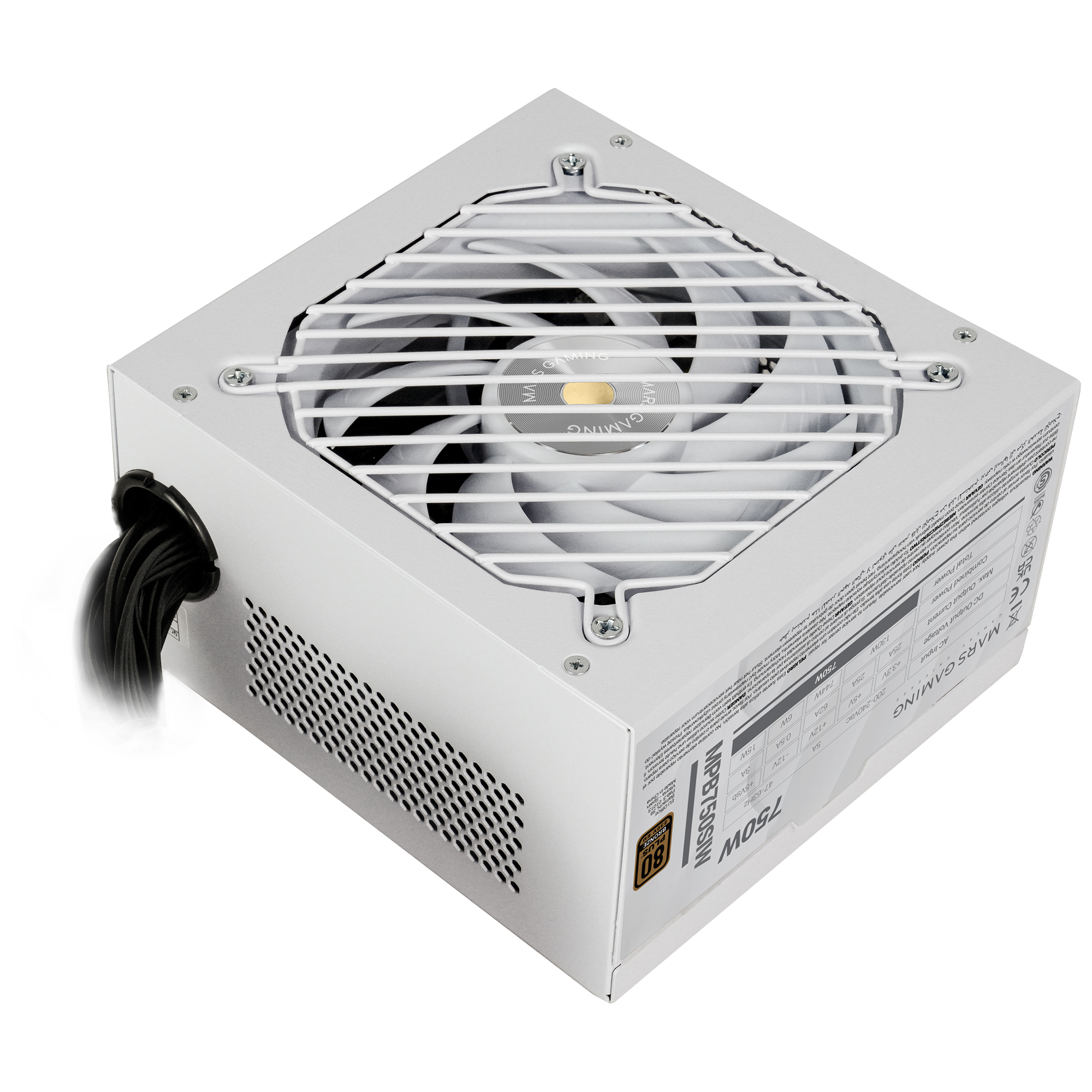

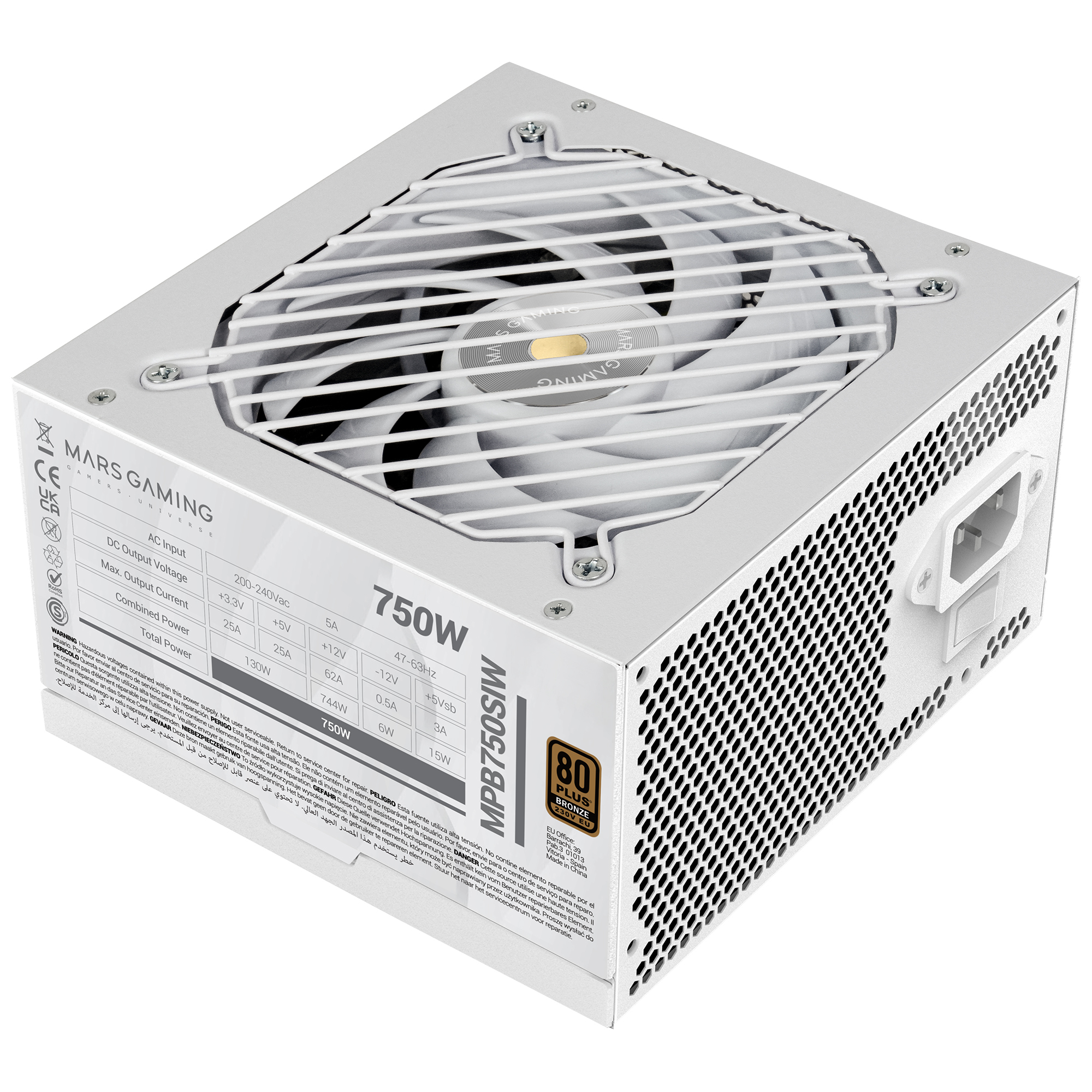

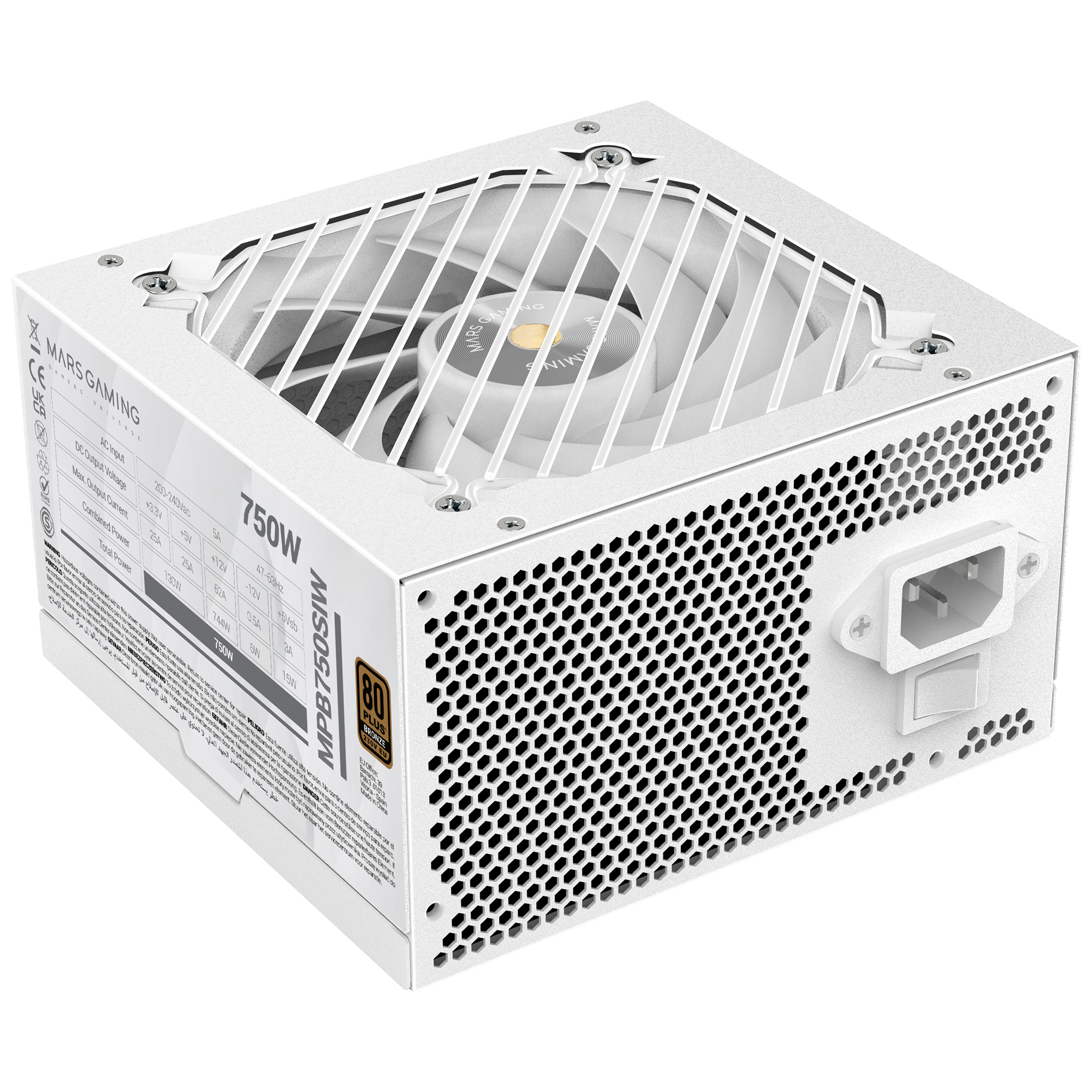

MPB750SIW power supply unit
750 W 24-pin ATX ATX White
Model MPB750SIWEAN 8435693108351
43 specifications
- Noise12 dB
- Weight1.6 kg
- ColourWhite
- Total power750 W
- Motherboard power connector24-pin ATX
- PurposePC
Overview
- Noise
- 12 dB
- Weight
- 1.6 kg
- Colour
- White
- Total power
- 750 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Brand
- Mars Gaming
- Category
- Power Supply Unit
- Model
- MPB750SIW
- Part number
- MPB750SIW
- EAN / UPC
- 8435693108351
- Also known as
- Mars Gaming MPB750SIW power supply unit 750 W 24-pin ATX ATX White
Specifications
43 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 744 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 62 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Number of EPS connectors | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Noise level | 12 dB |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 145 mm |
| Height | 85 mm |
| Weight | 1.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 238 mm |
| Package depth | 125 mm |
| Package height | 205 mm |
