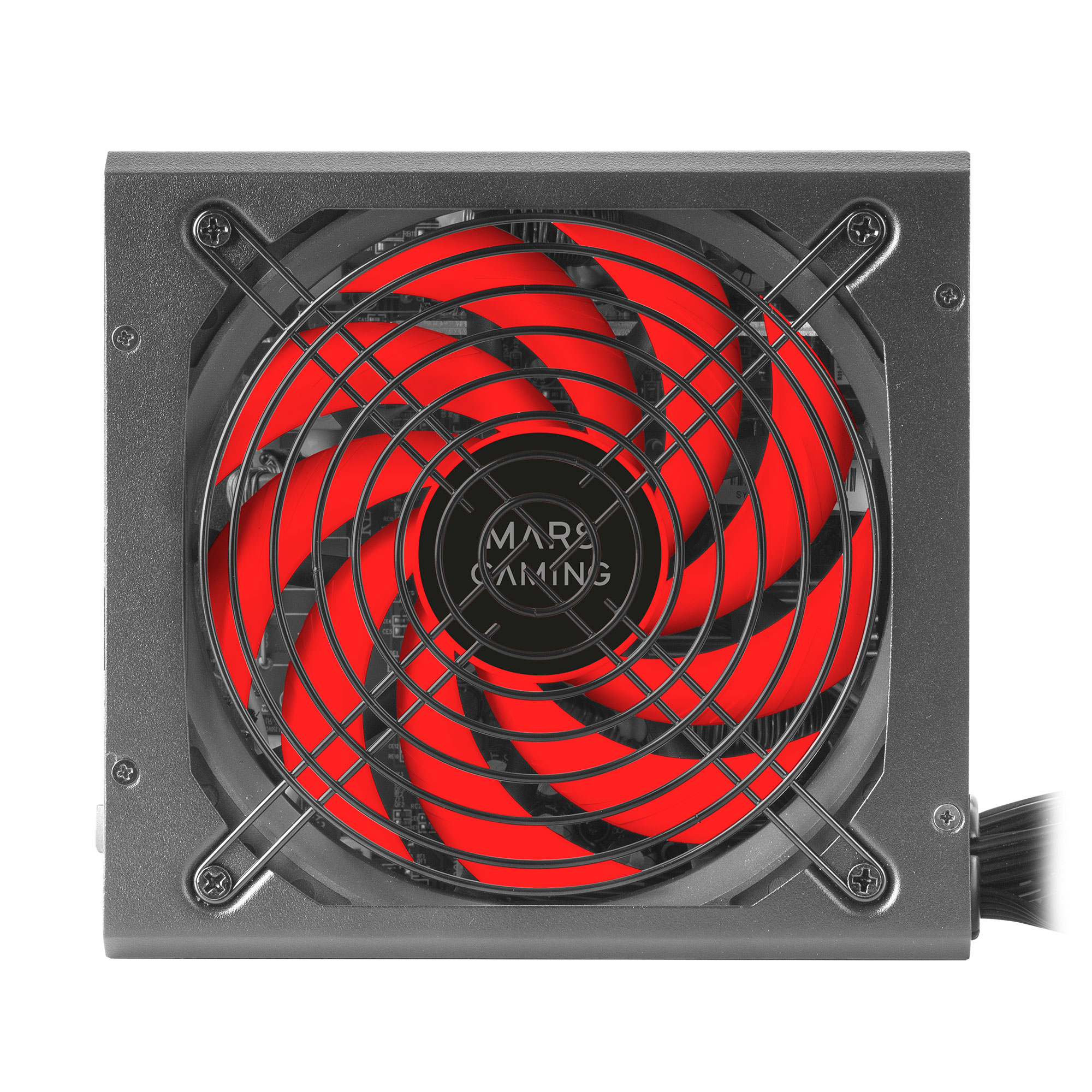

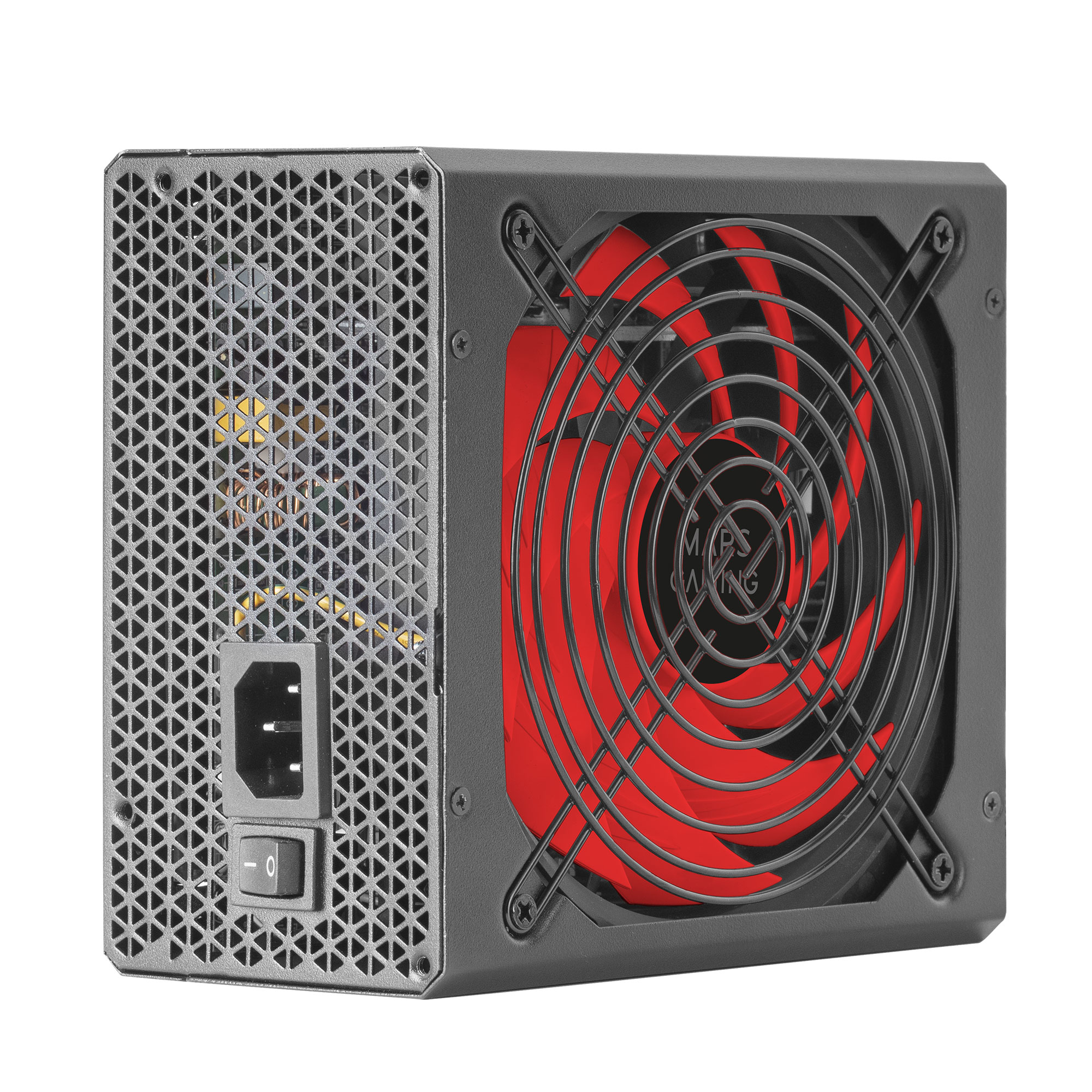

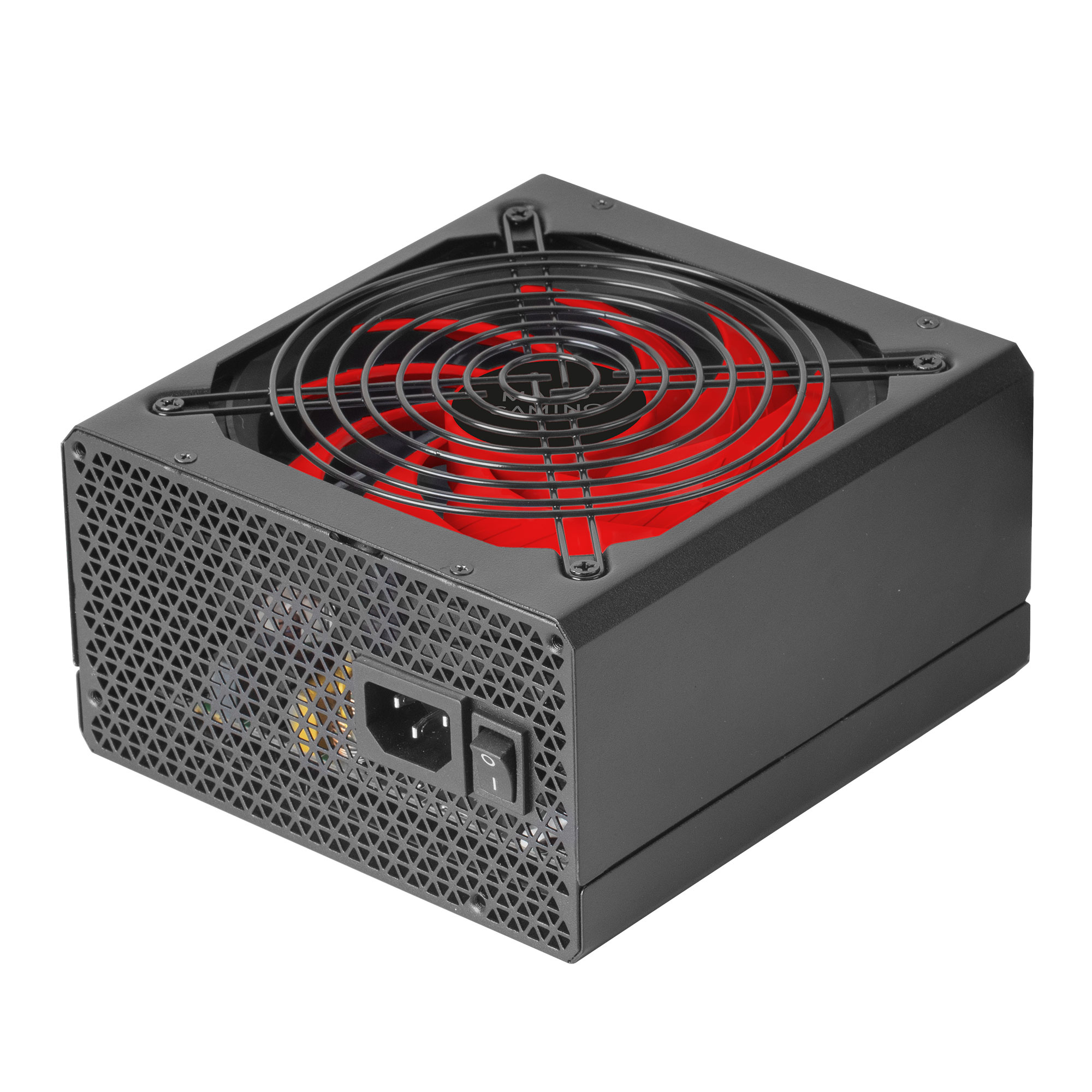

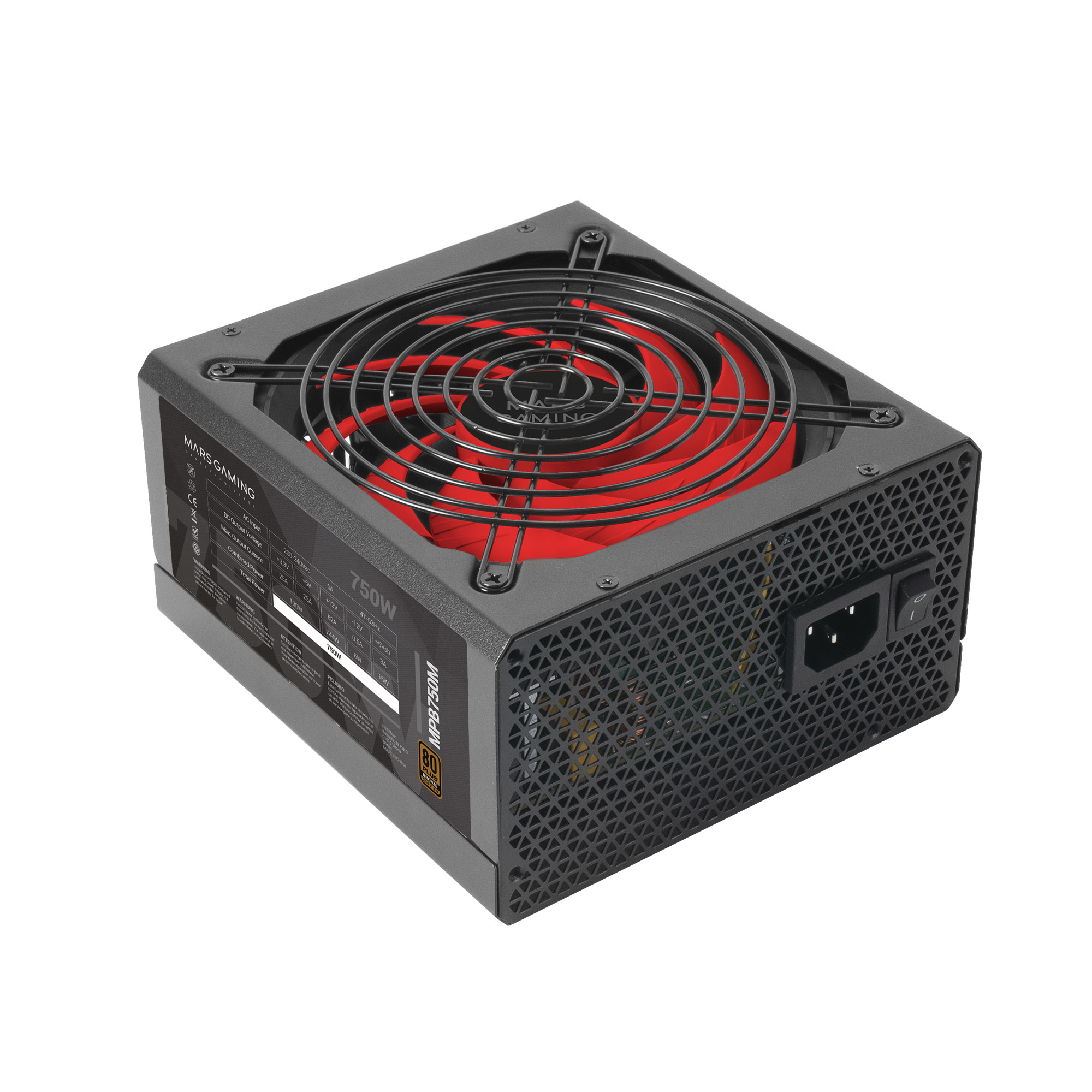

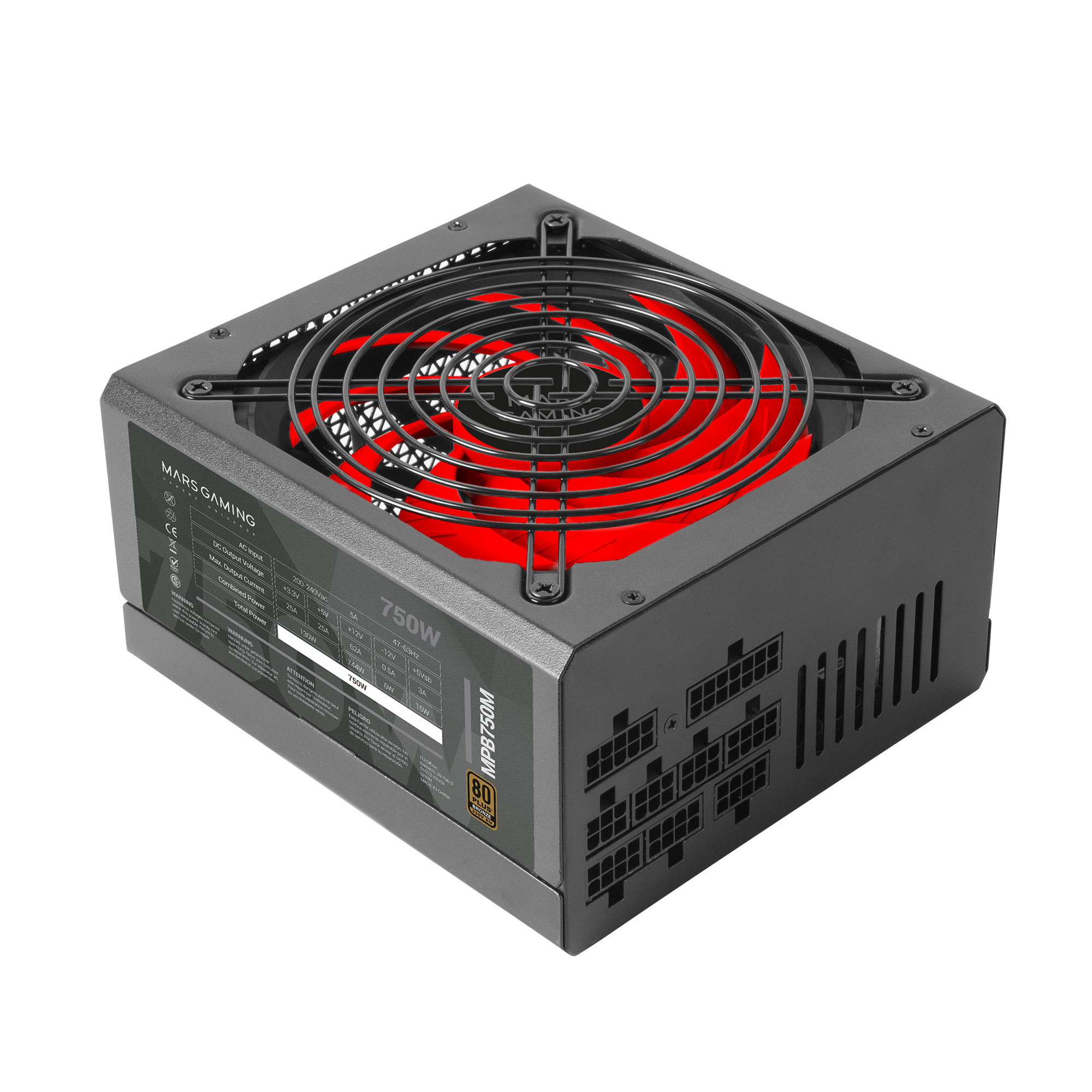

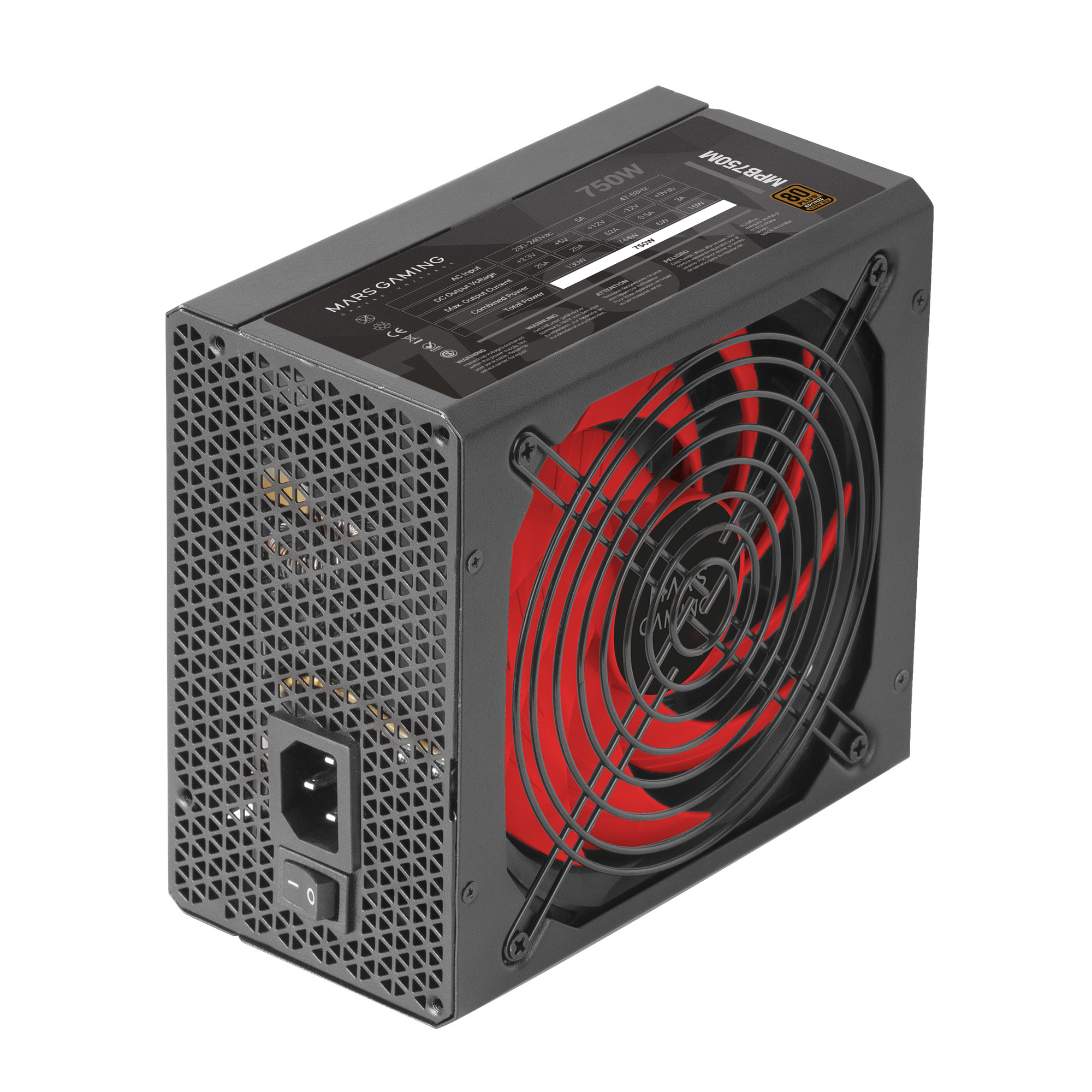

MPB750M Modular ATX
750W Power Supply 6 Years Warranty 80Plus Bronze 230V Silent AI-RPM Technology 90% Efficiency Black
Model MPB750MEAN 8435693103172
38 specifications
- Noise14 dB
- Weight1.65 kg
- ColourBlack
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 14 dB
- Weight
- 1.65 kg
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Mars Gaming
- Category
- Power Supply Unit
- Model
- MPB750M
- Part number
- MPB750M
- EAN / UPC
- 8435693103172
- Also known as
- Mars Gaming MPB750M Modular ATX 750W Power Supply 6 Years Warranty 80Plus Bronze 230V Silent AI-RPM Technology 90% Efficiency Black
Specifications
38 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 744 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 62 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Noise level | 14 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 14 cm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 85 mm |
| Weight | 1.65 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 205 mm |
| Package depth | 134 mm |
| Package height | 260 mm |
| Package weight | 1.75 kg |
