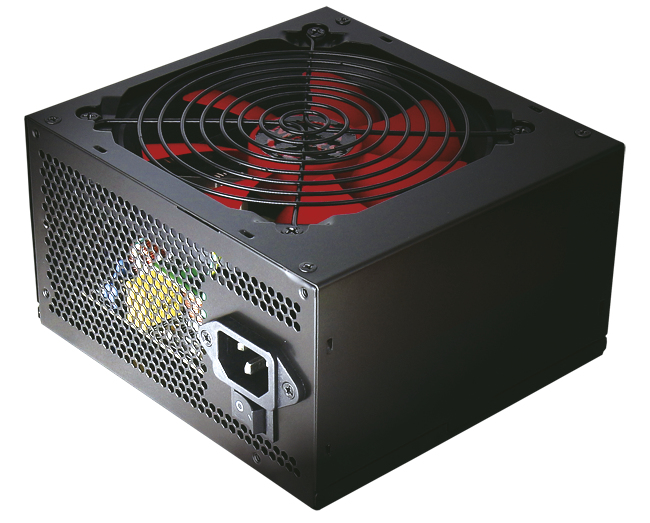

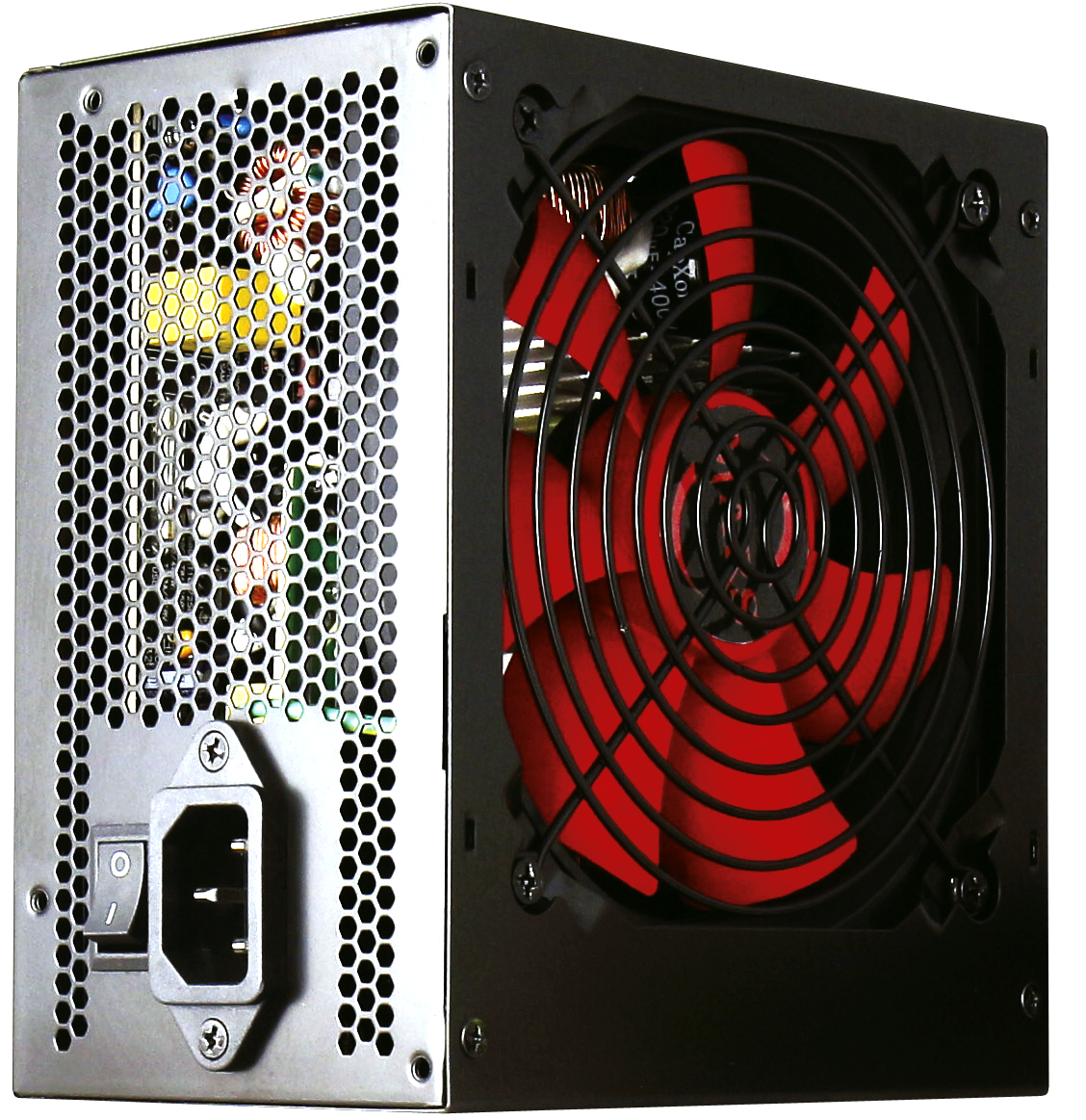

Mars Gaming MP700 power supply unit
700 W 20+4 pin ATX ATX Black
Model MP700EAN 880080001124
34 specifications
- Noise14 dB
- Weight1.3 kg
- ColourBlack
- Total power700 W
- Motherboard power connector20+4 pin ATX
- Power supply unit (PSU) form factorATX
Overview
- Noise
- 14 dB
- Weight
- 1.3 kg
- Colour
- Black
- Total power
- 700 W
- Motherboard power connector
- 20+4 pin ATX
- Power supply unit (PSU) form factor
- ATX
- Brand
- Mars Gaming
- Category
- Power Supply Unit
- Model
- MP700
- Part number
- MP700
- EAN / UPC
- 880080001124, 4713105960099
- Also known as
- Mars Gaming MP700 power supply unit 700 W 20+4 pin ATX ATX Black
Specifications
34 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | +12V,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 200 W |
| Combined power (+12V) | 552 W |
| Combined power (+5V) | 200 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 46 A |
| Max output current (+5V) | 27 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 99% |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 4 |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| Noise level | 14 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 85 mm |
| Weight | 1.3 kg |
