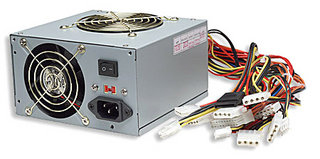

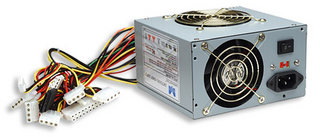

Manhattan 174008 power supply unit
420 W 20+4 pin ATX ATX White
Model 174008
29 specifications
- Weight1.52 kg
- ColourWhite
- Total power420 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 1.52 kg
- Colour
- White
- Total power
- 420 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- Manhattan
- Category
- Power Supply Unit
- Model
- 174008
- Part number
- 174008
- Also known as
- Manhattan 174008 power supply unit 420 W 20+4 pin ATX ATX White
Specifications
29 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 420 W |
| AC input voltage | 90 - 220 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 9 A |
| Maximum input current (@110V) | +12V,+3.3V,+5V,+5Vsb,-12V,-5V |
| Efficiency | 70% |
| Power protection features | Short circuit |

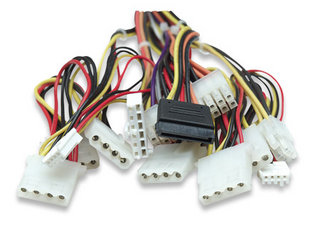

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 1 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6-pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | 40 - 85 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, UL, FCC, TUV, CUL, CB, Nemko |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 84 mm |
| Weight | 1.52 kg |
