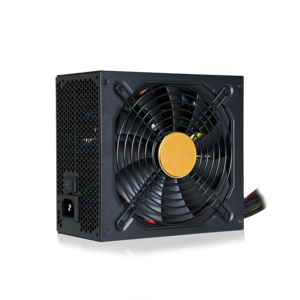

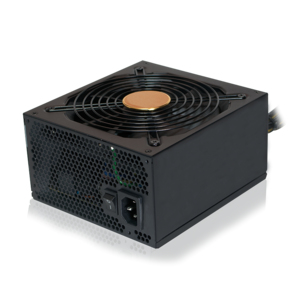

LogiLink PA0090 power supply unit
750 W 20-pin ATX Black
Model PA0090EAN 4052792031485
40 specifications
- Weight1.85 kg
- ColourBlack
- Total power750 W
- Motherboard power connector20-pin ATX
- PurposePC
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 1.85 kg
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 20-pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- LogiLink
- Category
- Power Supply Unit
- Model
- PA0090
- Part number
- PA0090
- EAN / UPC
- 4052792031485
- Also known as
- LogiLink PA0090 power supply unit 750 W 20-pin ATX Black
Specifications
40 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| Input current | 10 A |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 62.5 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|

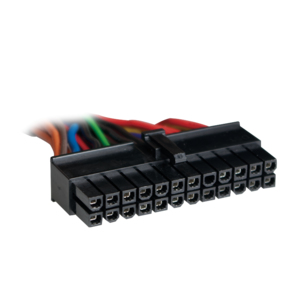

| Motherboard power connector | 20-pin ATX |

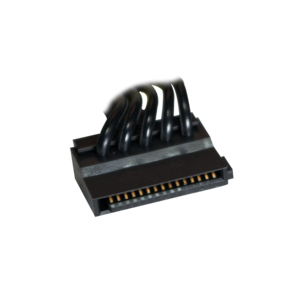

| Number of SATA power connectors | 8 |
| PCI Express power connectors (6-pin) | 0 |

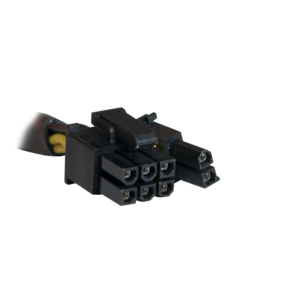

| PCI Express power connectors (6+2 pin) | 4 |
| CPU P4 connector (4-pin) | 0 |

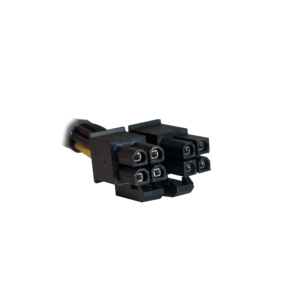

| CPU power connector (4+4 pin) | Yes |

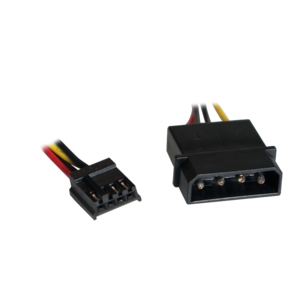

| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| CPU power connectors (8-pin) | 0 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, TUV, CB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 1.85 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 363 mm |
| Package depth | 223 mm |
| Package height | 100 mm |
| Package weight | 2.8 kg |
