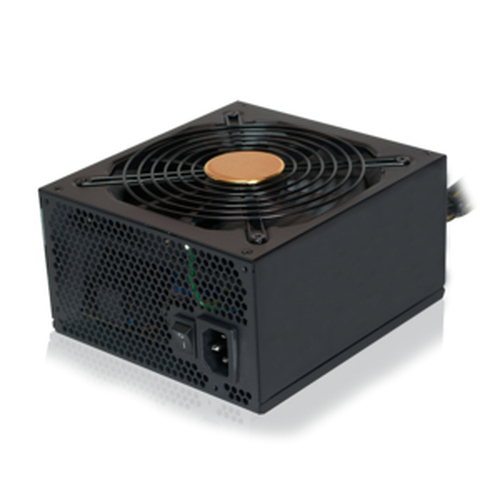

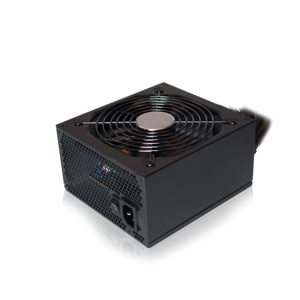

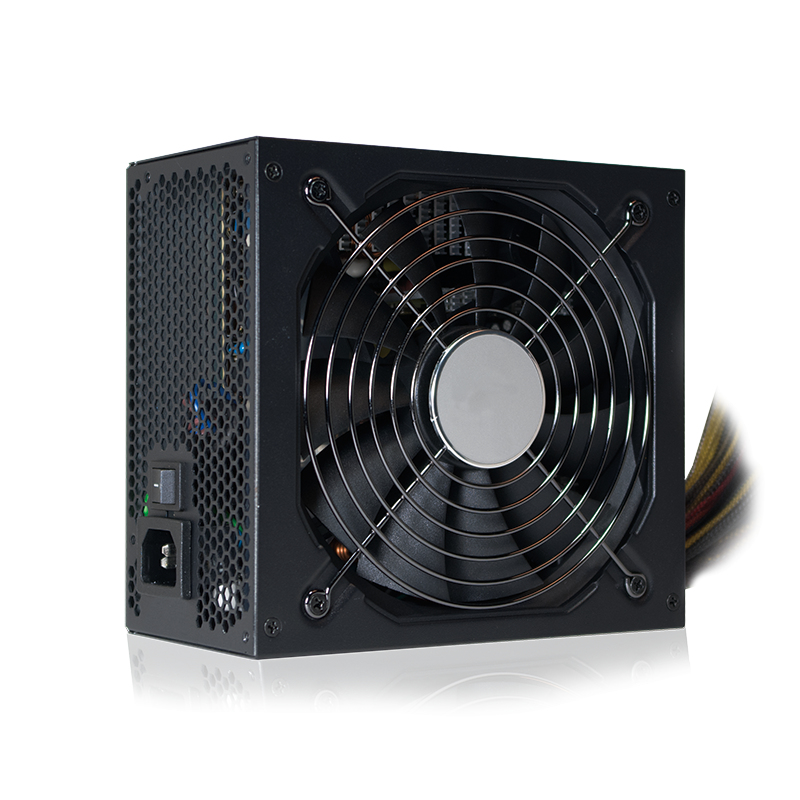

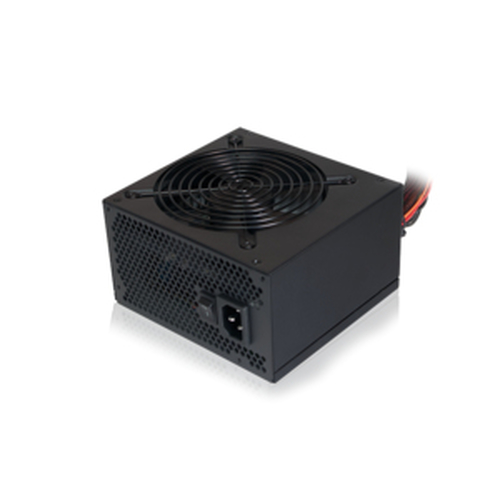

LogiLink PA0089 power supply unit
700 W 24-pin ATX Black
Model PA0089EAN 4052792031478
42 specifications
- Weight1.75 kg
- ColourBlack
- Total power700 W
- Motherboard power connector24-pin ATX
- PurposePC
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 1.75 kg
- Colour
- Black
- Total power
- 700 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- LogiLink
- Category
- Power Supply Unit
- Model
- PA0089
- Part number
- PA0089
- EAN / UPC
- 4052792031478
- Also known as
- LogiLink PA0089 power supply unit 700 W 24-pin ATX Black
Specifications
42 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 6.3 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 630 W |
| Combined power (+5V) | 130 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 52.5 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|

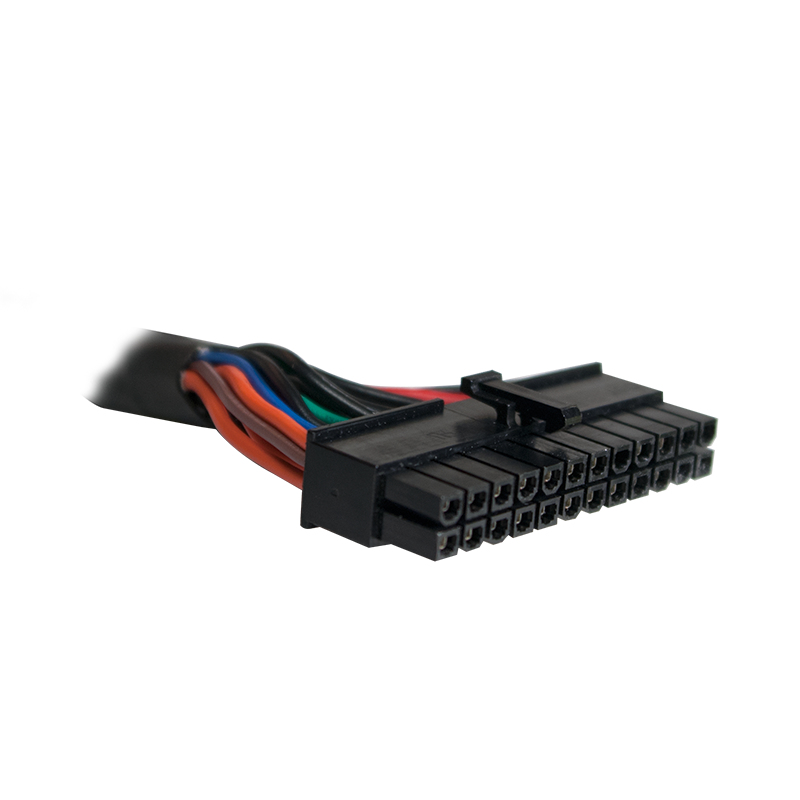

| Motherboard power connector | 24-pin ATX |

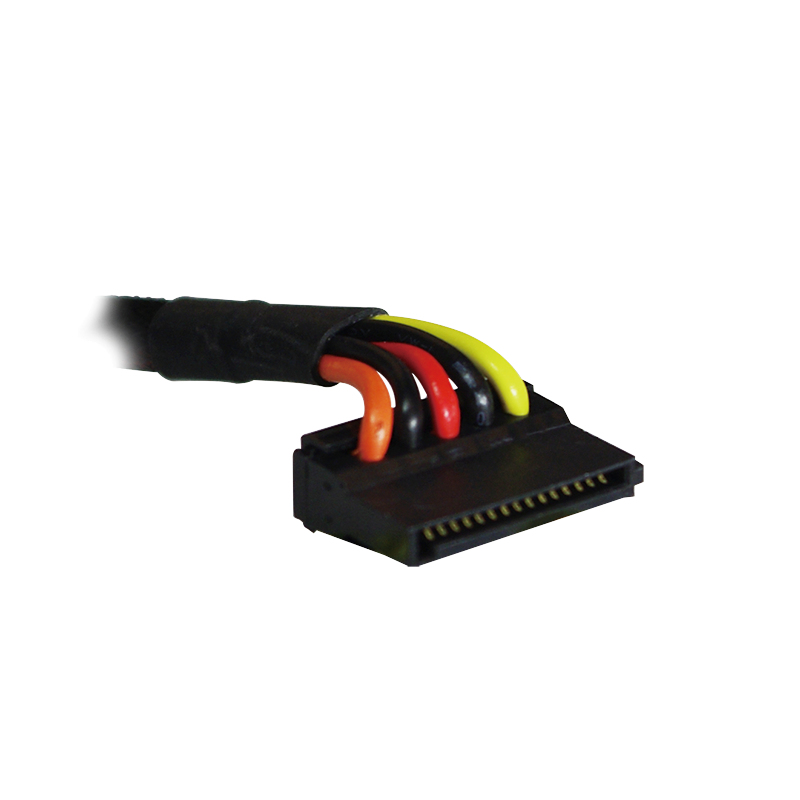

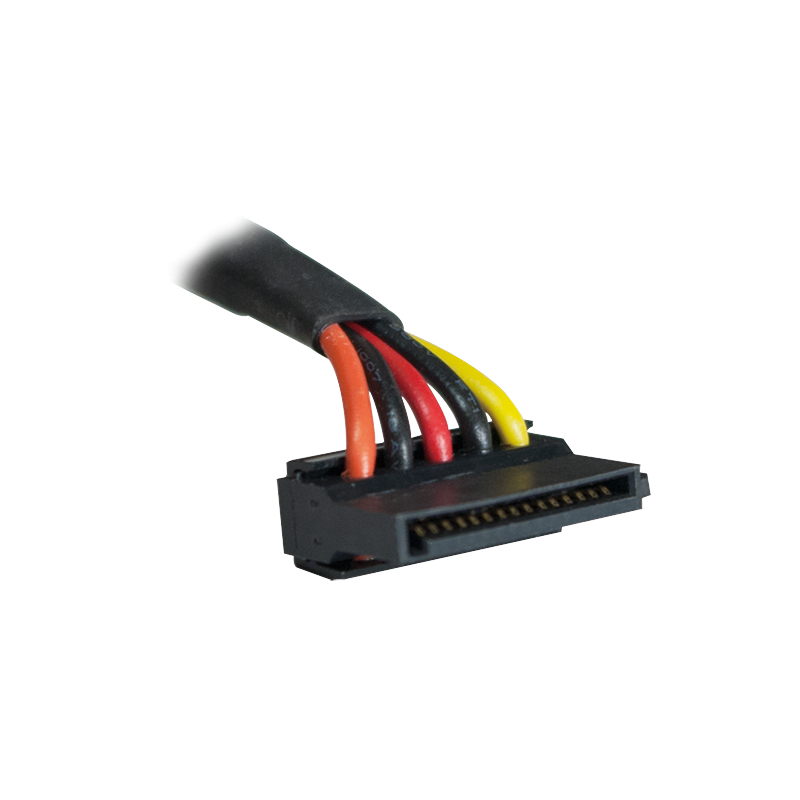

| Number of SATA power connectors | 6 |
| PCI Express power connectors (6-pin) | 0 |

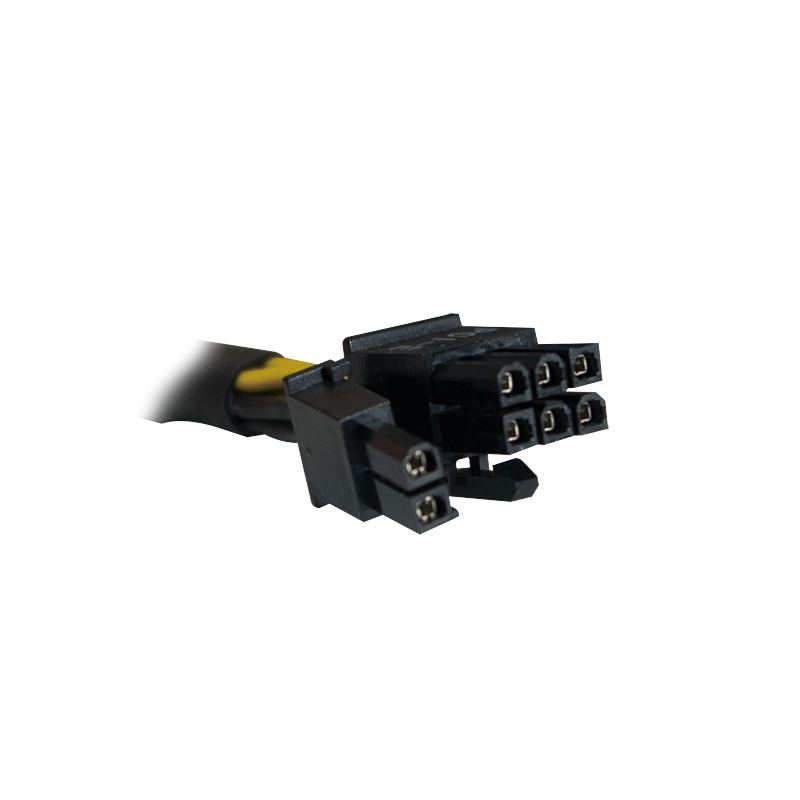

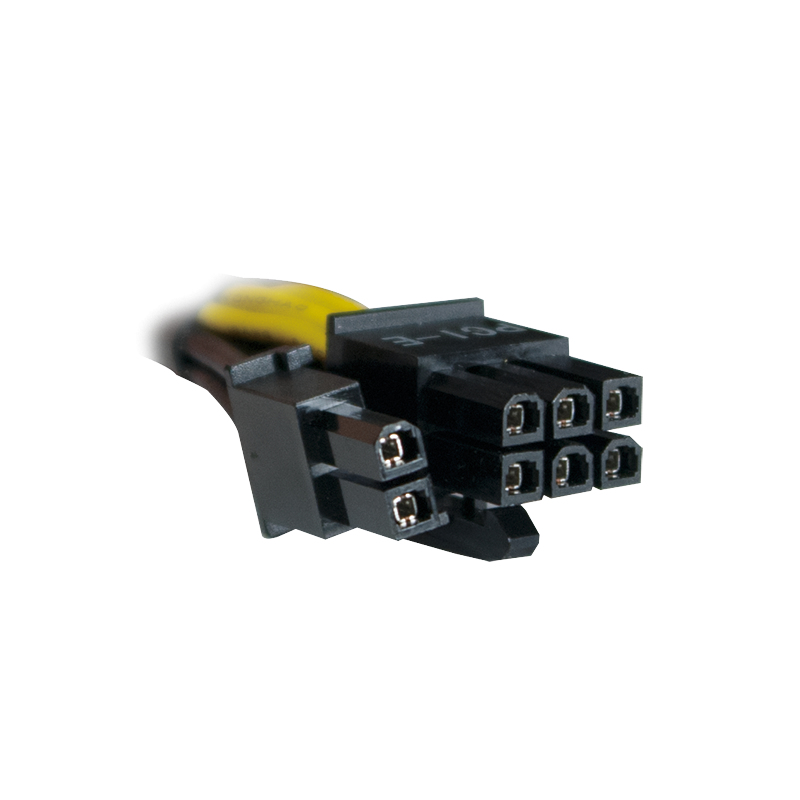

| PCI Express power connectors (6+2 pin) | 4 |

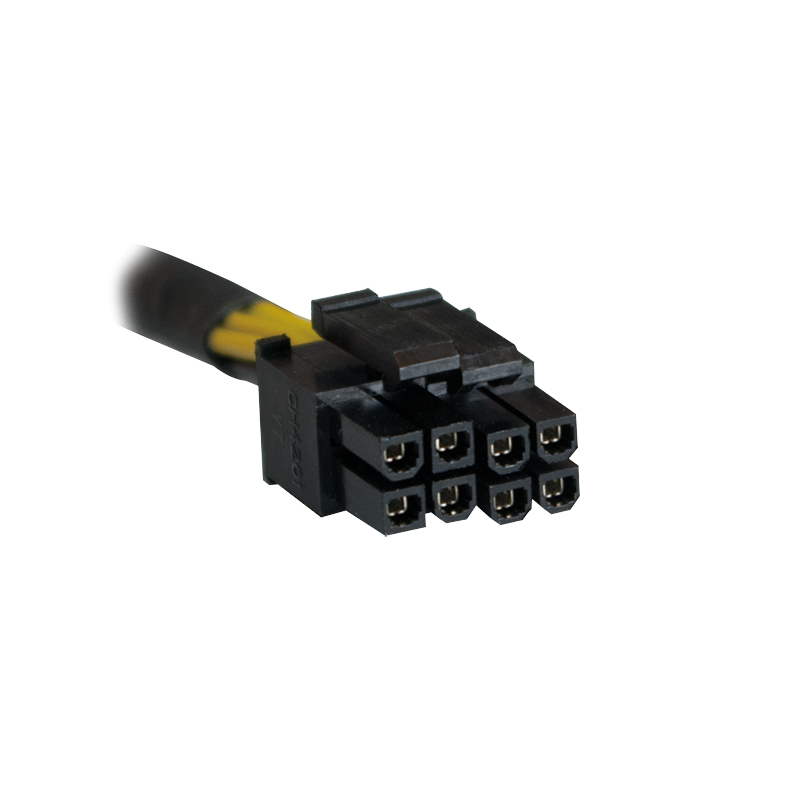

| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |

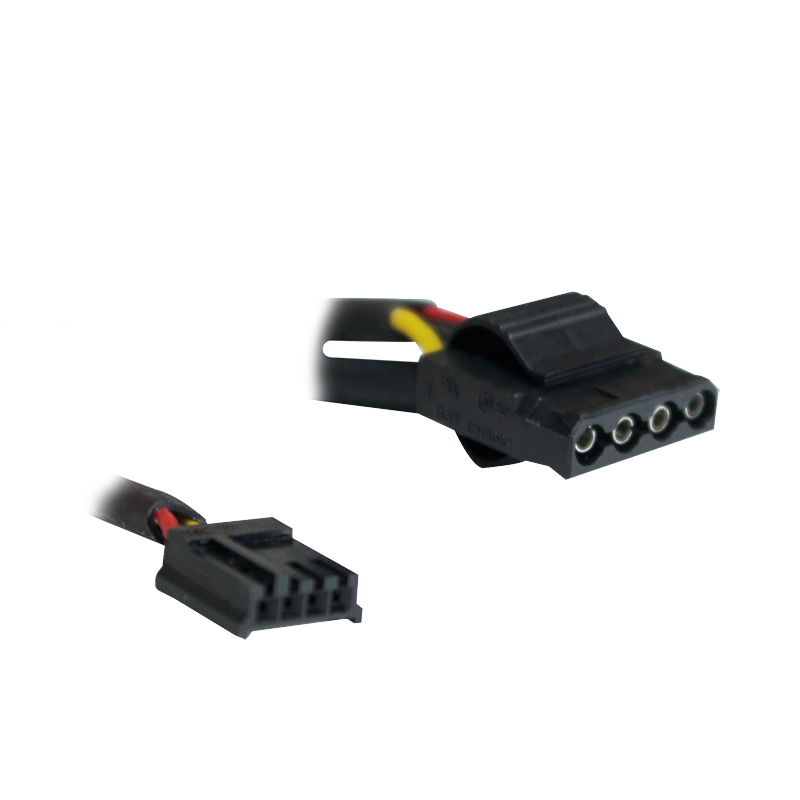

| Floppy disk drive connector | Yes |
| CPU power connectors (8-pin) | 0 |
| PCI Express connector | Yes |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, TUV, CB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 1.75 kg |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package width | 330 mm |
| Package depth | 213 mm |
| Package height | 100 mm |
| Package weight | 2.4 kg |
