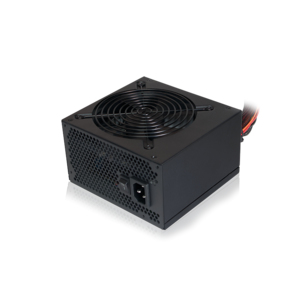

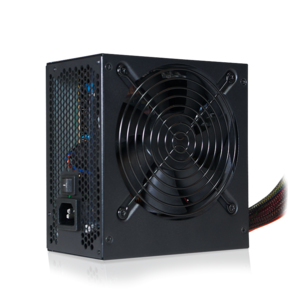

LogiLink PA0088 power supply unit
400 W 20+4 pin ATX TFX Black
Model PA0088EAN 4052792031461
39 specifications
- Weight1.55 kg
- ColourBlack
- Total power400 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 1.55 kg
- Colour
- Black
- Total power
- 400 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- LogiLink
- Category
- Power Supply Unit
- Model
- PA0088
- Part number
- PA0088
- EAN / UPC
- 4052792031461
- Also known as
- LogiLink PA0088 power supply unit 400 W 20+4 pin ATX TFX Black
Specifications
39 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 400 W |
| AC input voltage | 230 V |
| Input current | 6.3 A |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 16 A |
| Max output current (+12V2) | 16 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|

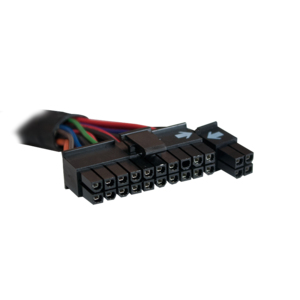

| Motherboard power connector | 20+4 pin ATX |

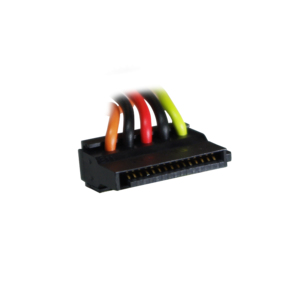

| Number of SATA power connectors | 3 |

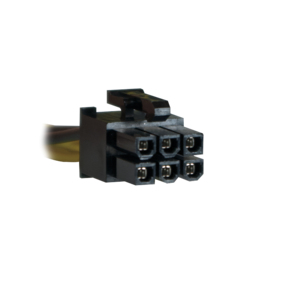

| PCI Express power connectors (6-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 0 |

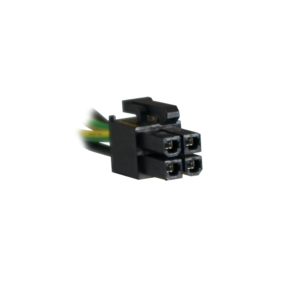

| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) | No |
| Floppy disk drive connector | Yes |

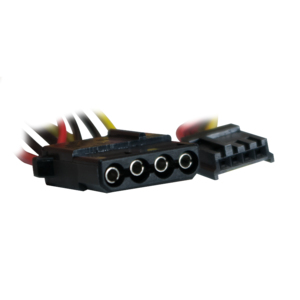

| Floppy drive power connector | 1 |
| CPU power connectors (8-pin) | 0 |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | TFX |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.55 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 235 mm |
| Package depth | 178 mm |
| Package height | 100 mm |
| Package weight | 1.9 kg |
