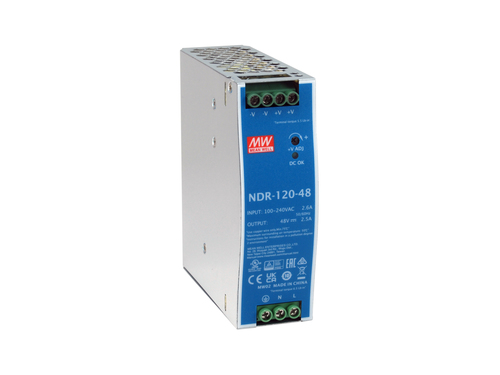

48V DC Industrial Power Supply
120W, DIN-Rail,-20 ~ +70 ℃
Model POW-4842EAN 4015867236604
31 specifications
- Weight530 g
- ColourBlue, Silver
- Total power120 W
- Mean time between failures (MTBF)2636800 h
- Operating temperature (T-T)-20 - 70 °C
- Width40 mm
Overview
- Weight
- 530 g
- Colour
- Blue, Silver
- Total power
- 120 W
- Mean time between failures (MTBF)
- 2636800 h
- Operating temperature (T-T)
- -20 - 70 °C
- Width
- 40 mm
- Brand
- LevelOne
- Category
- Power Supply Unit
- Model
- POW-4842
- Part number
- POW-4842
- EAN / UPC
- 4015867236604
- Also known as
- LevelOne 48V DC Industrial Power Supply, 120W, DIN-Rail,-20 ~ +70 ℃
Specifications
31 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 120 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 2.25 A |
| Hold time | 16 ms |
| Power protection features | Overload, Over voltage, Short circuit |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 2636800 h |
Design
| Specification | Value |
|---|---|
| Product colour | Blue, Silver |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | EN 55032 (CISPR32) Class A EN 61000-3-2,-3,EACTPTC020,CNS13438 Class A EN 61000-4-2,3,4,5,6,8,11 EN 61204-3 EN 55035 EN 61000-6-2 (EN 50082-2) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 40 mm |
| Depth | 113.5 mm |
| Height | 125.2 mm |
| Weight | 530 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 60 mm |
| Package depth | 140 mm |
| Package height | 143 mm |
| Package weight | 600 g |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) cases per pallet | 20 pc(s) |
| Master (outer) case width | 310 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case height | 305 mm |
| Harmonized System (HS) code | 8504403090 |
| Master (outer) case gross weight | 13 kg |
| Country of origin | China |
Other features
| Specification | Value |
|---|---|
| Voltage tolerance | 1% |
| Output voltage note | 48V |
