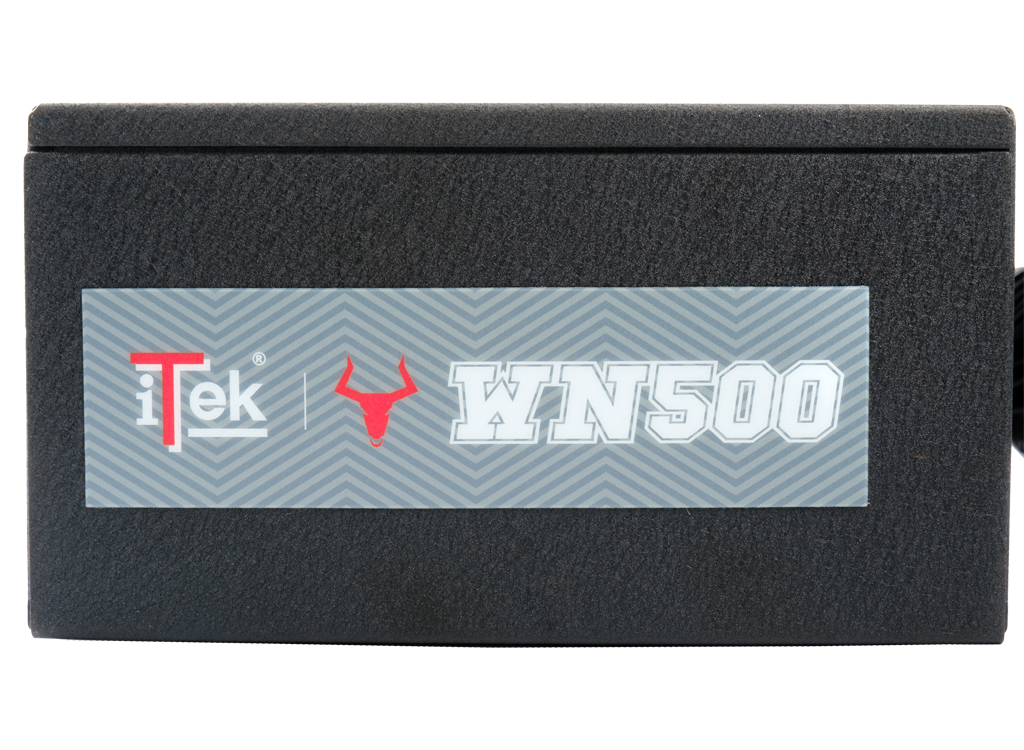

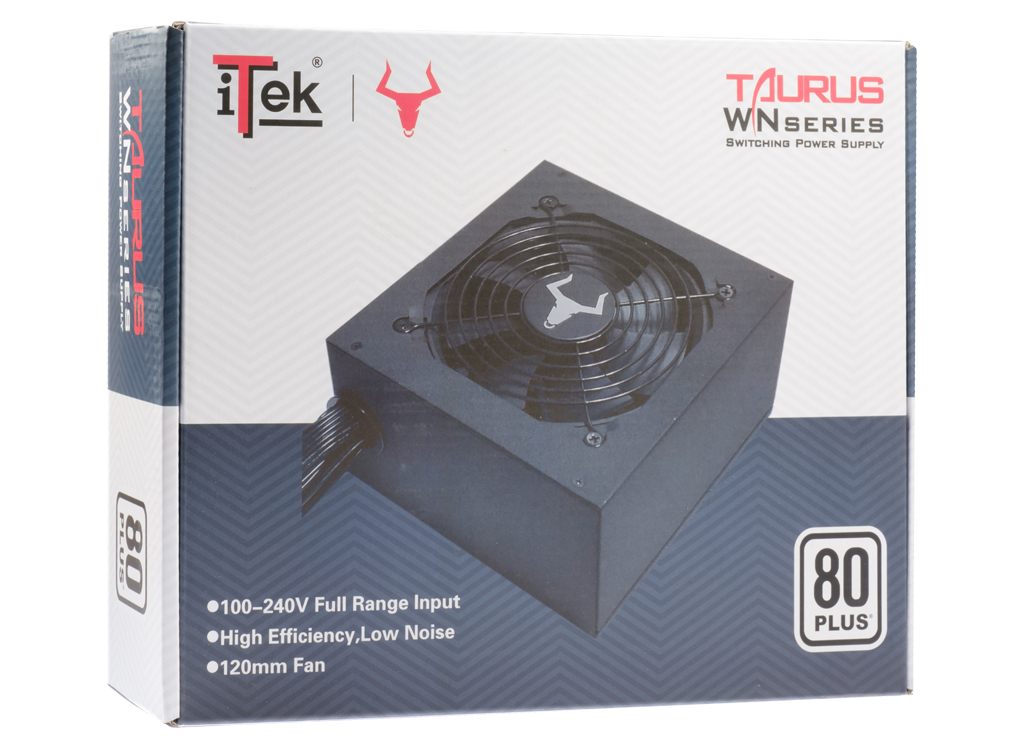

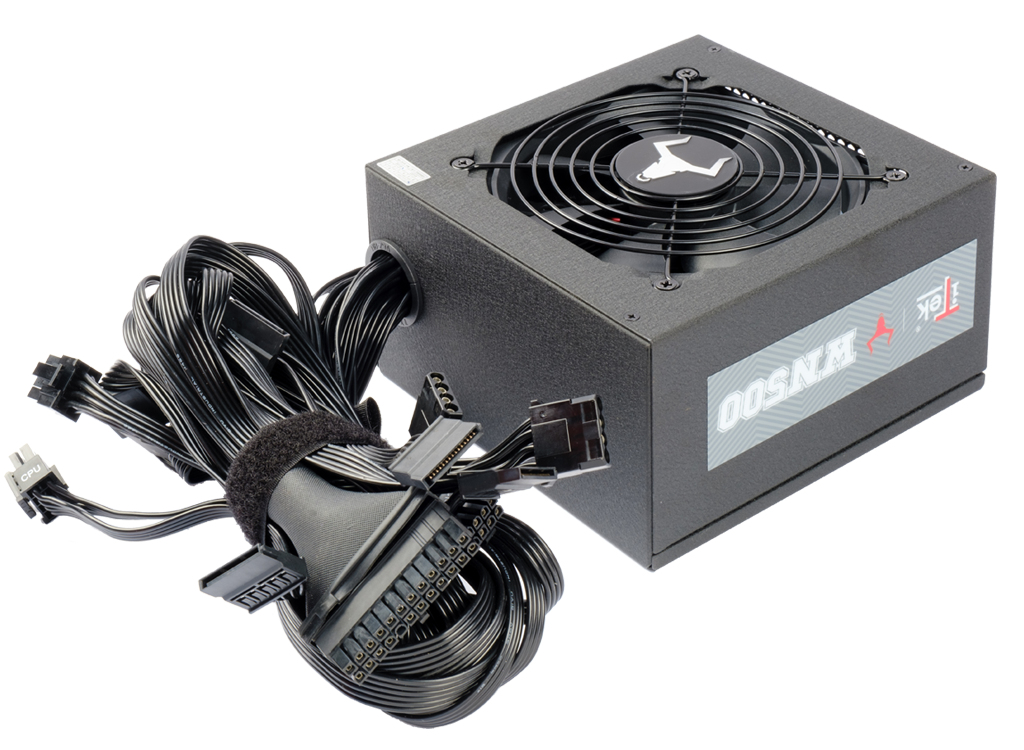

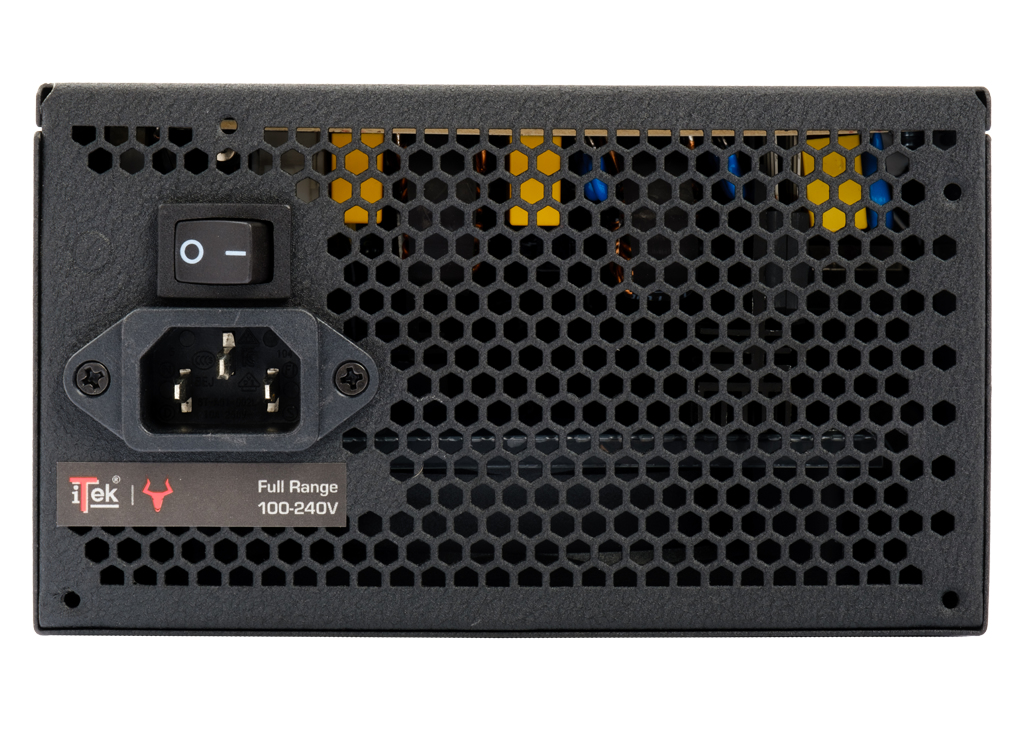

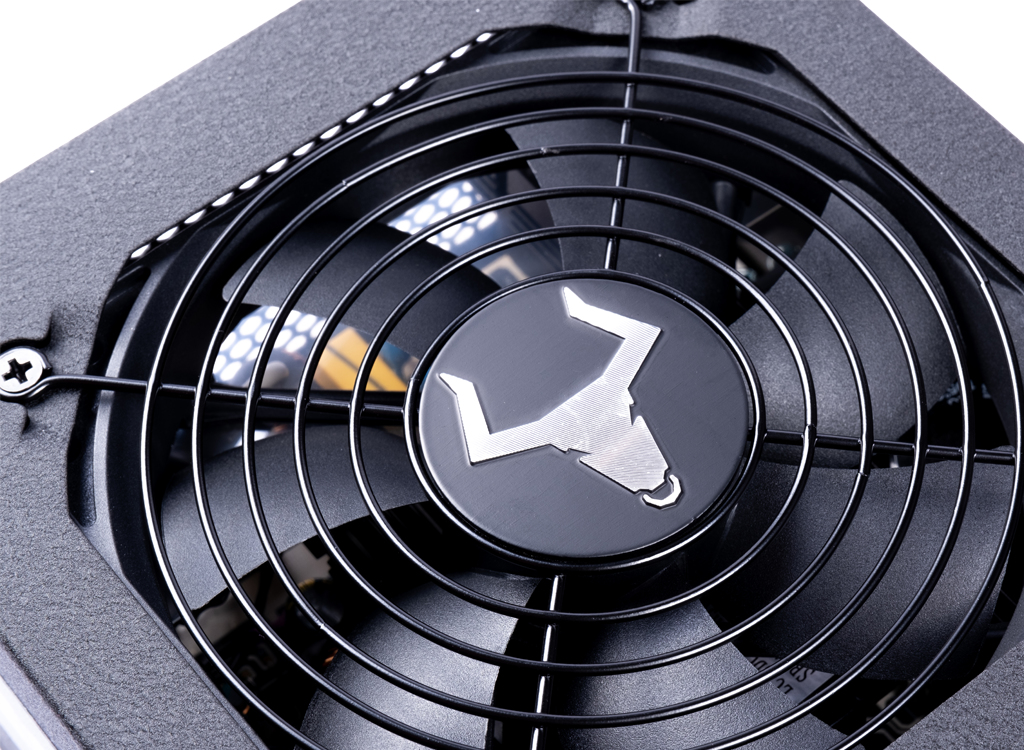

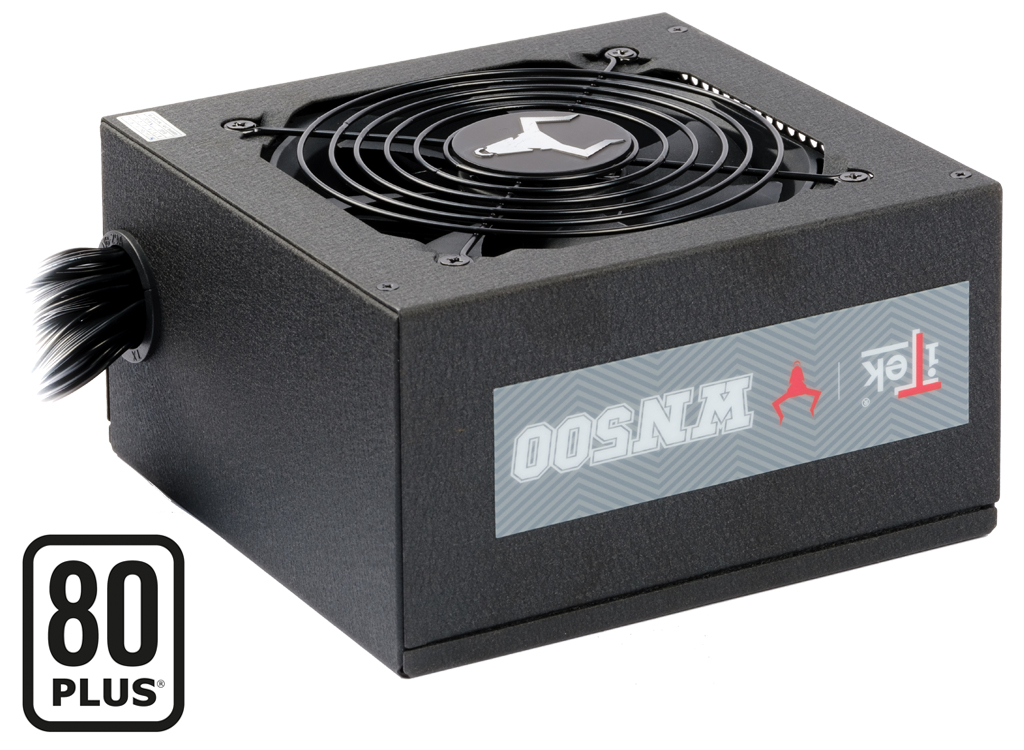

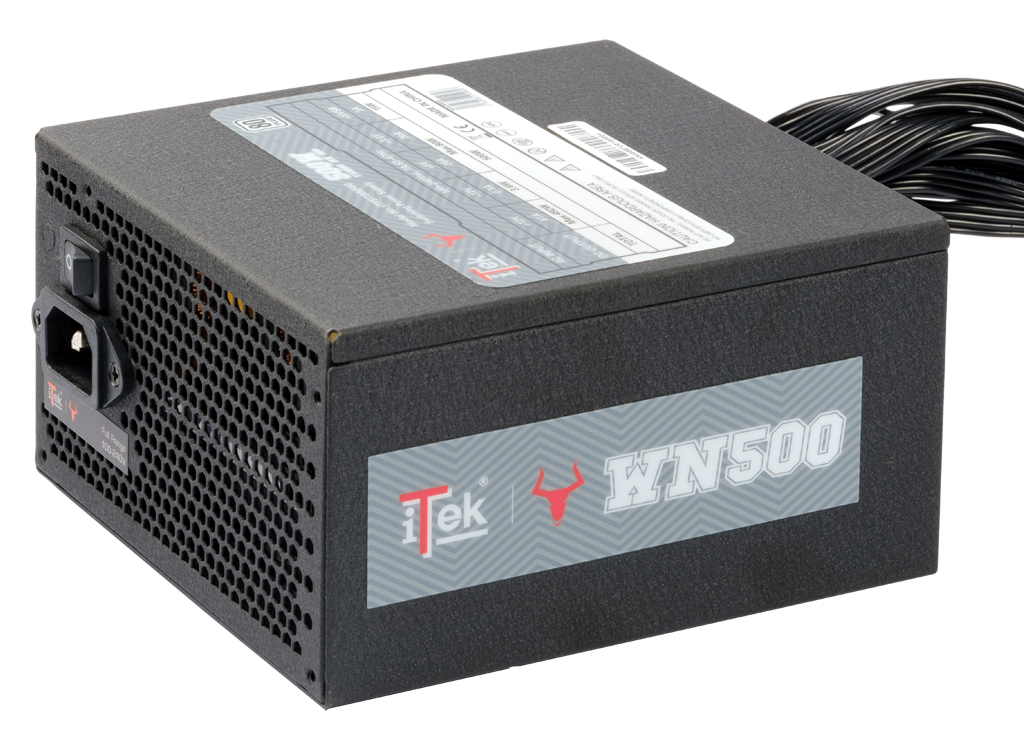

TAURUS WN500
Model TAURUS WN500Part no. ITPSTWN500EAN 8032539914628
27 specifications
- Weight1.96 kg
- ColourBlack
- Total power500 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width157.5 mm
Overview
- Weight
- 1.96 kg
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 157.5 mm
- Brand
- itek
- Category
- Power Supply Unit
- Model
- TAURUS WN500
- Part number
- ITPSTWN500
- EAN / UPC
- 8032539914628
- Also known as
- itek TAURUS WN500 power supply unit 500 W 24-pin ATX ATX Black
Specifications
27 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 70 cm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 80 cm |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS White |
| ATX version | 2.31 |
| Bearing technology | HDB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 157.5 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.96 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.47 kg |
