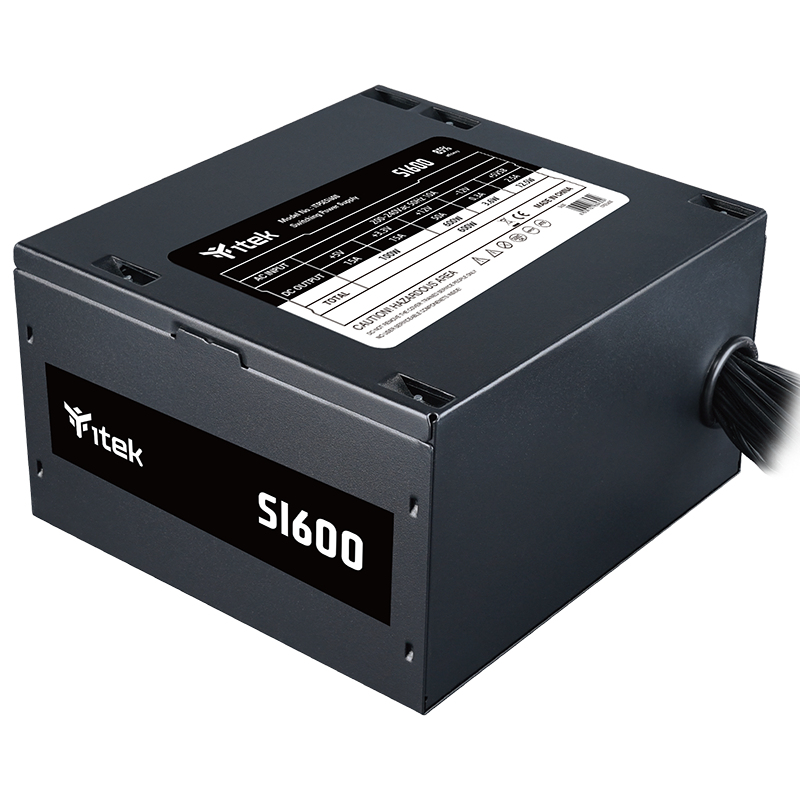

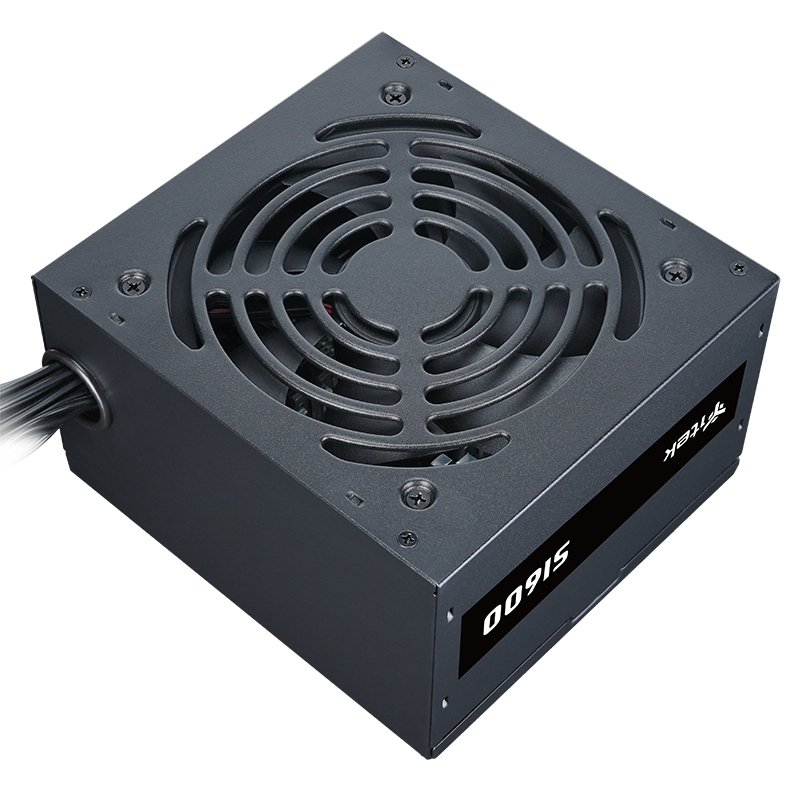

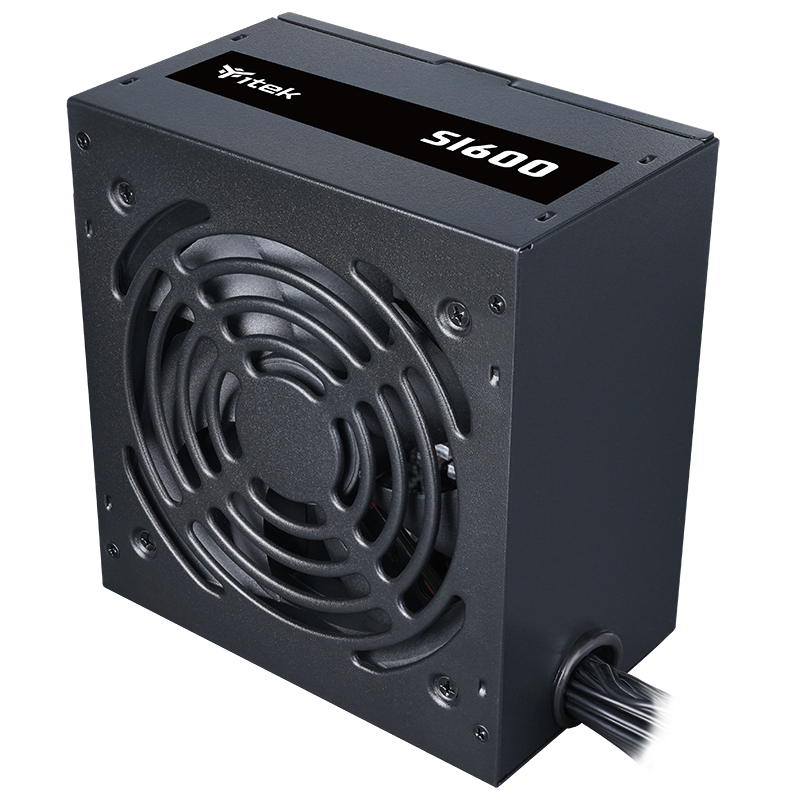

SI600 power supply unit
600 W 20+4 pin ATX ATX Black
Model SI600Part no. ITPSESI600EAN 8056157884309
24 specifications
- Weight1.38 kg
- ColourBlack
- Total power600 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width140 mm
Overview
- Weight
- 1.38 kg
- Colour
- Black
- Total power
- 600 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- itek
- Category
- Power Supply Unit
- Model
- SI600
- Part number
- ITPSESI600
- EAN / UPC
- 8056157884309
- Also known as
- itek SI600 power supply unit 600 W 20+4 pin ATX ATX Black
Specifications
24 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current, Over power, Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 500 mm |
| Number of SATA power cables | 3 |
| EPS power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.31 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.38 kg |
