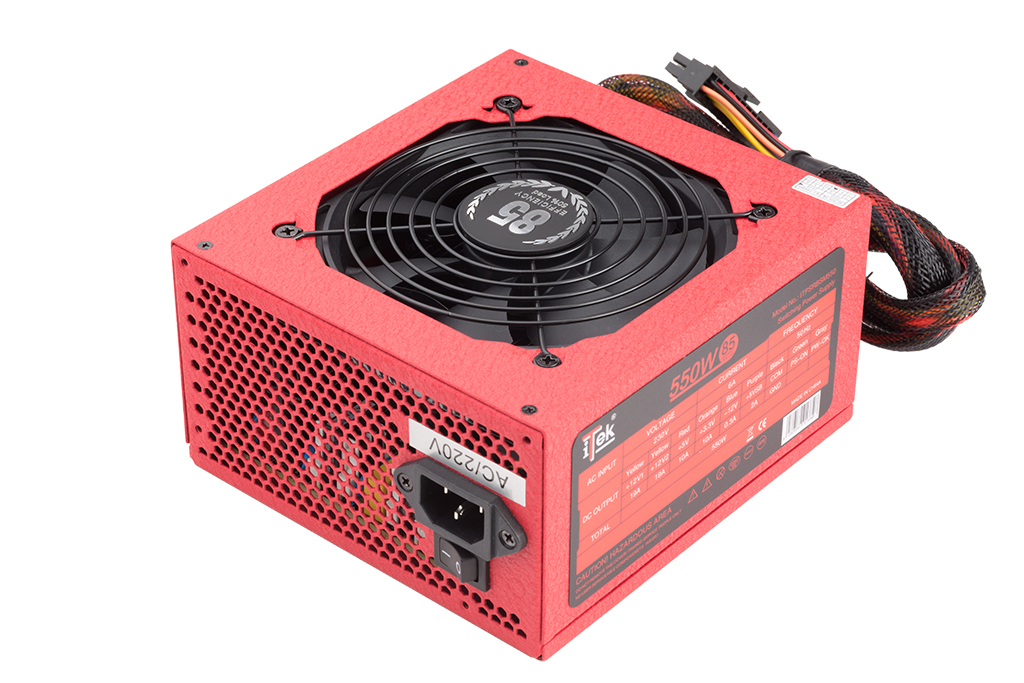

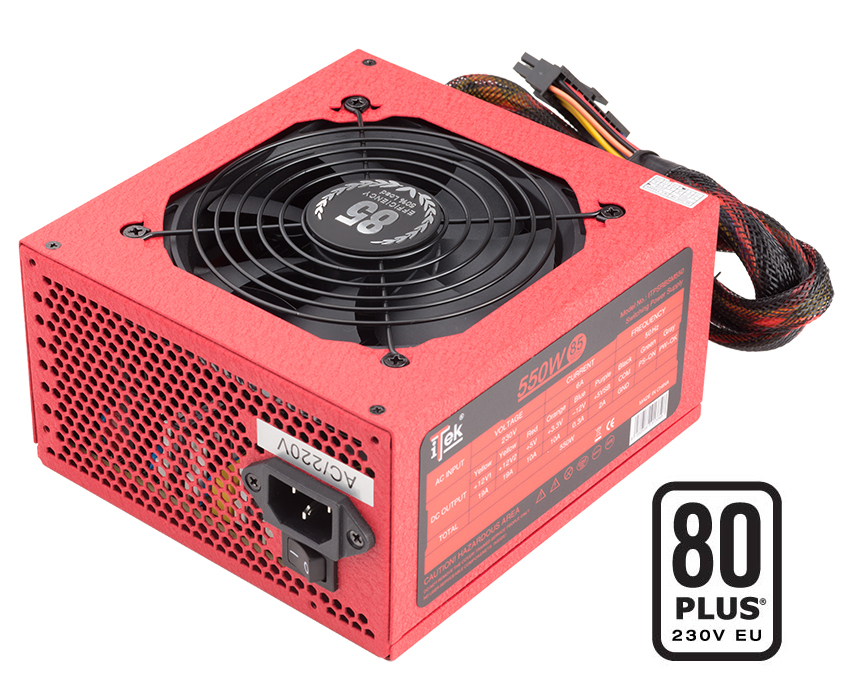

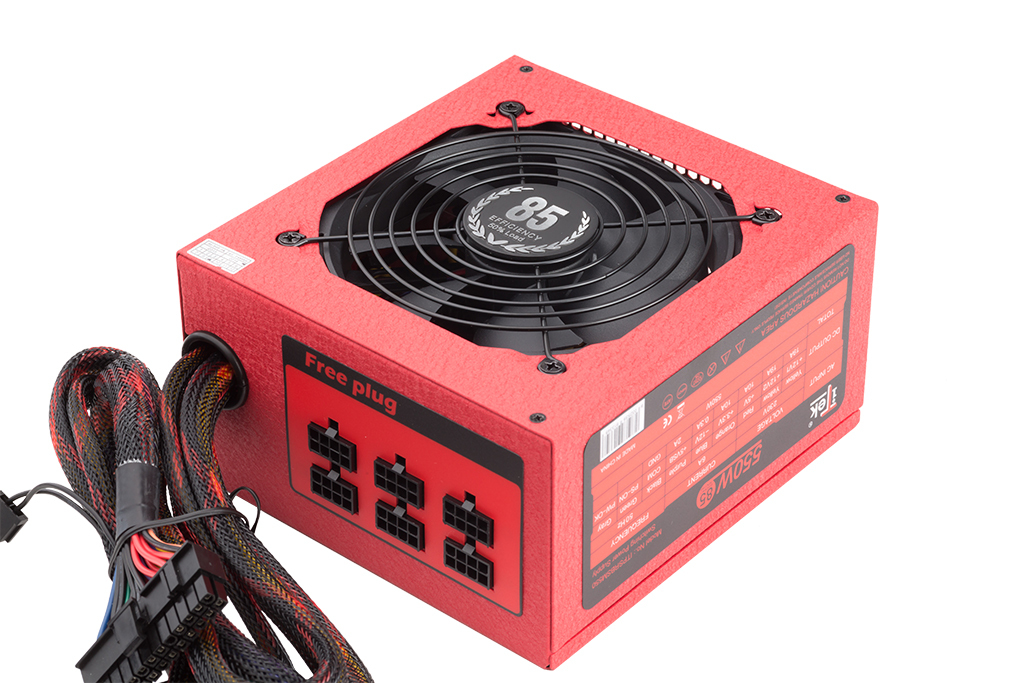

itek Redbox SM
Model Redbox SMPart no. ITPSRBSM550EAN 8032539913362
26 specifications
- Weight1.6 kg
- ColourRed
- Total power550 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Weight
- 1.6 kg
- Colour
- Red
- Total power
- 550 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- itek
- Category
- Power Supply Unit
- Model
- Redbox SM
- Part numbers
- ITPSRBSM550, ITPSRBSM650, ITPSRBSM750
- EAN / UPC
- 8032539913362, 8032539913348, 8032539913355
- Also known as
- itek Redbox SM power supply unit 550 W 20+4 pin ATX ATX Red
Specifications
26 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |

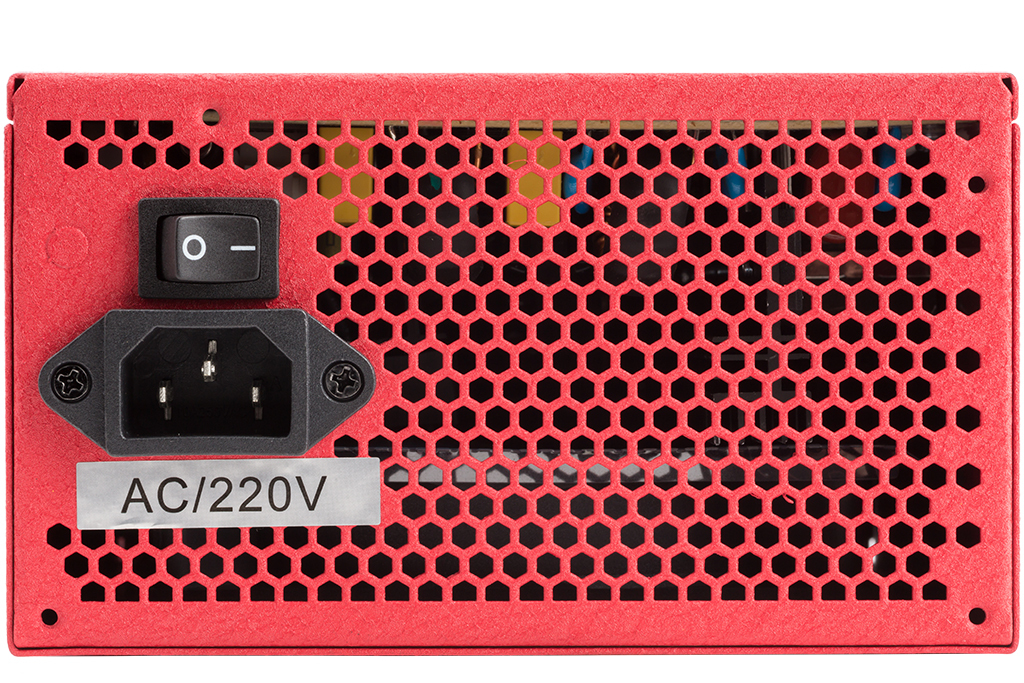

| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 6 A |
| Power Factor Correction (PFC) type | Active |
| Efficiency | 85% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |

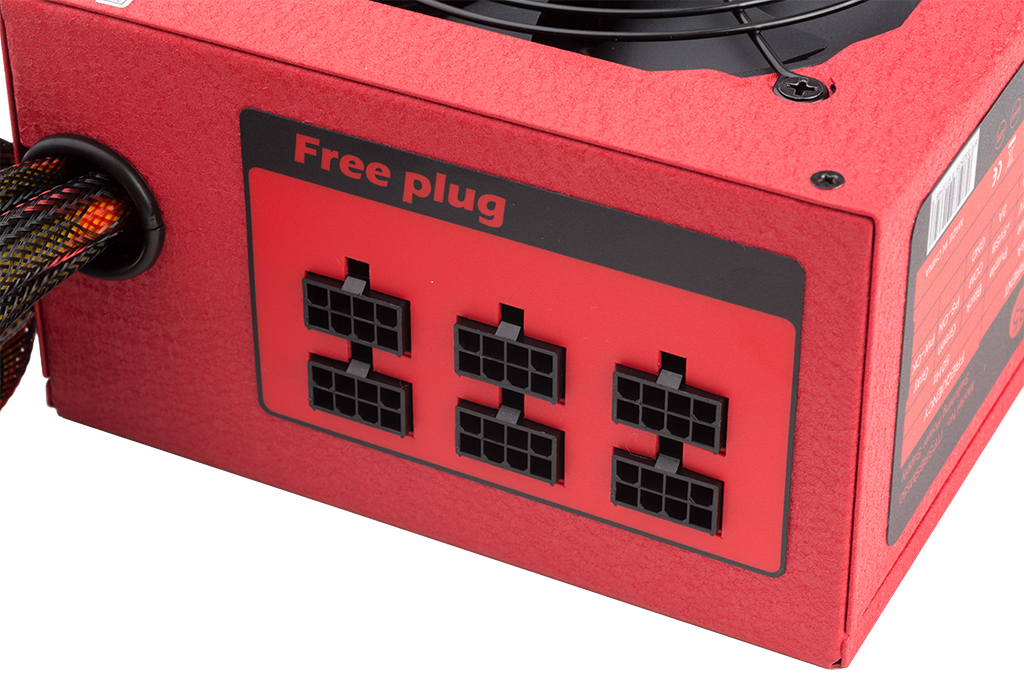

| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.31 |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Red |
| Cooling type | Active |

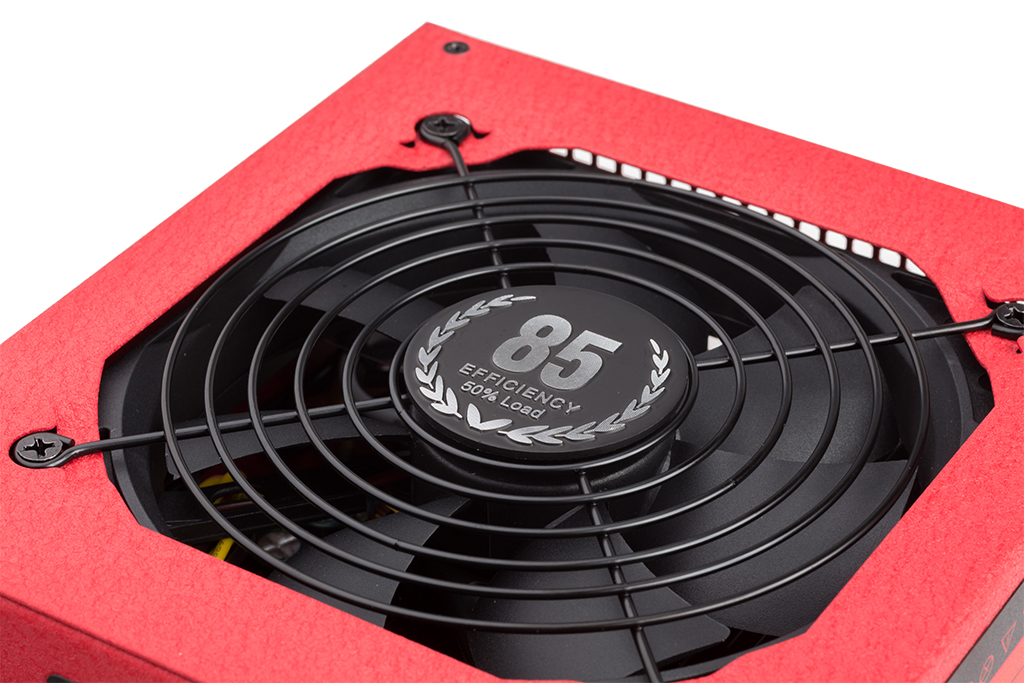

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.39 kg |
