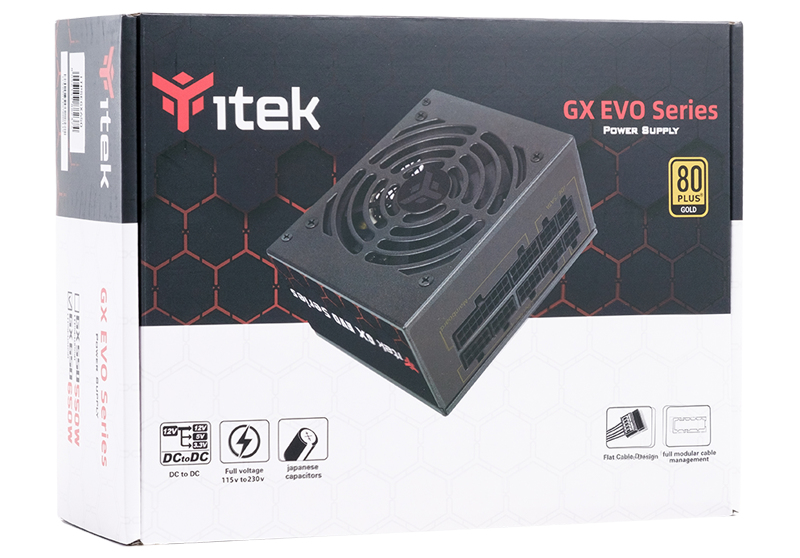

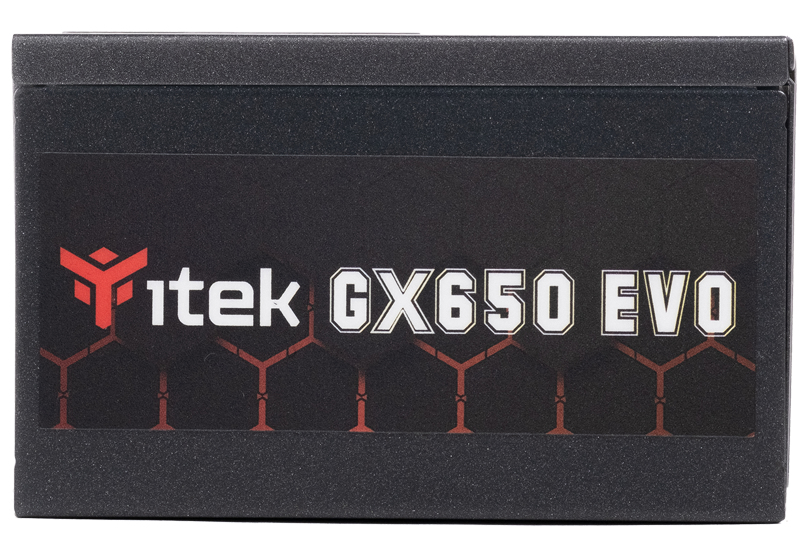

GX650 EVO
Model GX650 EVOPart no. ITPSEGX650EAN 8056157882374
29 specifications
- Weight1.51 kg
- ColourBlack
- Total power650 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width125 mm
Overview
- Weight
- 1.51 kg
- Colour
- Black
- Total power
- 650 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 125 mm
- Brand
- itek
- Category
- Power Supply Unit
- Model
- GX650 EVO
- Part number
- ITPSEGX650
- EAN / UPC
- 8056157882374
- Also known as
- itek GX650 EVO power supply unit 650 W 24-pin ATX SFX Black
Specifications
29 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 115 - 230 V |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 30 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 445,150 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 40 cm |

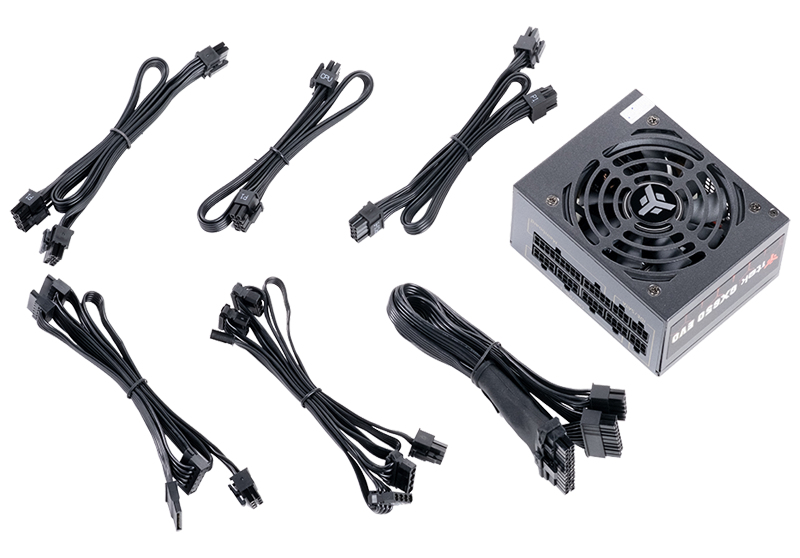

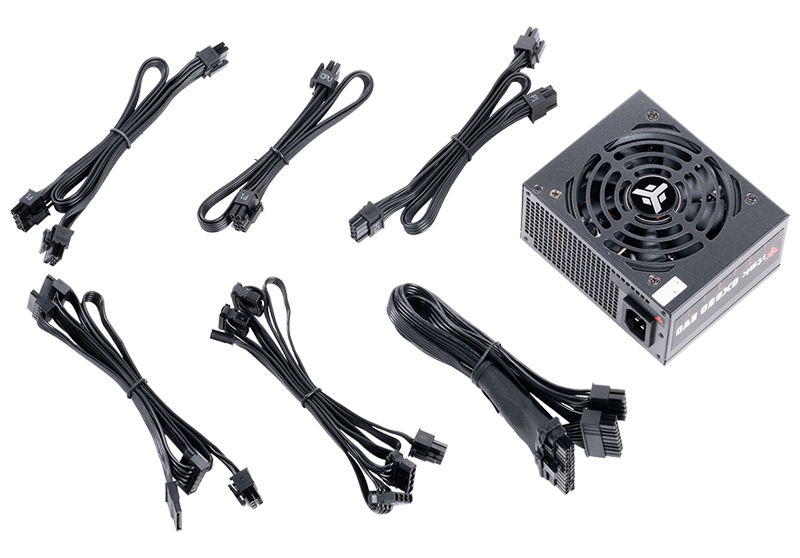

| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.31 |
| Bearing technology | FDB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 9.2 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 1800 RPM |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 100 mm |
| Height | 62 mm |
| Weight | 1.51 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.72 kg |
| Package type | Box |
