GBI850 power supply unit
850 W 20+4 pin ATX ATX Black
Model GBI850Part no. ITPSEGBI850EAN 8056157883883
23 specifications
- ColourBlack
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- itek
- Category
- Power Supply Unit
- Model
- GBI850
- Part number
- ITPSEGBI850
- EAN / UPC
- 8056157883883
- Also known as
- itek GBI850 power supply unit 850 W 20+4 pin ATX ATX Black
Specifications
23 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Efficiency | 89.94% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|

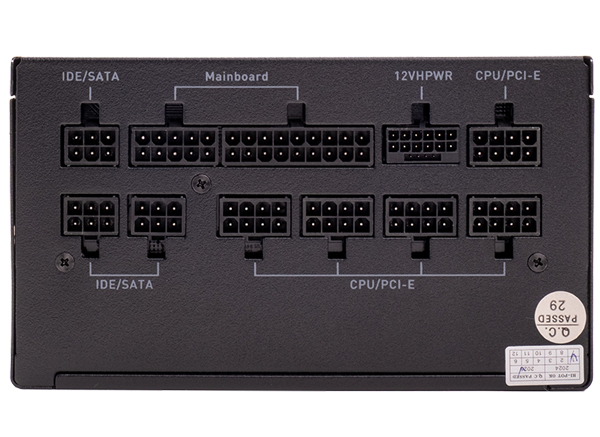

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 150,450 mm |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |

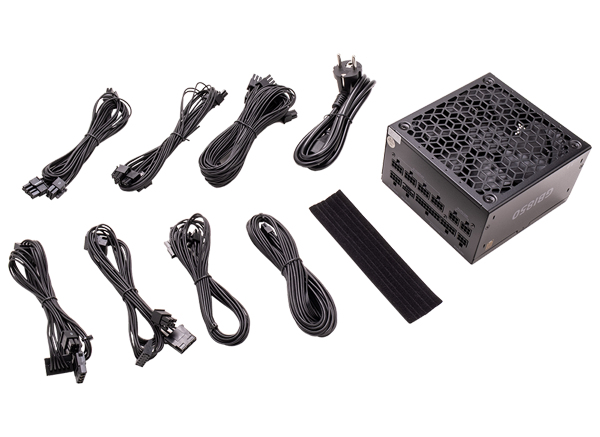

| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Mean time between failures (MTBF) | 80000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

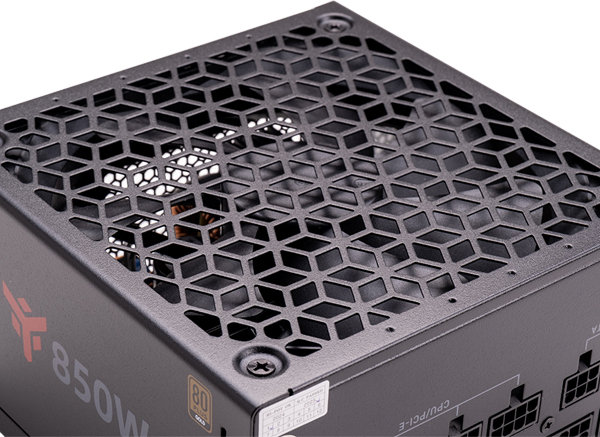

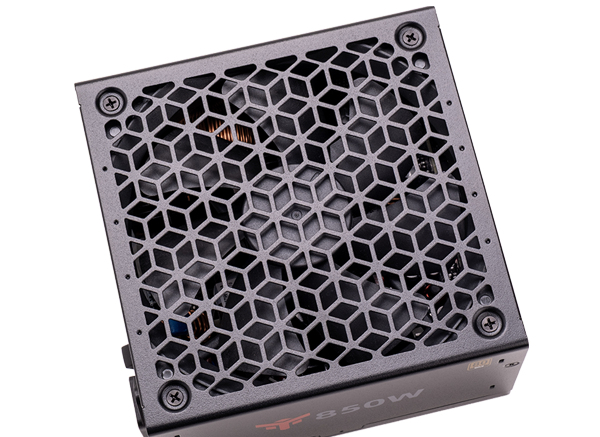

| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
