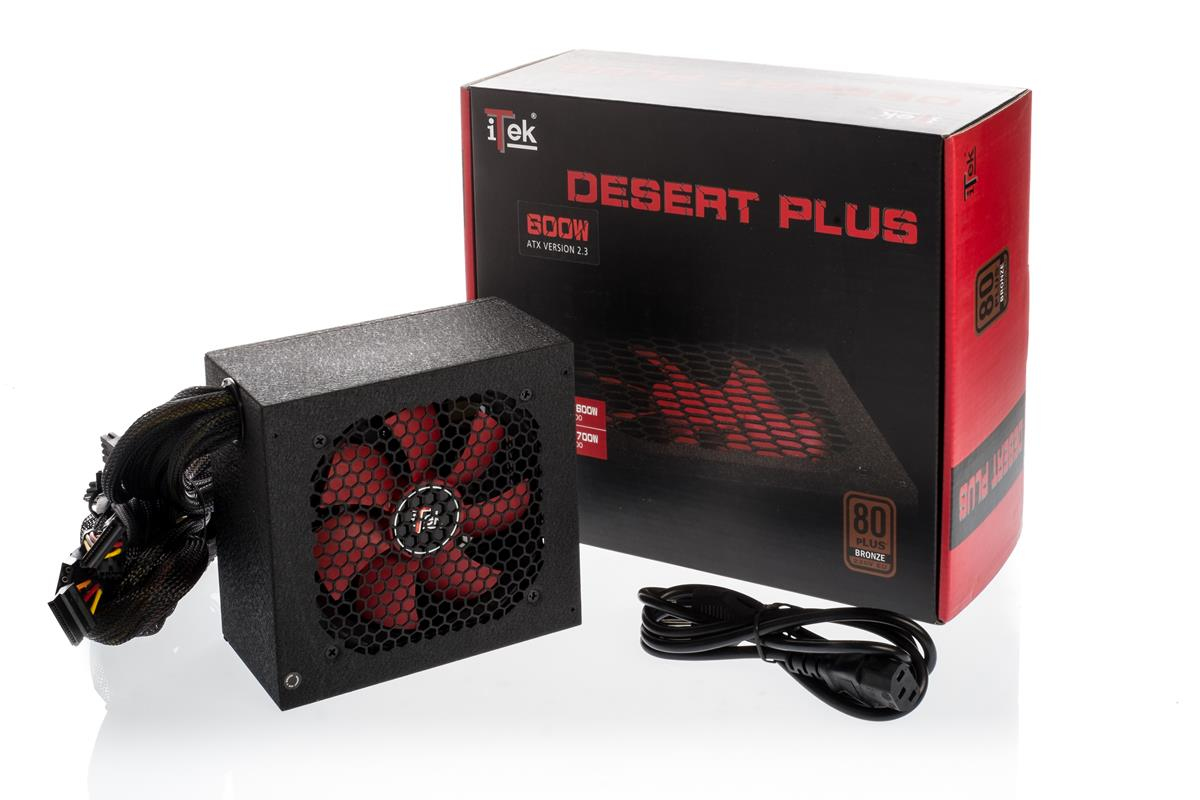

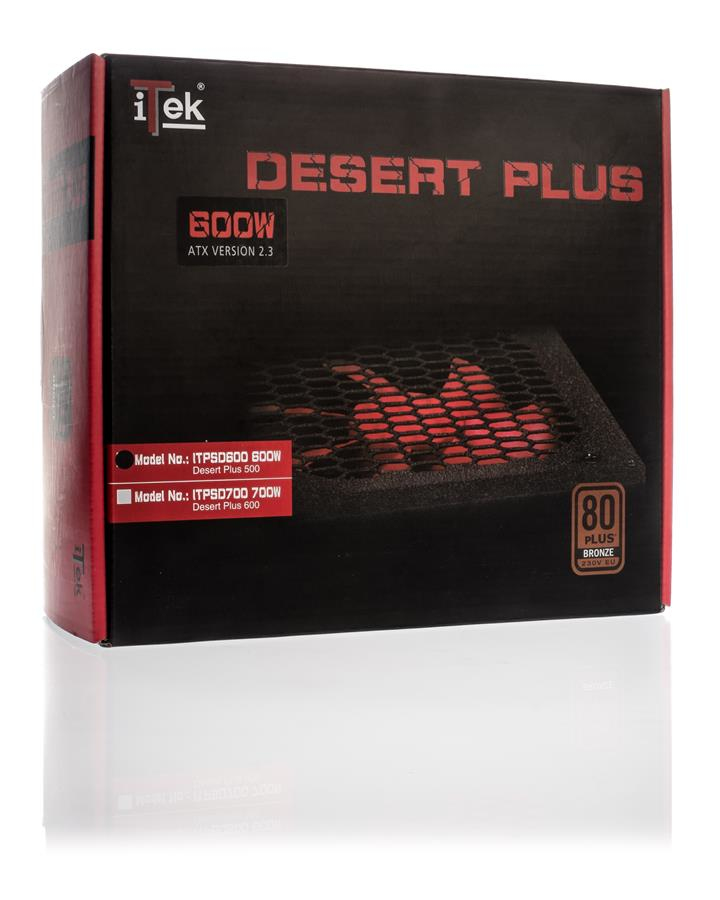

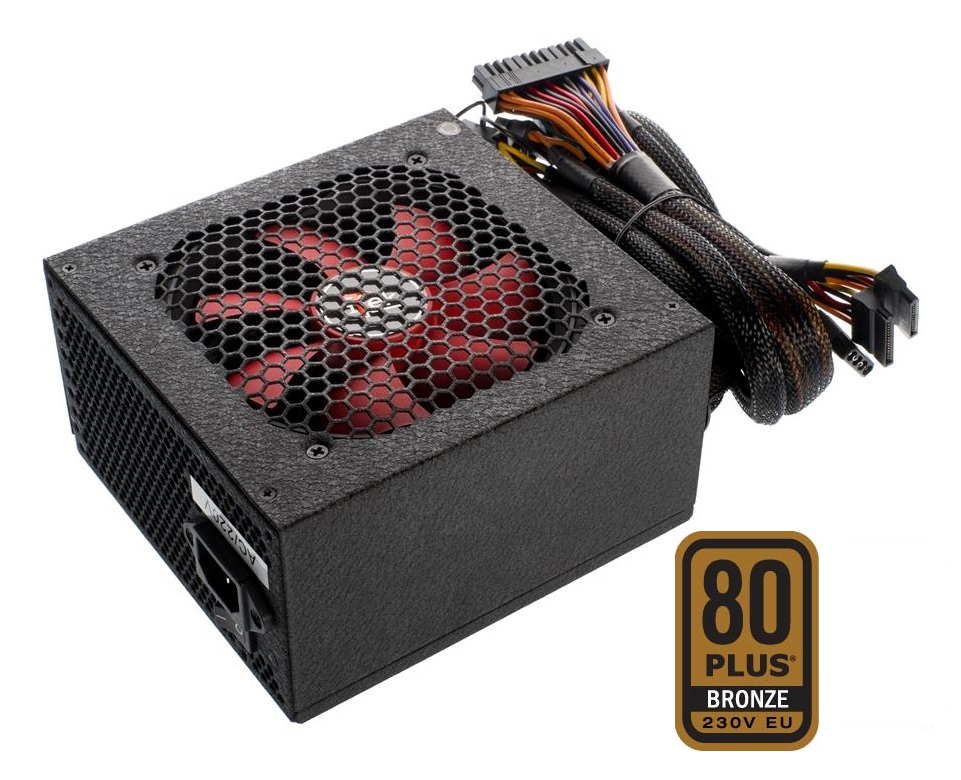

itek DESERT PLUS 600
Model DESERT PLUS 600Part no. ITPSD600EAN 8032539912884
41 specifications
- Weight2.35 kg
- ColourBlack, Red
- Total power600 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Weight
- 2.35 kg
- Colour
- Black, Red
- Total power
- 600 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- itek
- Category
- Power Supply Unit
- Model
- DESERT PLUS 600
- Part number
- ITPSD600
- EAN / UPC
- 8032539912884
- Also known as
- itek DESERT PLUS 600 power supply unit 600 W 20+4 pin ATX ATX Black, Red
Specifications
41 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Input current | 5 A |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 590 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V1) | 25 A |
| Max output current (+12V2) | 25 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 88% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.31 |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Red |
| Cooling type | Active |

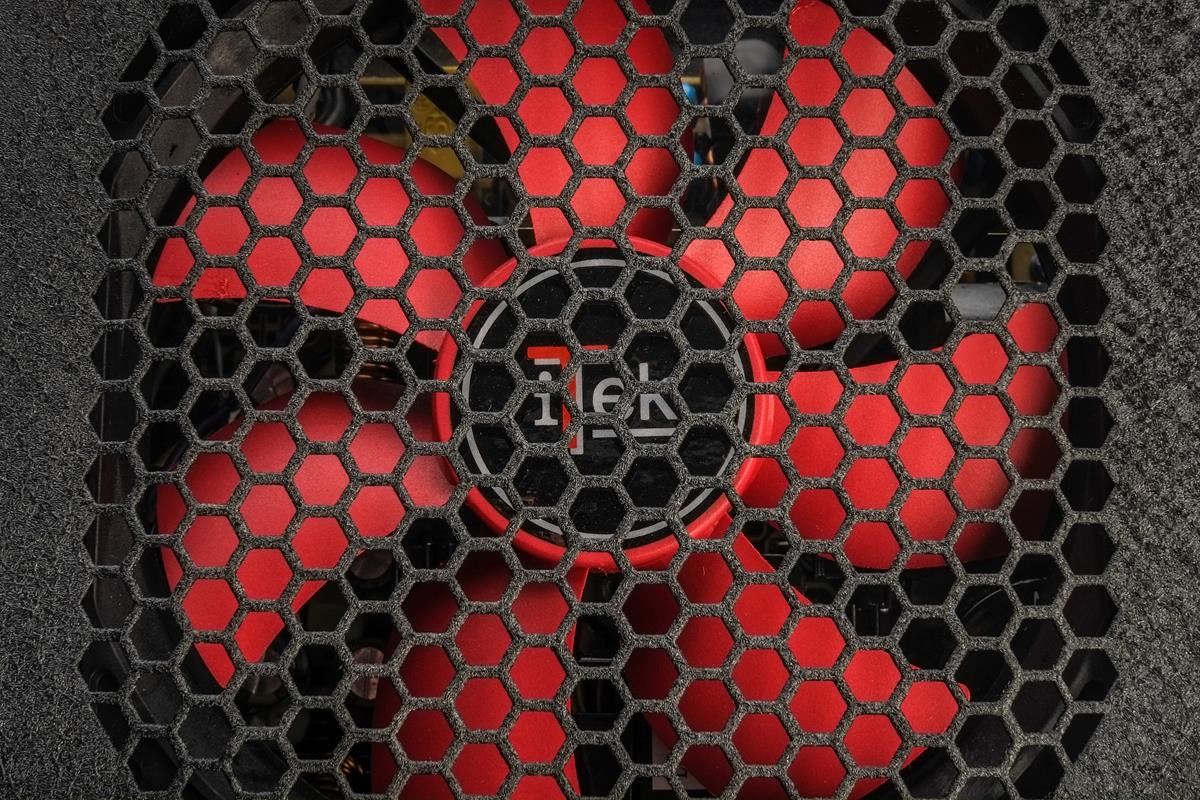

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE EMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.35 kg |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Warranty card | Yes |
What people say
Reviews & ratings
itek DESERT PLUS 600
No reviews yet
Be the first to tell others how itek DESERT PLUS 600 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare itek DESERT PLUS 600
All power supply unit comparisons- itek DESERT PLUS 600 vsitek DESERT PLUS 700Compare specs
- itek DESERT PLUS 600 vsitek Redbox SMCompare specs
- itek DESERT PLUS 600 vsitek APACHE PLUS 500Compare specs
- itek DESERT PLUS 600 vsitek REBEL 700MCompare specs

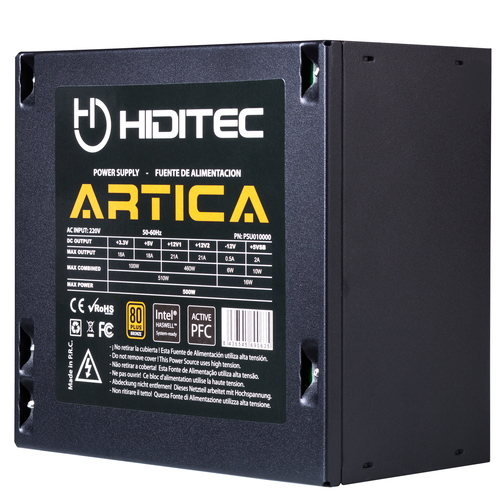

- itek DESERT PLUS 600 vsHiditec Artica 500W 80Plus BronzeCompare specs

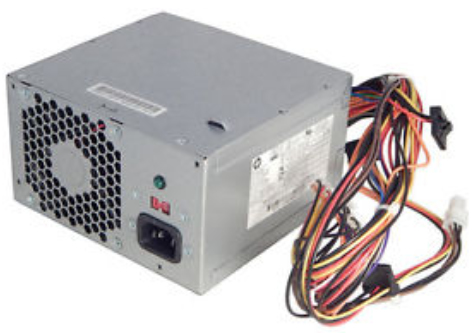

- itek DESERT PLUS 600 vsHP 759769-001 power supply unitCompare specs
