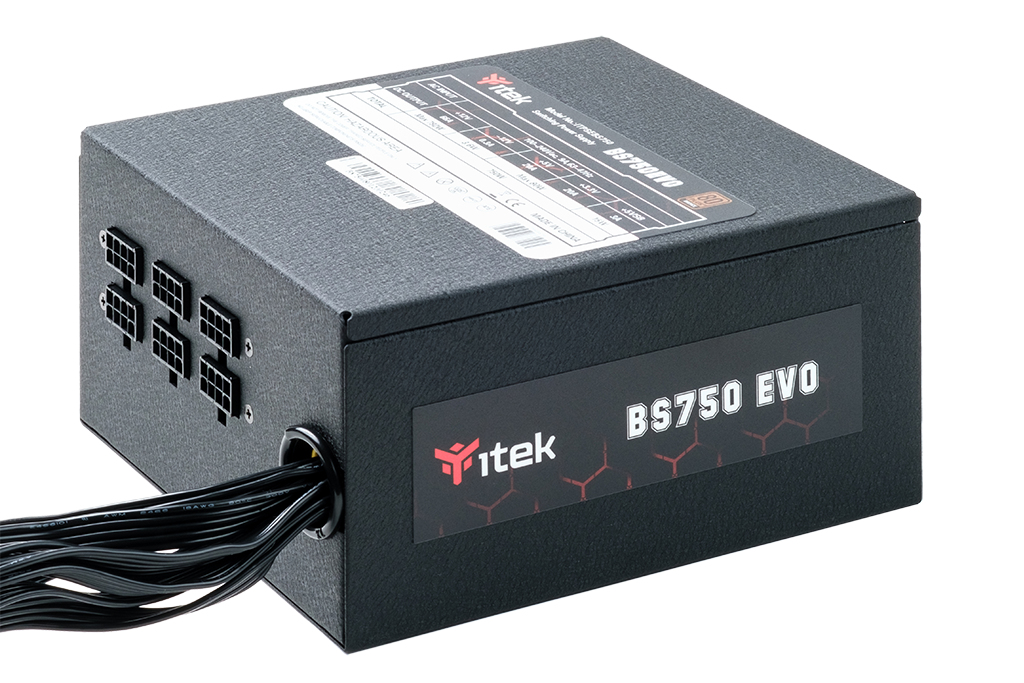

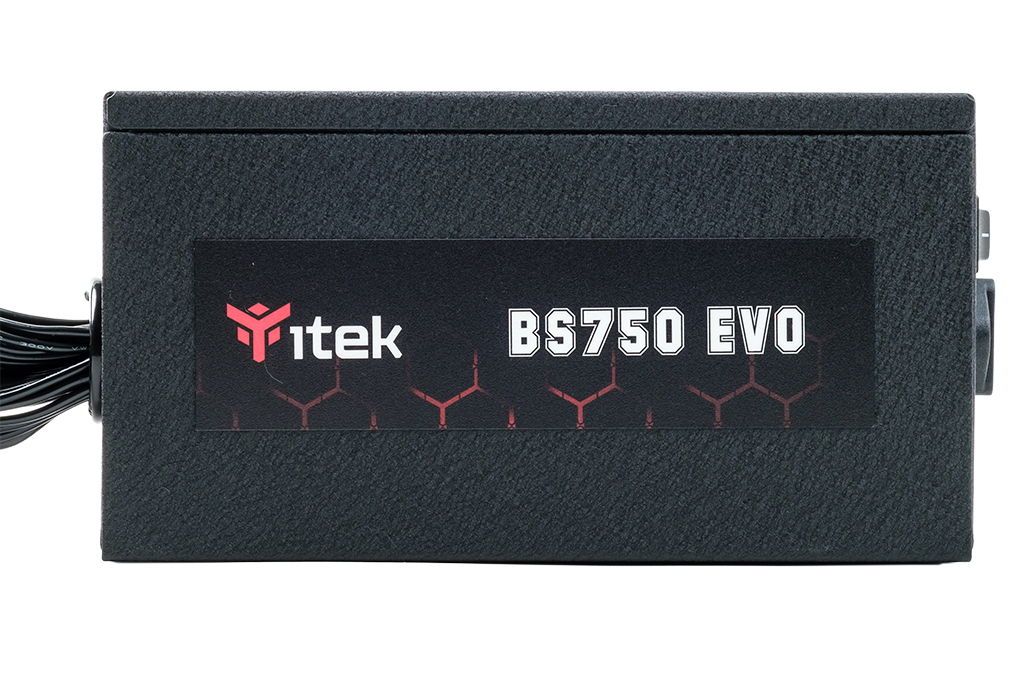

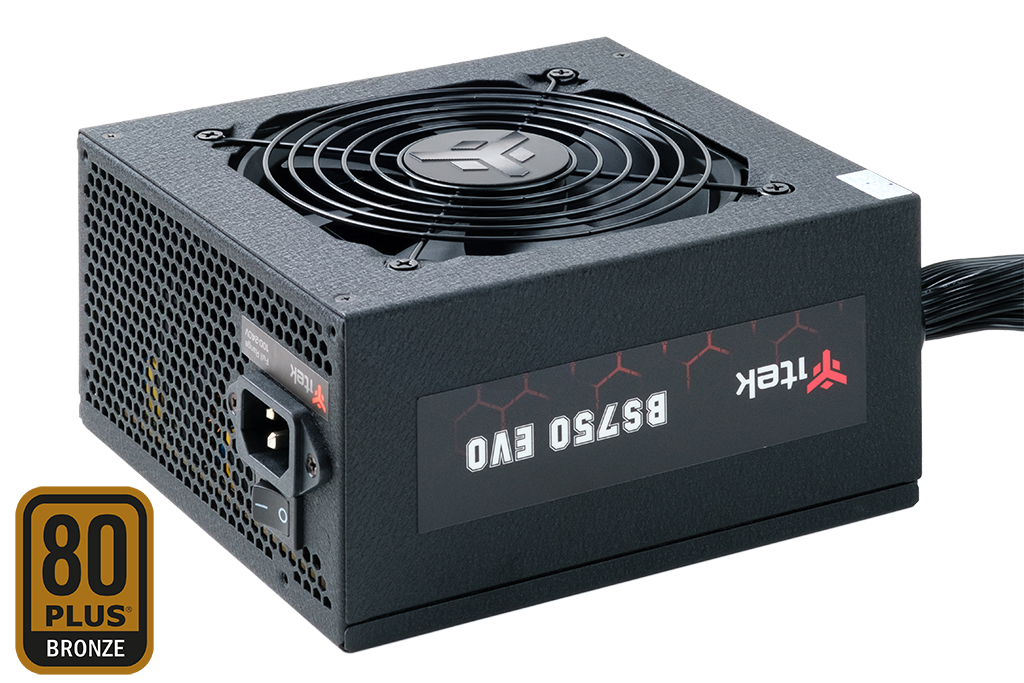

BS750 power supply unit
750 W 24-pin ATX ATX Black
Model BS750Part no. ITPSEBS750EAN 8056157881025
24 specifications
- Weight2.24 kg
- ColourBlack
- Total power750 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width160 mm
Overview
- Weight
- 2.24 kg
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 160 mm
- Brand
- itek
- Category
- Power Supply Unit
- Model
- BS750
- Part number
- ITPSEBS750
- EAN / UPC
- 8056157881025
- Also known as
- itek BS750 power supply unit 750 W 24-pin ATX ATX Black
Specifications
24 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |

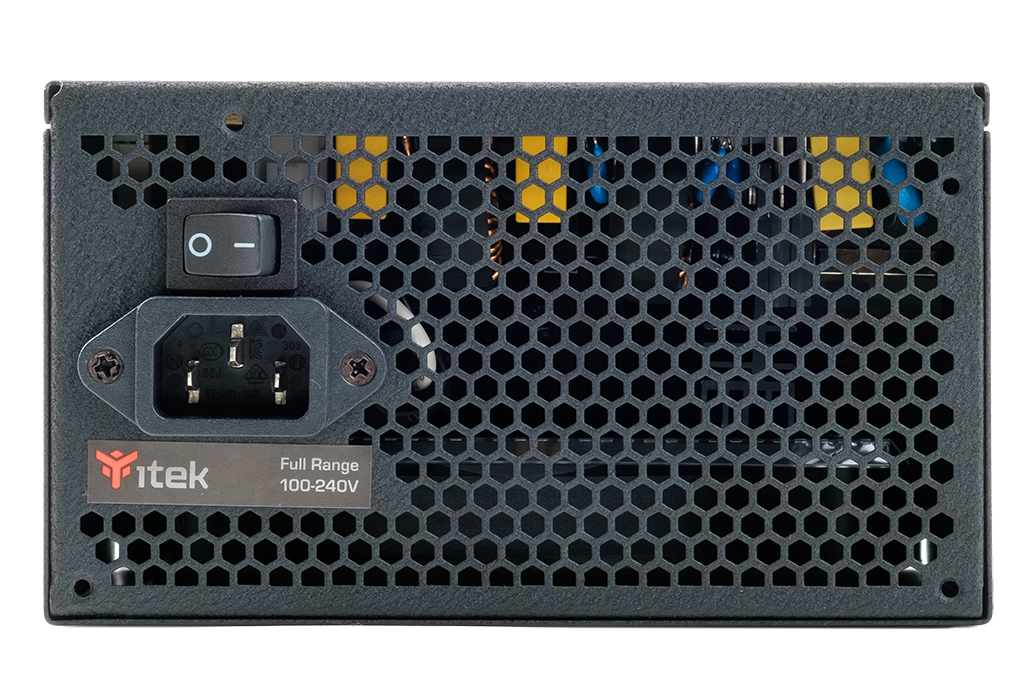

| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 7 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| CPU power connector (4+4 pin) | Yes |

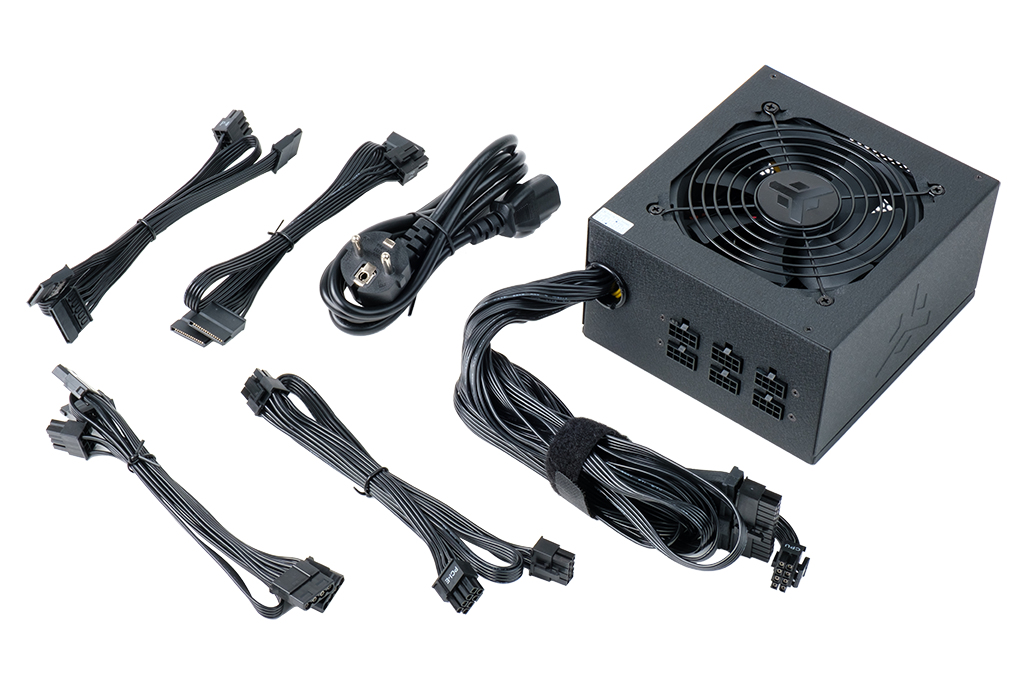

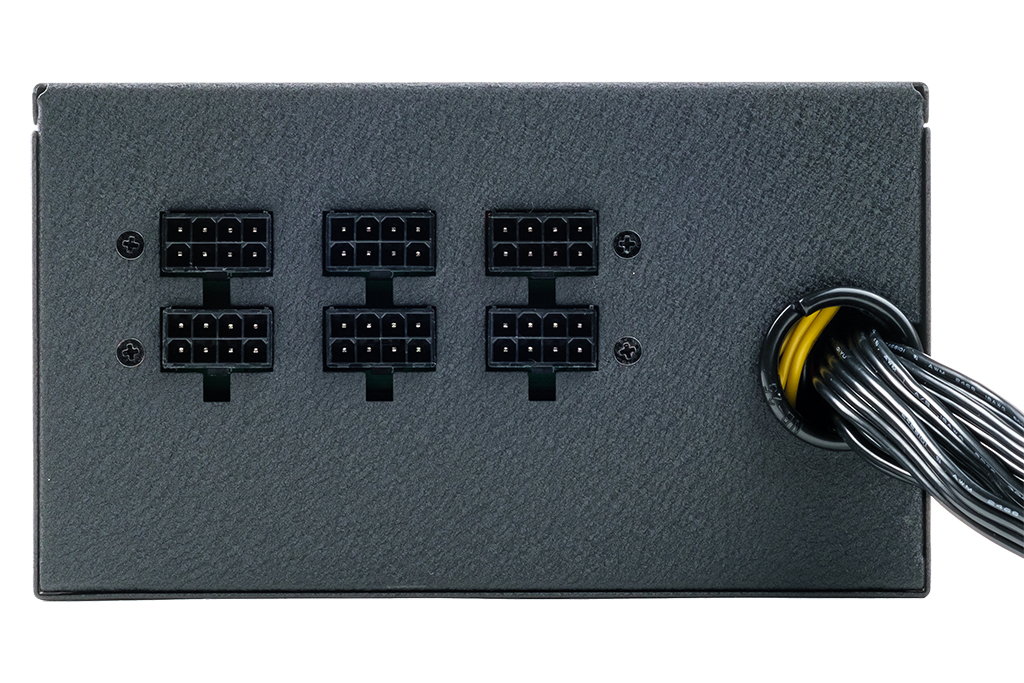

| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.31 |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

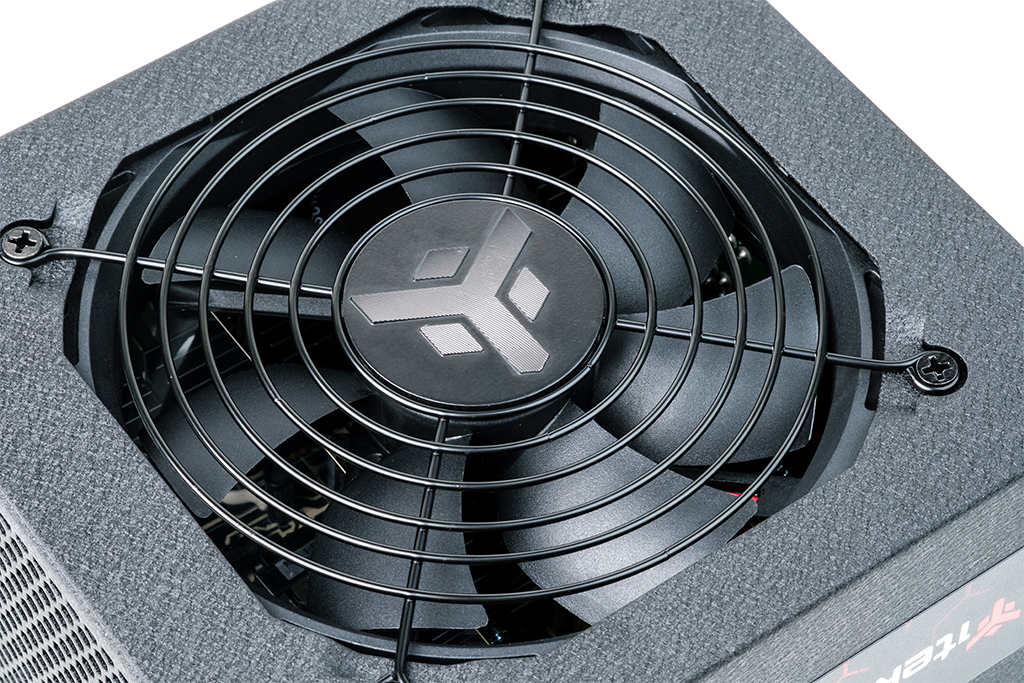

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.24 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
