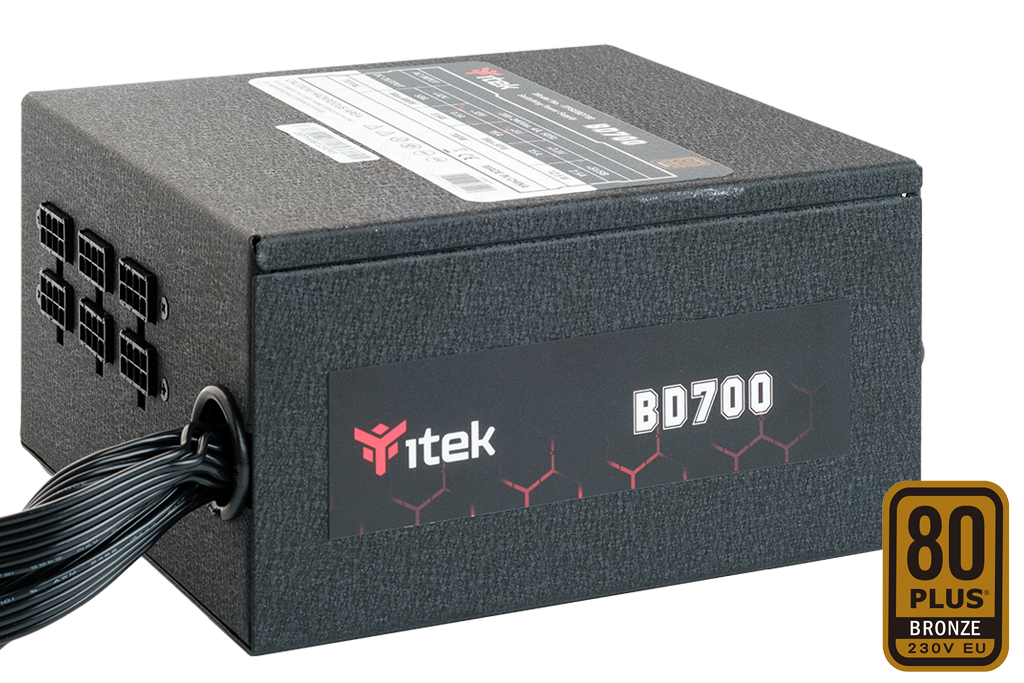

BD700 power supply unit
700 W 24-pin ATX ATX Black
Model BD700Part no. ITPSEBD700EAN 8056157881117
24 specifications
- Weight2.11 kg
- ColourBlack
- Total power700 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width160 mm
Overview
- Weight
- 2.11 kg
- Colour
- Black
- Total power
- 700 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 160 mm
- Brand
- itek
- Category
- Power Supply Unit
- Model
- BD700
- Part number
- ITPSEBD700
- EAN / UPC
- 8056157881117
- Also known as
- itek BD700 power supply unit 700 W 24-pin ATX ATX Black
Specifications
24 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| AC input voltage | 230 V |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 7 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.31 |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.11 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.7 kg |
