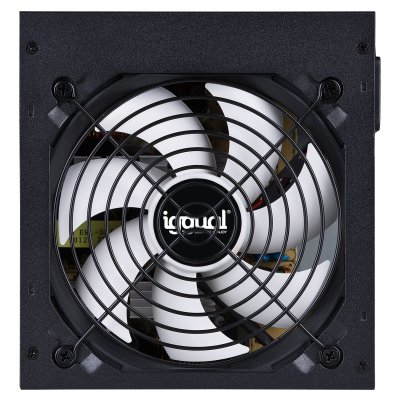

iggual PSI09490 power supply unit
500 W 20+4 pin ATX Black
Model PSI09490EAN 8435364309490
28 specifications
- Noise12 dB
- Weight1.67 kg
- ColourBlack
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 12 dB
- Weight
- 1.67 kg
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- iggual
- Category
- Power Supply Unit
- Model
- PSI09490
- Part number
- PSI09490
- EAN / UPC
- 8435364309490
- Also known as
- iggual PSI09490 power supply unit 500 W 20+4 pin ATX Black
Specifications
28 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V1) | 21 A |
| Max output current (+12V2) | 21 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| CPU P4 connector (4-pin) | 1 |
| Floppy disk drive connector | Yes |
| CPU power connectors (8-pin) | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| Noise level | 12 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 85 mm |
| Height | 160 mm |
| Weight | 1.67 kg |
