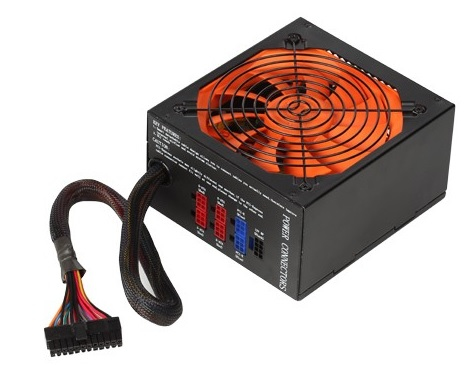

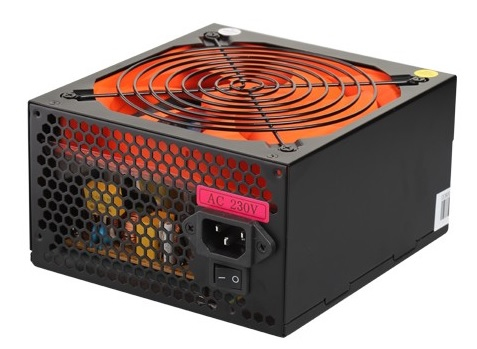

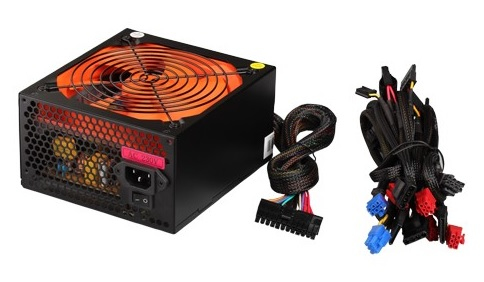

i-tec PS900W power supply unit
900 W 20+4 pin ATX ATX Black
Model PS900WEAN 8594047319642
44 specifications
- Noise28 dB
- Weight1.5 kg
- ColourBlack
- Total power900 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 28 dB
- Weight
- 1.5 kg
- Colour
- Black
- Total power
- 900 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- i-tec
- Category
- Power Supply Unit
- Model
- PS900W
- Part number
- PS900W
- EAN / UPC
- 8594047319642
- Also known as
- i-tec PS900W power supply unit 900 W 20+4 pin ATX ATX Black
Specifications
44 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 900 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Maximum input current (@110V) | +12V,+12V1,+12V2,+3.3V,+5V,+5Vsb |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 160 W |
| Combined power (+12V) | 21 W |
| Combined power (+5V) | 160 W |
| Combined power (+5Vsb) | 21 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 0.5 A |
| Max output current (+12V1) | 21 A |
| Max output current (+12V2) | 33 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 80% |
| Power protection features | Over current, Over power, Over voltage, Short circuit |

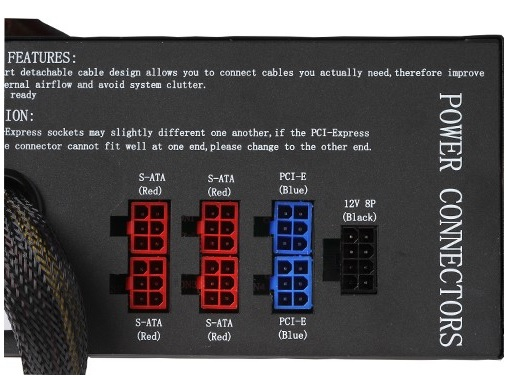

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Noise level | 28 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 14 cm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, TUV, WEEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 162 mm |
| Depth | 150 mm |
| Height | 88 mm |
| Weight | 1.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package width | 262 mm |
| Package depth | 206 mm |
| Package height | 101 mm |
| Package weight | 2.16 kg |
| Package type | Box |
