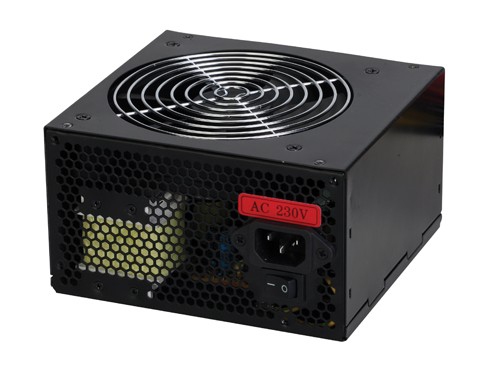

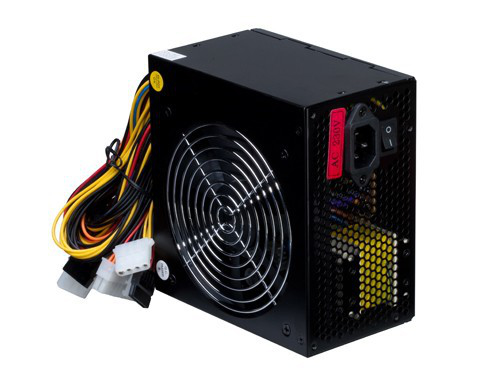

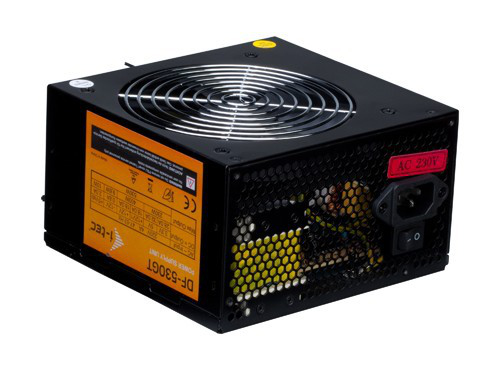

i-tec DF530GT power supply unit
530 W ATX Black
Model DF530GTEAN 8594047316566
35 specifications
- ColourBlack
- Total power530 W
- Number of SATA power connectors3
- PurposePC
Overview
- Colour
- Black
- Total power
- 530 W
- Number of SATA power connectors
- 3
- Purpose
- PC
- Brand
- i-tec
- Category
- Power Supply Unit
- Model
- DF530GT
- Part number
- DF530GT
- EAN / UPC
- 8594047316566
- Also known as
- i-tec DF530GT power supply unit 530 W ATX Black
Specifications
35 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 530 W |
| Input current | 4 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 230 W |
| Combined power (+12V) | 18 W |
| Combined power (+5V) | 230 W |
| Combined power (-12V) | 0.8 W |
| Combined power (+5Vsb) | 2 W |
| Max output current (+3.3V) | 28 A |
| Max output current (+12V) | 18 A |
| Max output current (+5V) | 32 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 2 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.2 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, TUV, WEEE, RoHS |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.63 kg |
Other features
| Specification | Value |
|---|---|
| Output voltage note | 3.3V, 5V, +12V1, +12V2, -12V, +5Vsb |
| Package dimensions (WxDxH) | 245 x 180 x 100 mm |
| Power over Ethernet (PoE) | No |
| Power supply type | AC/DC |
| Redundant power supply (RPS) support | No |
