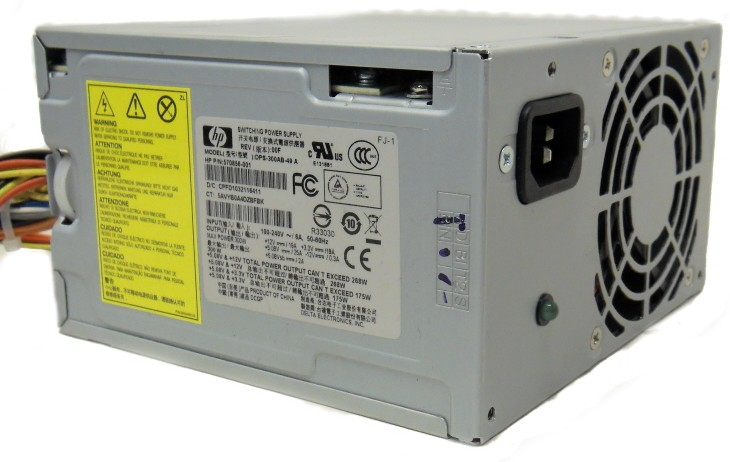

HP 570856-001 power supply unit
300 W 24-pin ATX ATX Silver
Model 570856-001
19 specifications
- ColourSilver
- Total power300 W
- Motherboard power connector24-pin ATX
- PurposePC
Overview
- Colour
- Silver
- Total power
- 300 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Brand
- HP
- Category
- Power Supply Unit
- Model
- 570856-001
- Part number
- 570856-001
- Also known as
- HP 570856-001 power supply unit 300 W 24-pin ATX ATX Silver
Specifications
19 specifications in 4 groups
Power
| Specification | Value |
|---|---|
| Total power | 300 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 6 A |
| Maximum input current (@110V) | +12V,+3.3V,+5V,+5Vsb,-12V |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 19 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
