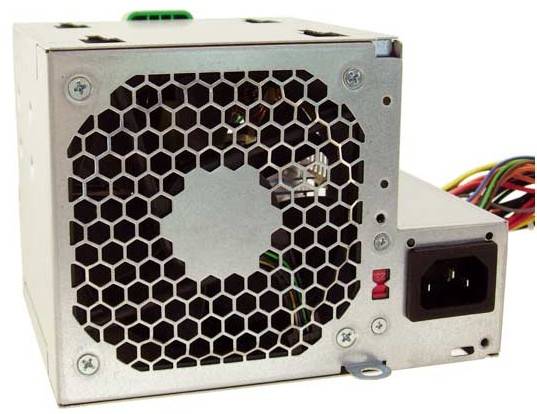

HP 404796-001 power supply unit
240 W 24-pin ATX Silver
Model 404796-001
23 specifications
- ColourSilver
- Total power240 W
- Motherboard power connector24-pin ATX
- PurposePC
Overview
- Colour
- Silver
- Total power
- 240 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Brand
- HP
- Category
- Power Supply Unit
- Model
- 404796-001
- Part number
- 404796-001
- Also known as
- HP 404796-001 power supply unit 240 W 24-pin ATX Silver
Specifications
23 specifications in 4 groups
Power
| Specification | Value |
|---|---|
| Total power | 240 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 6 A |
| Maximum input current (@110V) | +12V,+3.3V,+5V,-12V |
| Power Factor Correction (PFC) type | Passive |
| Max output current (+3.3V) | 15 A |
| Max output current (+12V) | 7 A |
| Max output current (+5V) | 17 A |
| Max output current (-12V) | 0.15 A |
| Efficiency | 80% |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Compatible products | HP Business Desktop DC5700 / DC5750 SFF |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
