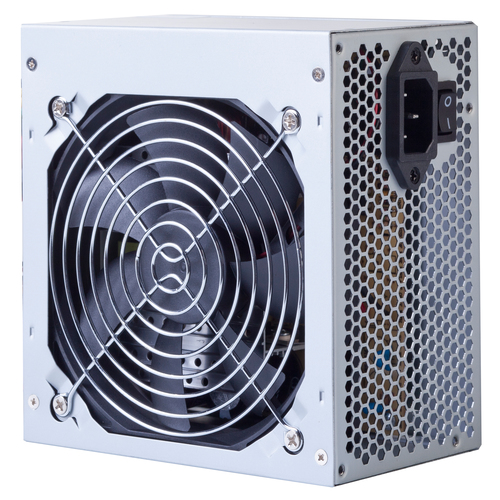

Hiditec PSX 500W
Model PSX 500WPart no. PS00123599EAN 8436545690017
26 specifications
- Noise21 dB
- Weight1.04 kg
- ColourAluminium
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 21 dB
- Weight
- 1.04 kg
- Colour
- Aluminium
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Hiditec
- Category
- Power Supply Unit
- Model
- PSX 500W
- Part number
- PS00123599
- EAN / UPC
- 8436545690017
- Also known as
- Hiditec PSX 500W power supply unit 20+4 pin ATX ATX Aluminium
Specifications
26 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 115 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 16 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over voltage, Overload, Under power |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| ATX power connector (20+4 pin) | Yes |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.2 |
| Noise level | 21 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Aluminium |
| Fan diameter | 12 cm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 85 mm |
| Height | 160 mm |
| Weight | 1.04 kg |
