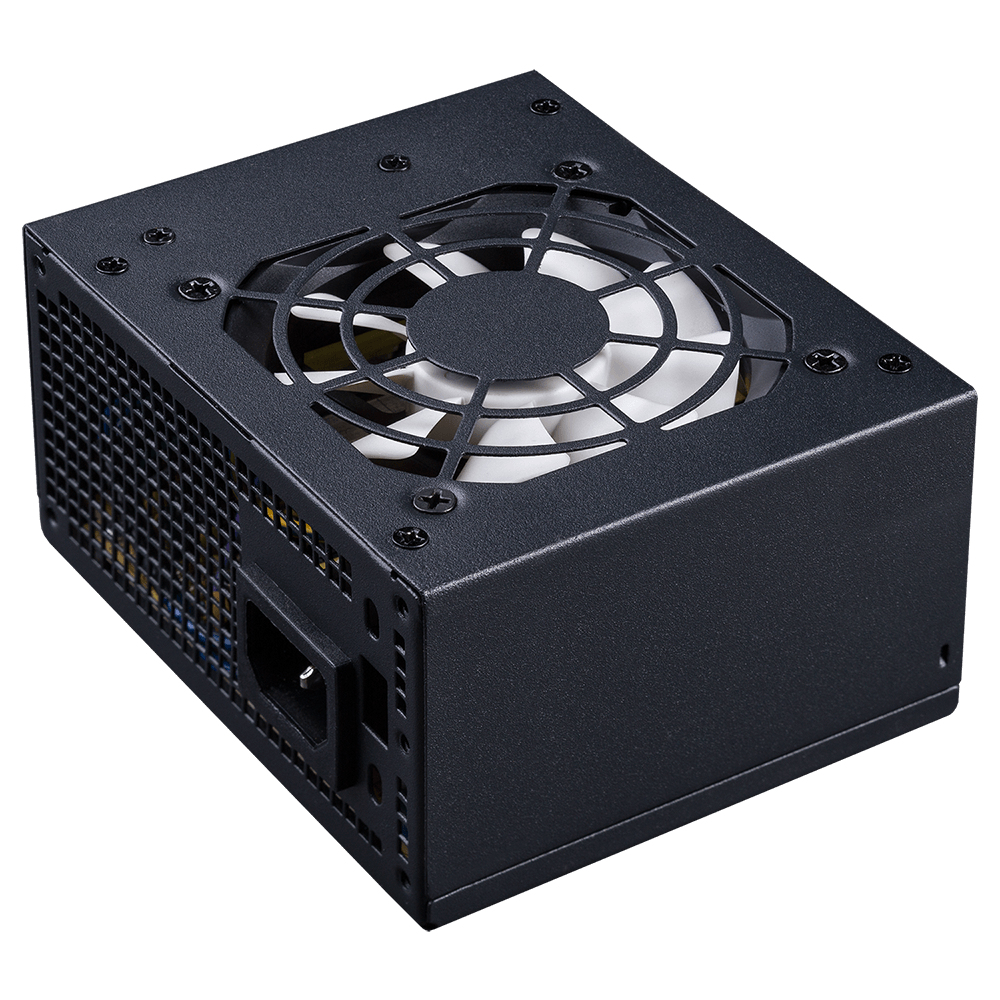

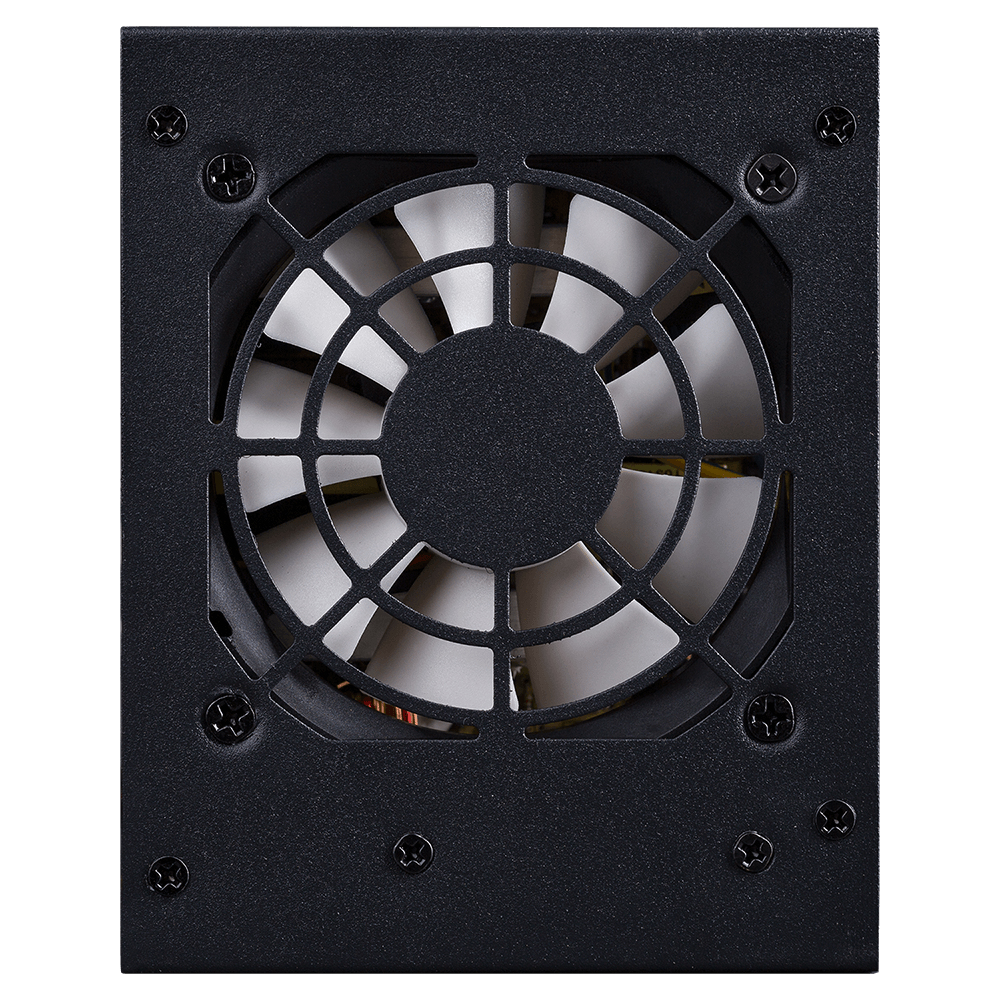

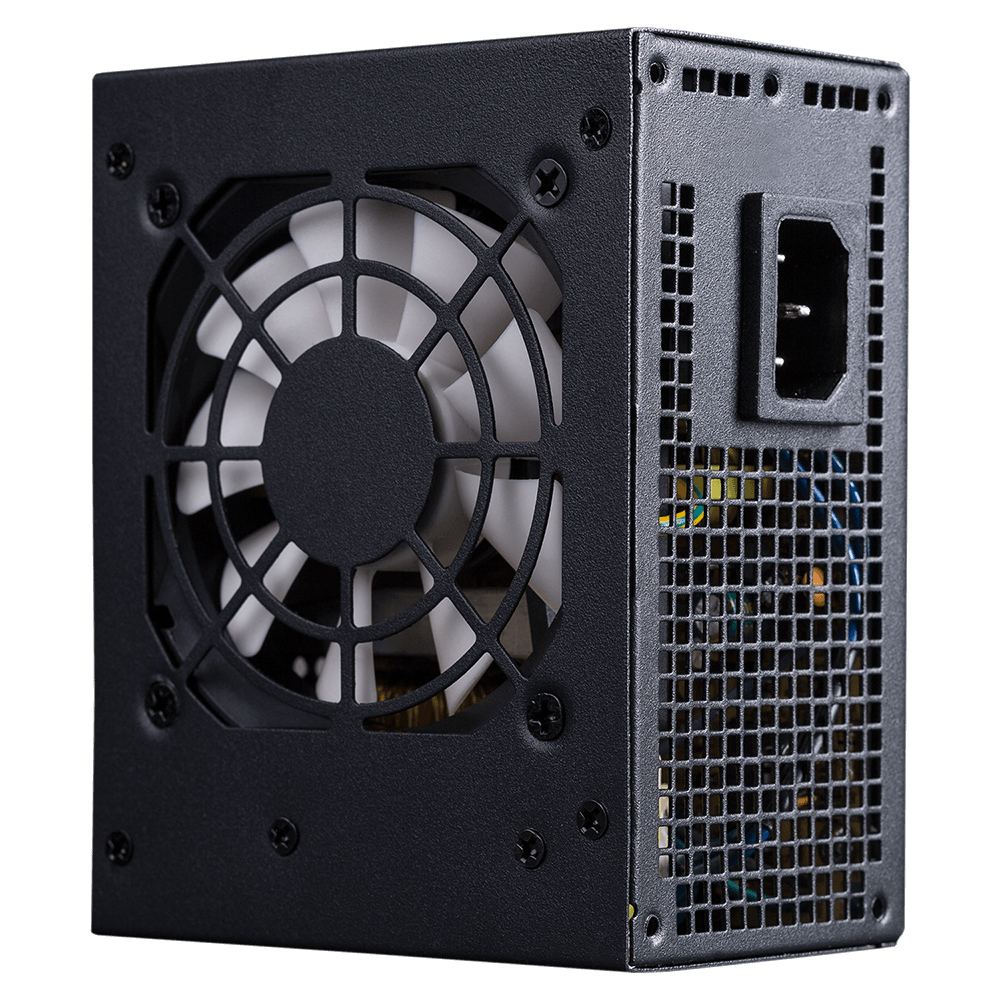

PMX500 power supply unit
500 W 20+4 pin ATX ATX Black
Model PMX500Part no. PSU010018
30 specifications
- Noise14 dB
- Weight93 g
- ColourBlack
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 14 dB
- Weight
- 93 g
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Hiditec
- Category
- Power Supply Unit
- Model
- PMX500
- Part number
- PSU010018
- Also known as
- Hiditec PMX500 power supply unit 500 W 20+4 pin ATX ATX Black
Specifications
30 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Passive |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 20 A |
| Max output current (+12V1) | 0.5 A |
| Max output current (+5V) | 25 A |
| Max output current (+5Vsb) | 2 A |
| Power protection features | Over voltage, Overload, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | Yes |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Supported motherboard form factors | micro ATX |
| ATX version | 2.31 |
| Noise level | 14 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHs |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 100 mm |
| Height | 63 mm |
| Weight | 93 g |
