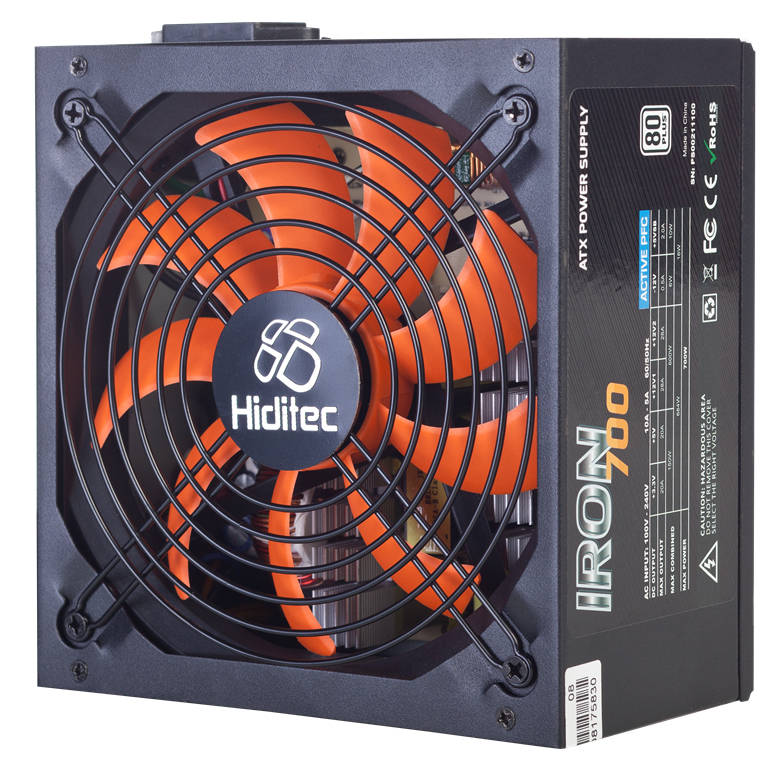

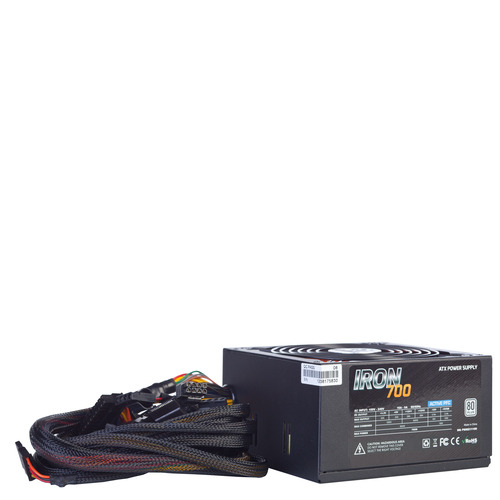

Hiditec Iron 700W 80+
Model Iron 700W 80+Part no. PS00211100EAN 8436545690055
43 specifications
- Noise17 dB
- Weight150 g
- ColourBlack
- Total power700 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 17 dB
- Weight
- 150 g
- Colour
- Black
- Total power
- 700 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Hiditec
- Category
- Power Supply Unit
- Model
- Iron 700W 80+
- Part number
- PS00211100
- EAN / UPC
- 8436545690055
- Also known as
- Hiditec Iron 700W 80+ power supply unit 20+4 pin ATX ATX Black
Specifications
43 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| AC input voltage | 220 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 600 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 0.5 W |
| Combined power (+5Vsb) | 2 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 56 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2 A |
| Efficiency | 90% |
| Power protection features | Over current, Over voltage, Overheating, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU P4 connector (4-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU power connectors (8-pin) | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.31 |
| Noise level | 17 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 150 mm |
| Height | 85 mm |
| Weight | 150 g |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
