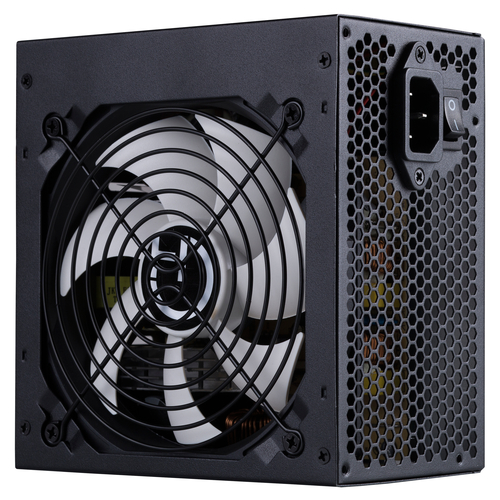

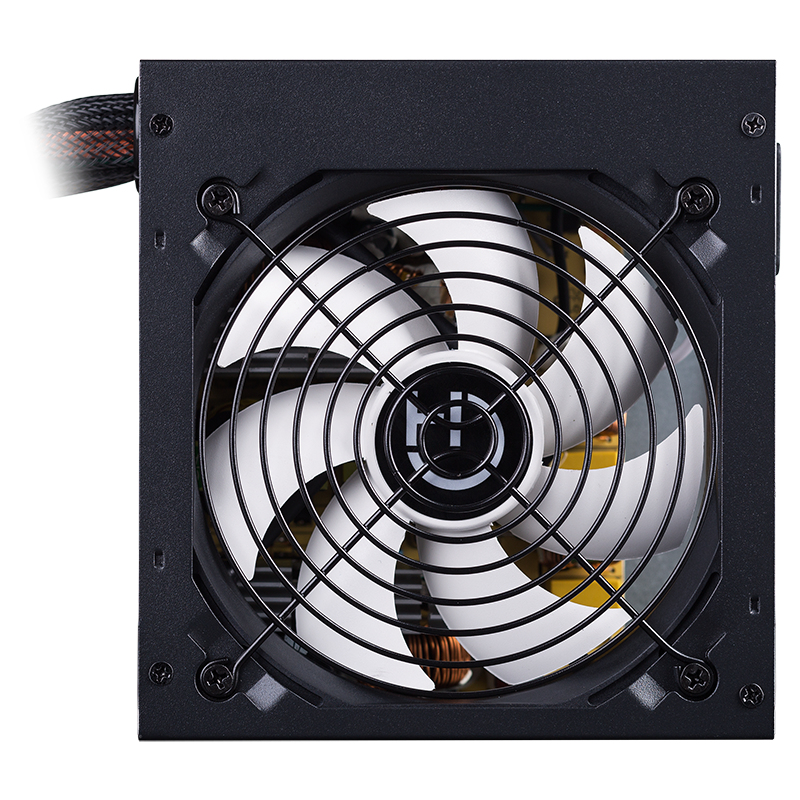

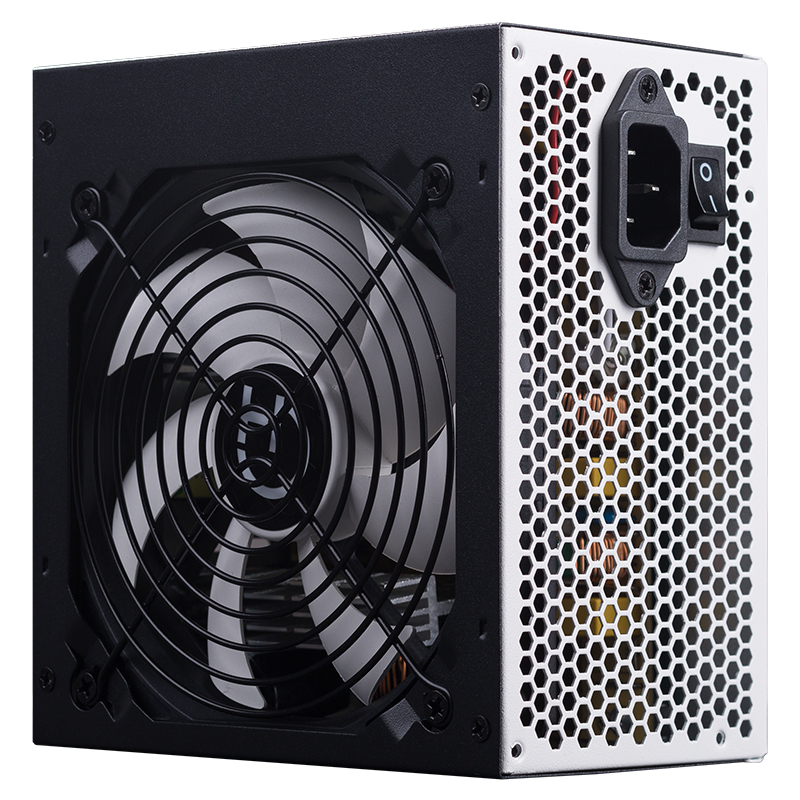

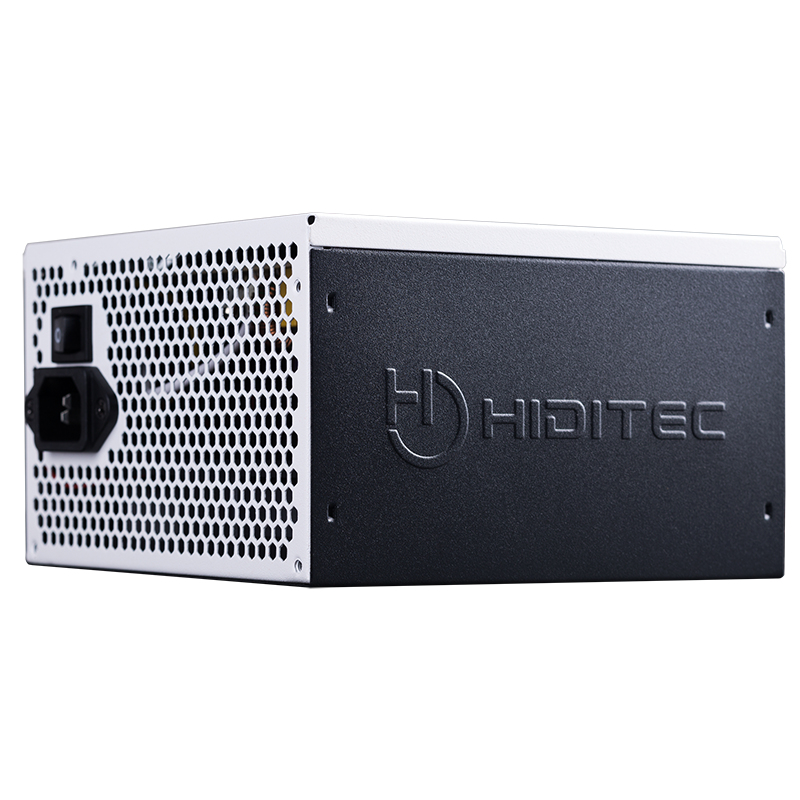

Hiditec EVO600X power supply unit
600 W 20+4 pin ATX ATX Black, Silver
Model EVO600XPart no. PSU010005EAN 8436545690918
34 specifications
- Noise14 dB
- Weight1.3 kg
- ColourBlack, Silver
- Total power600 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 14 dB
- Weight
- 1.3 kg
- Colour
- Black, Silver
- Total power
- 600 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Hiditec
- Category
- Power Supply Unit
- Model
- EVO600X
- Part number
- PSU010005
- EAN / UPC
- 8436545690918
- Also known as
- Hiditec EVO600X power supply unit 600 W 20+4 pin ATX ATX Black, Silver
Specifications
34 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| AC input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 46 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 85% |
| Power protection features | Over voltage, Overload, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.31 |
| Noise level | 14 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 85 mm |
| Weight | 1.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
