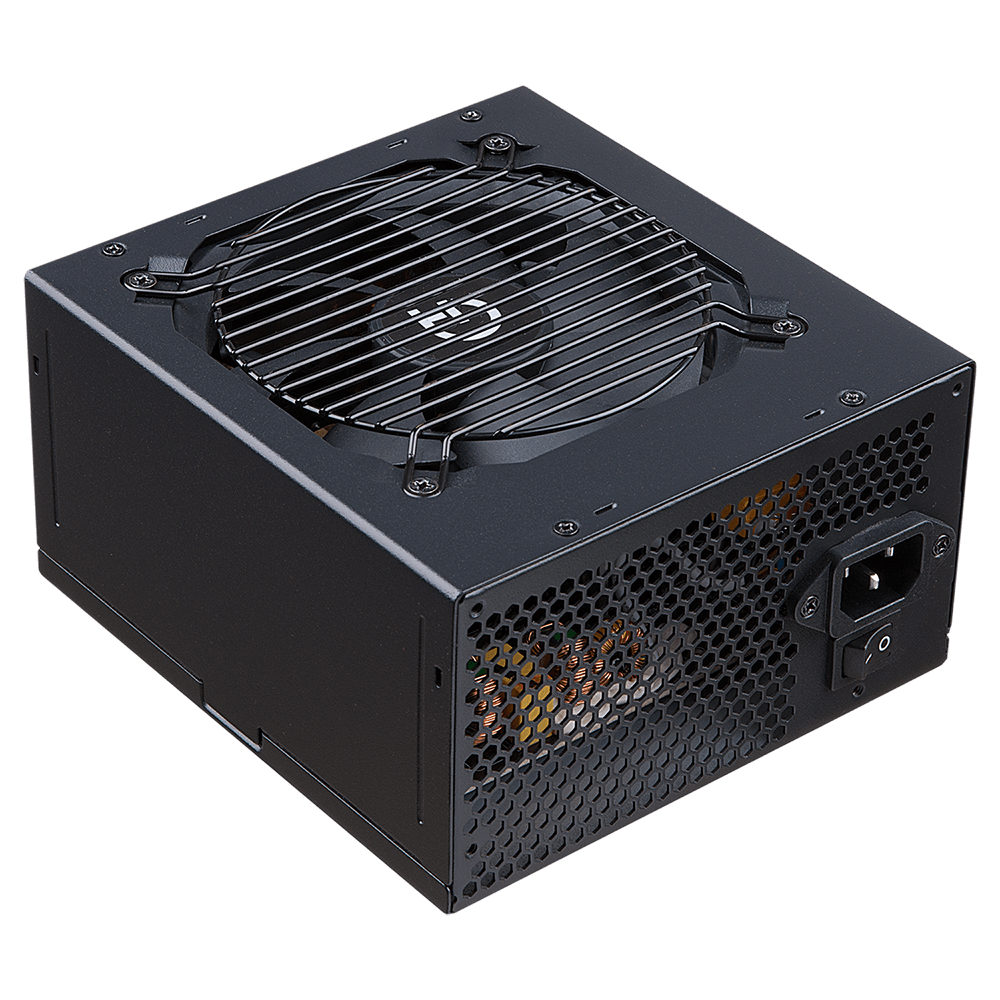

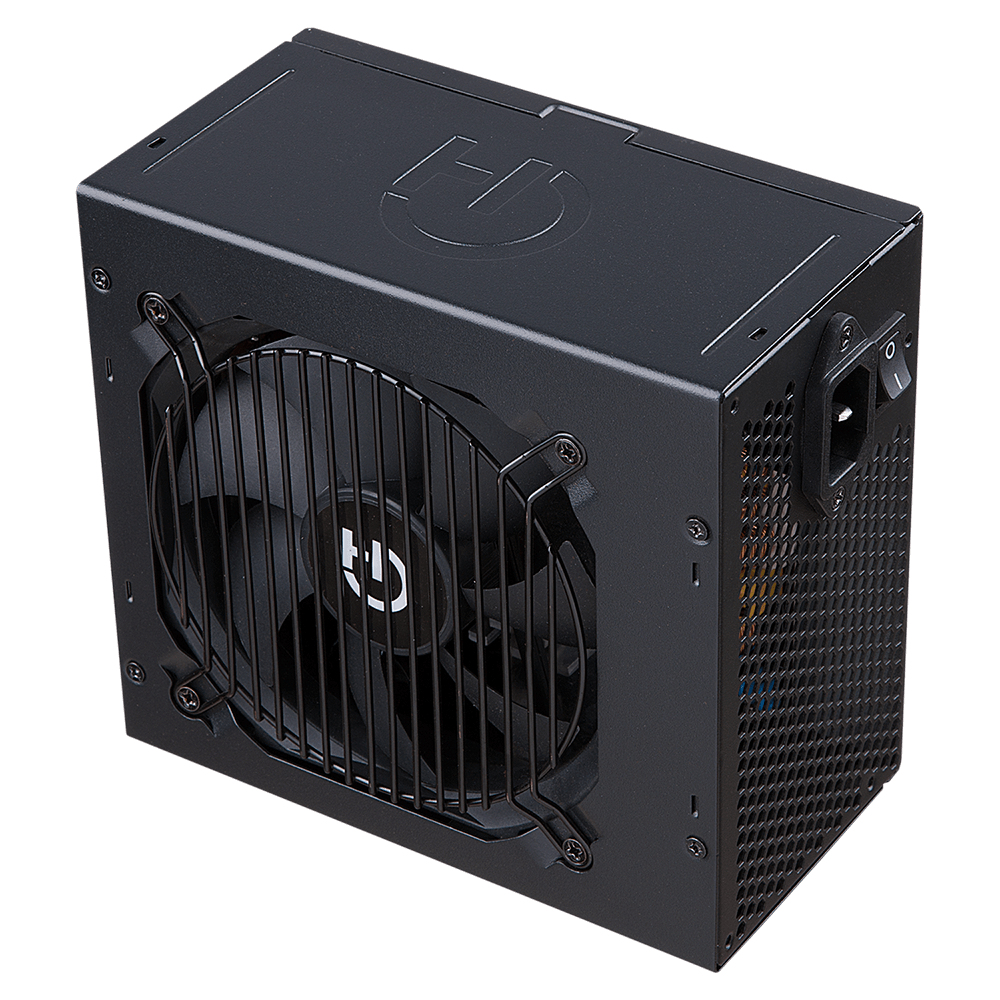

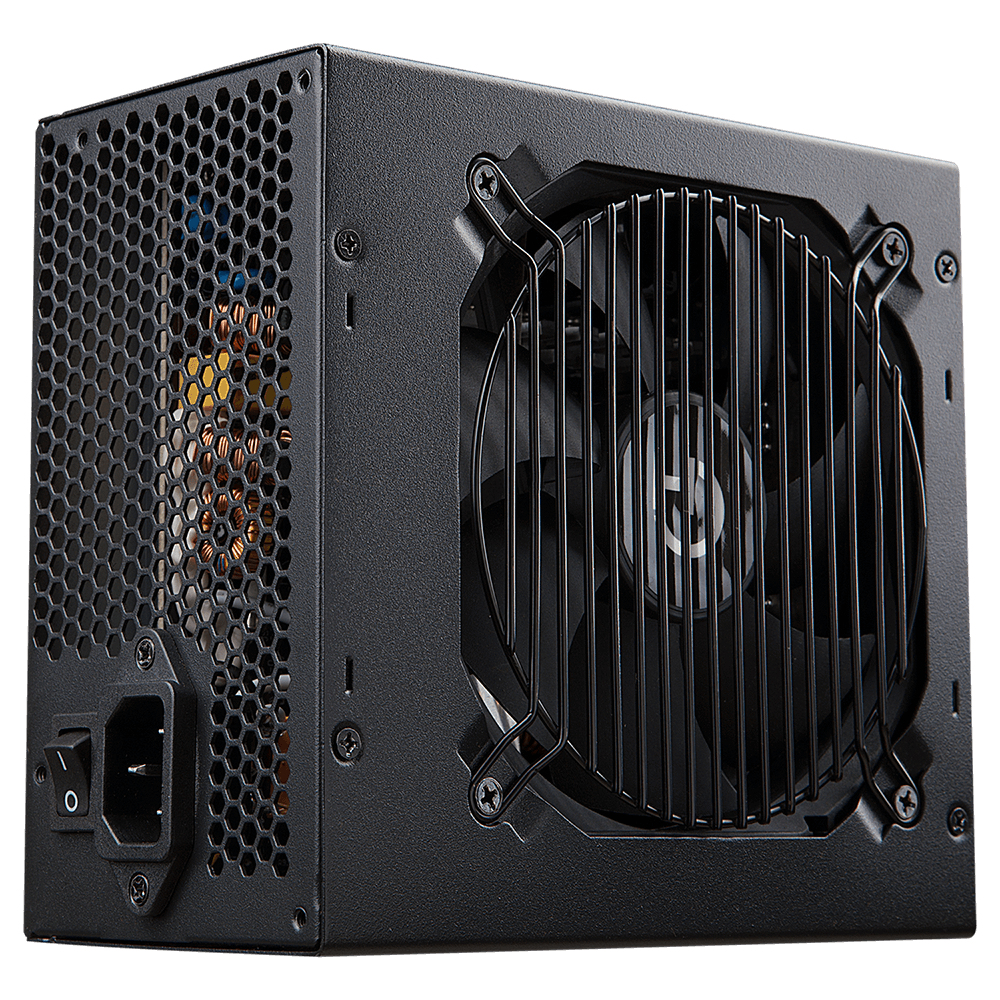

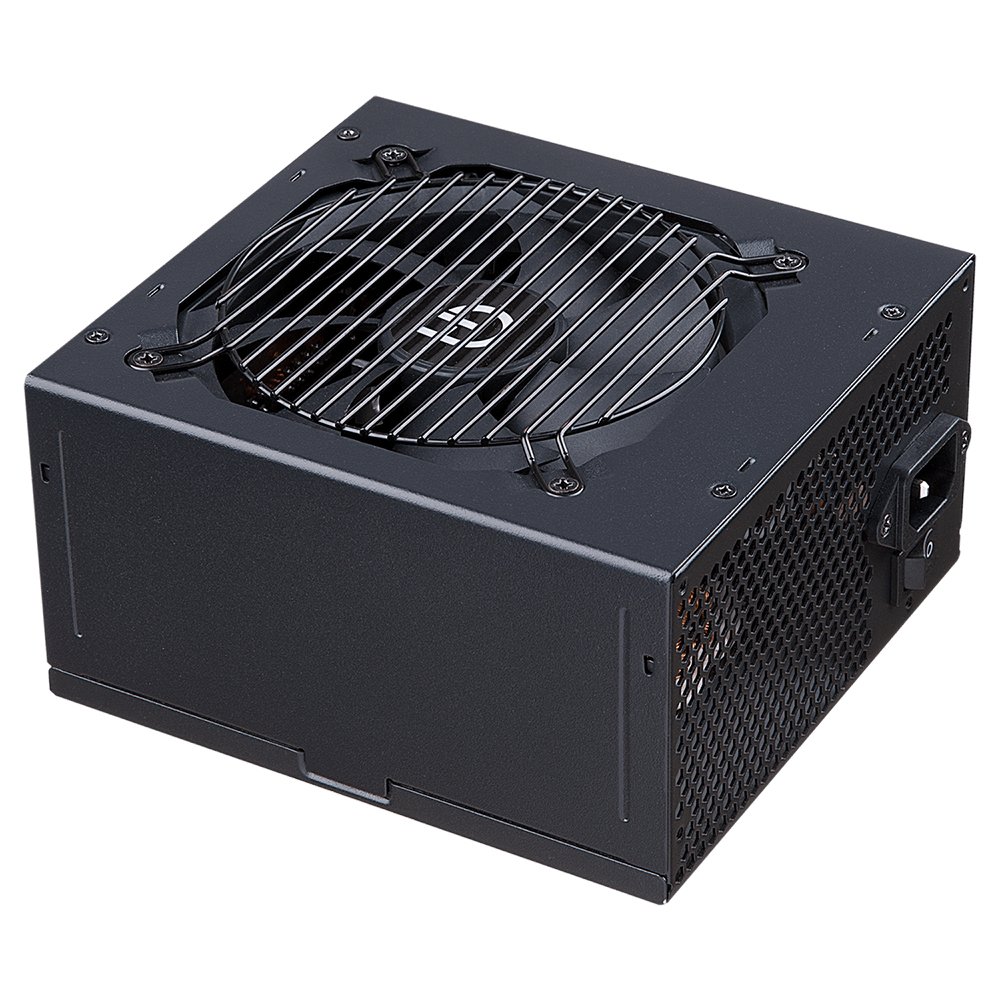

BZM650 power supply unit
650 W 20+4 pin ATX ATX Black
Model BZM650Part no. PSU010020EAN 8436545692905
40 specifications
- Weight1.75 kg
- ColourBlack
- Total power650 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 1.75 kg
- Colour
- Black
- Total power
- 650 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- Hiditec
- Category
- Power Supply Unit
- Model
- BZM650
- Part number
- PSU010020
- EAN / UPC
- 8436545692905
- Also known as
- Hiditec BZM650 power supply unit 650 W 20+4 pin ATX ATX Black
Specifications
40 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over voltage, Overload, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|

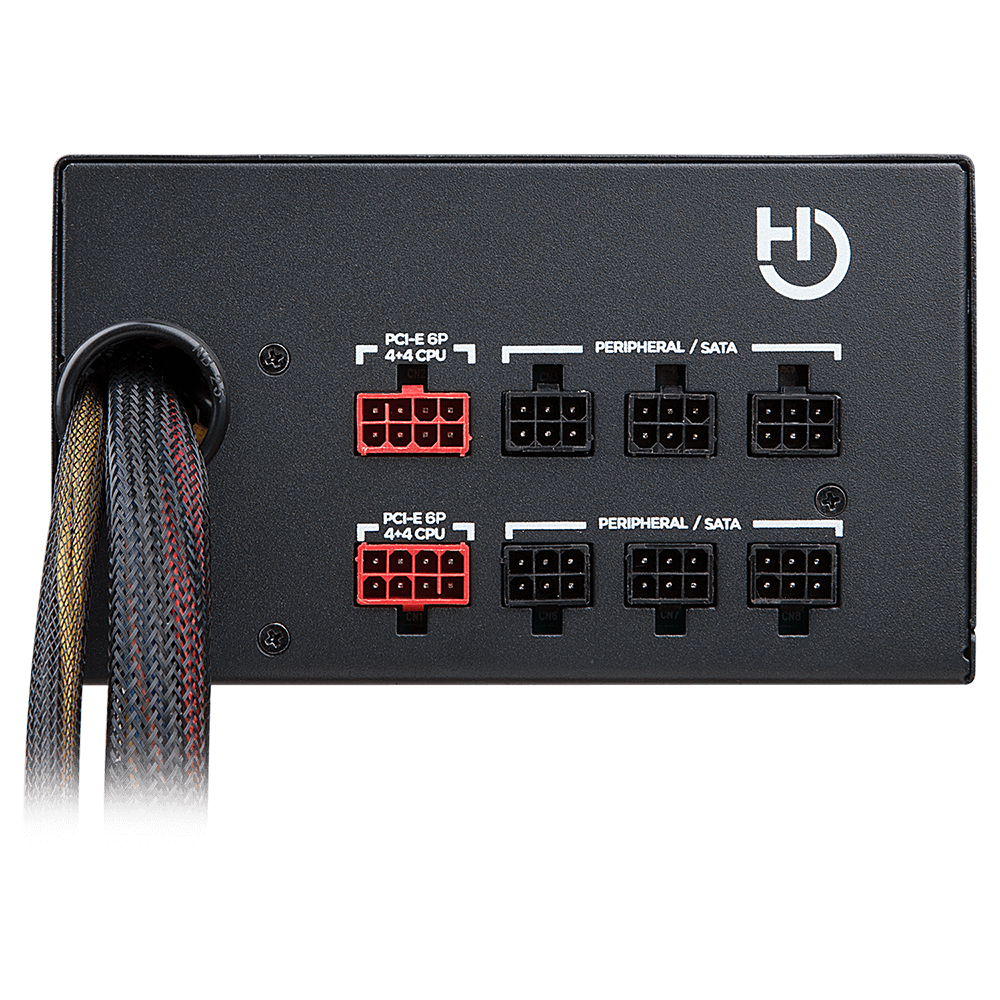

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 5 |
| SATA power cable length | 600 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 600 mm |
| PCI Express power connectors (6-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 60 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 60 cm |
| Floppy disk drive cable length | 55 cm |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.4 |
| Silent mode | Yes |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHs |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 85 mm |
| Height | 160 mm |
| Weight | 1.75 kg |
