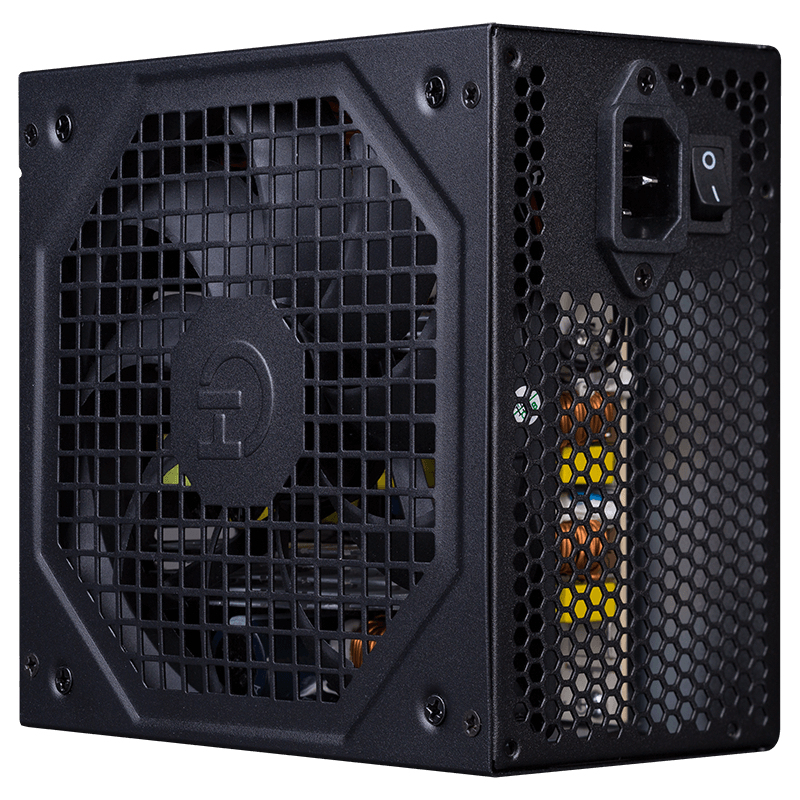

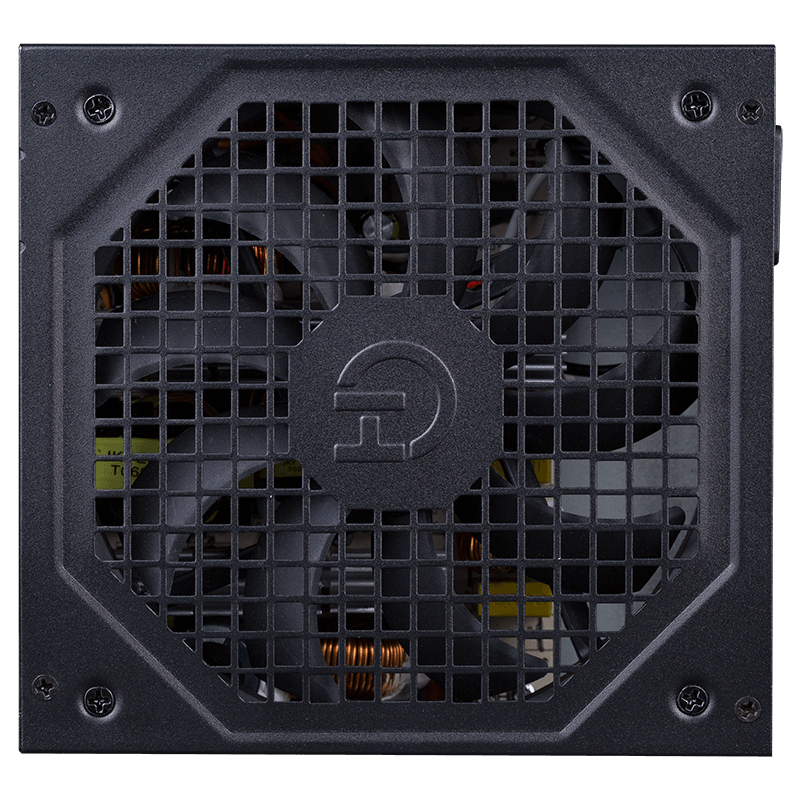

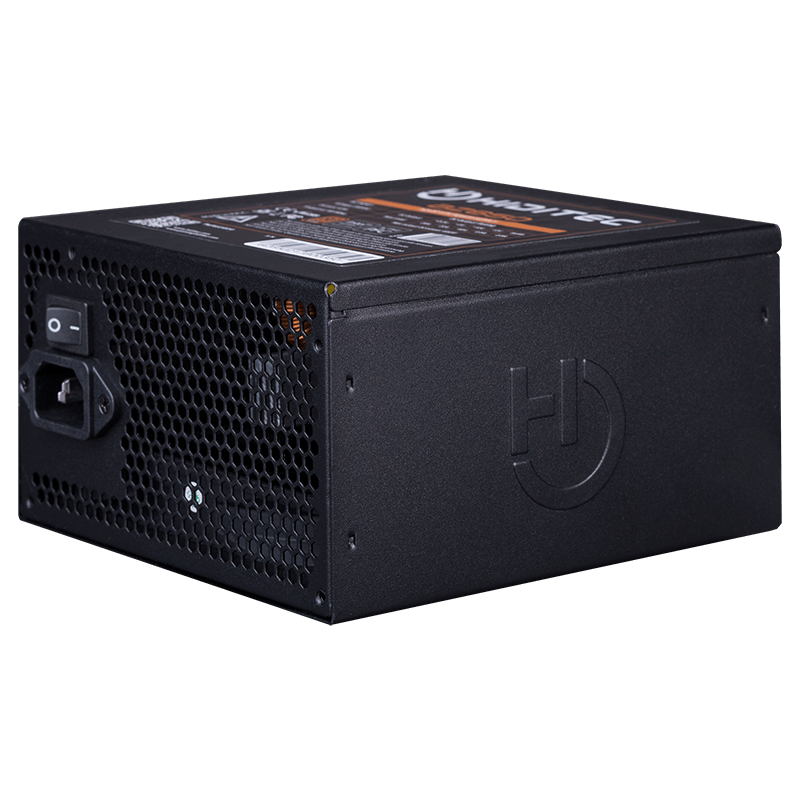

Hiditec BZ-550W 80Plus Bronze
Model BZ-550W 80Plus BronzePart no. PSU010009EAN 8436545691175
39 specifications
- Weight1.75 kg
- ColourBlack
- Total power550 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 1.75 kg
- Colour
- Black
- Total power
- 550 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- Hiditec
- Category
- Power Supply Unit
- Model
- BZ-550W 80Plus Bronze
- Part number
- PSU010009
- EAN / UPC
- 8436545691175
- Also known as
- Hiditec BZ-550W 80Plus Bronze power supply unit 20+4 pin ATX ATX Black
Specifications
39 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 45 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 6 A |
| Max output current (+5Vsb) | 15 A |
| Efficiency | 85% |
| Power protection features | Over voltage, Overload, Under power |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 50 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 600,750,900 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 600,750,900 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power cable length | 57 cm |
| Floppy disk drive cable length | 100 cm |
| Floppy disk drive connector | Yes |
| CPU power connectors (8-pin) | 1 |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.4 |
| Silent mode | Yes |
| Mean time between failures (MTBF) | 80000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 85 mm |
| Weight | 1.75 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
