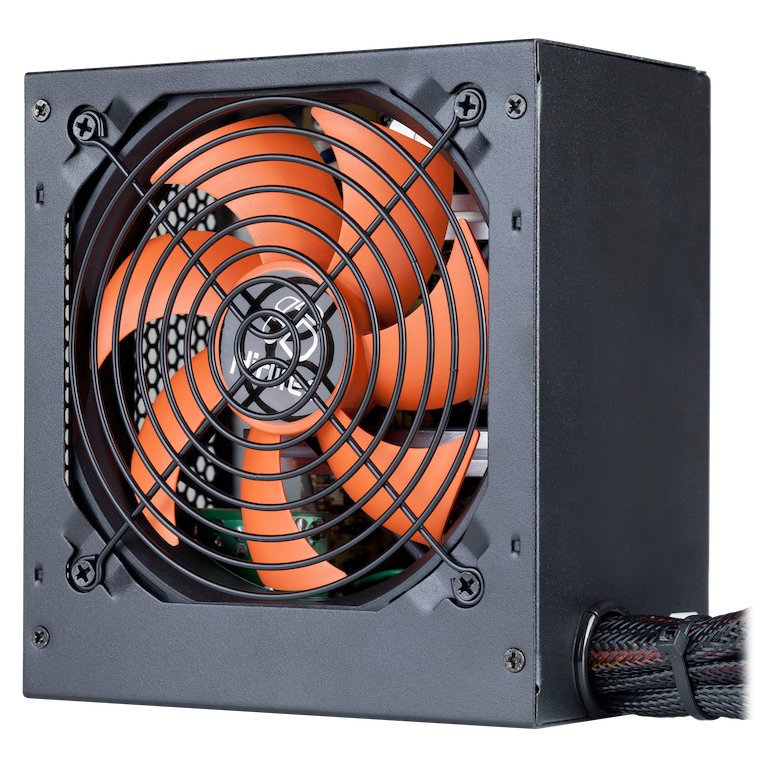

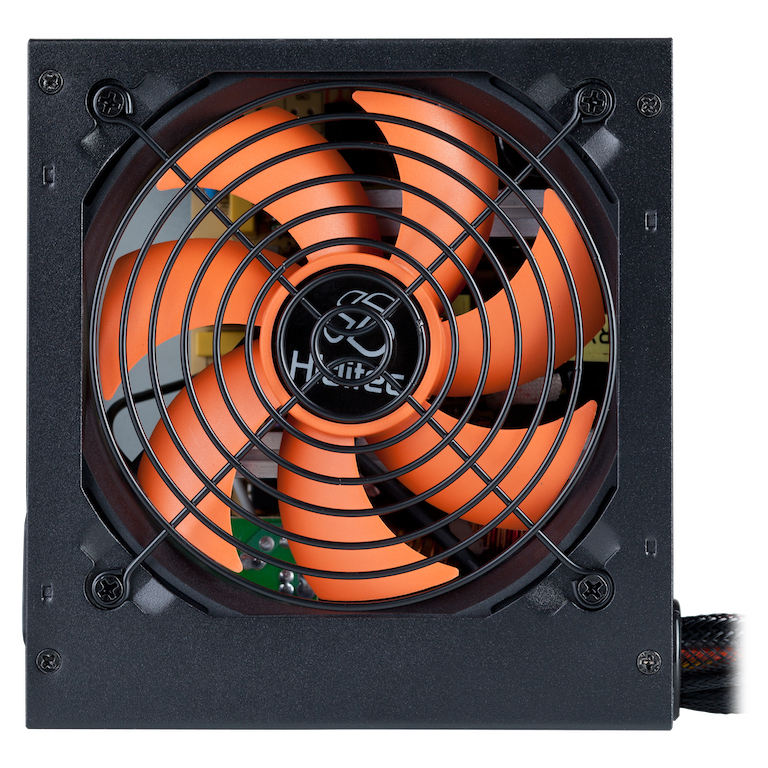

Hiditec Artica power supply unit
500 W 20+4 pin ATX ATX Black
Model ArticaPart no. PS00120503EAN 2529041312340
39 specifications
- Noise19 dB
- Weight1.04 kg
- ColourBlack
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 19 dB
- Weight
- 1.04 kg
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Hiditec
- Category
- Power Supply Unit
- Model
- Artica
- Part numbers
- PS00120503, PSU010002
- EAN / UPC
- 2529041312340, 8436545690277, 8436545690659
- Also known as
- Hiditec Artica power supply unit 500 W 20+4 pin ATX ATX Black
Specifications
39 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 115 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | +12V |
| Power Factor Correction (PFC) type | Passive |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 460 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 2.5 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 42 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over voltage, Overload, Under power |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.31 |
| Noise level | 19 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, RoHs |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 85 mm |
| Height | 160 mm |
| Weight | 1.04 kg |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
