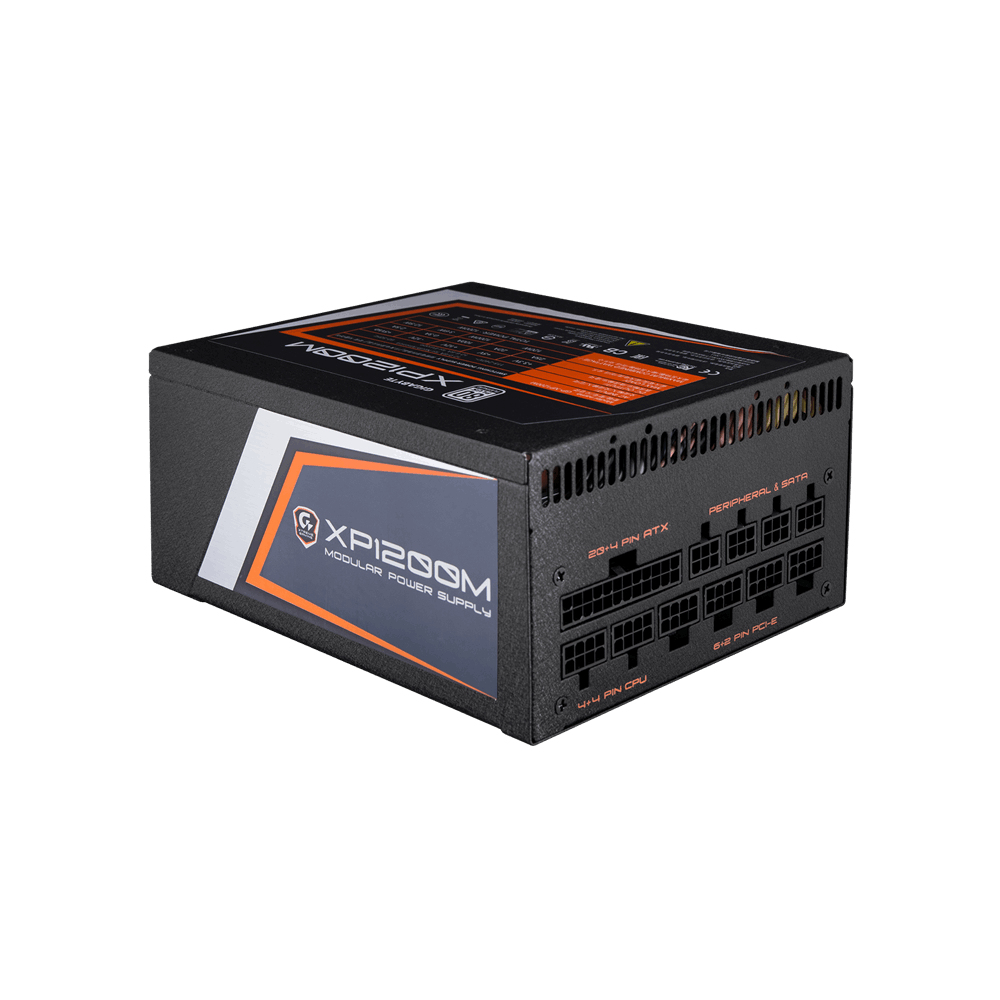

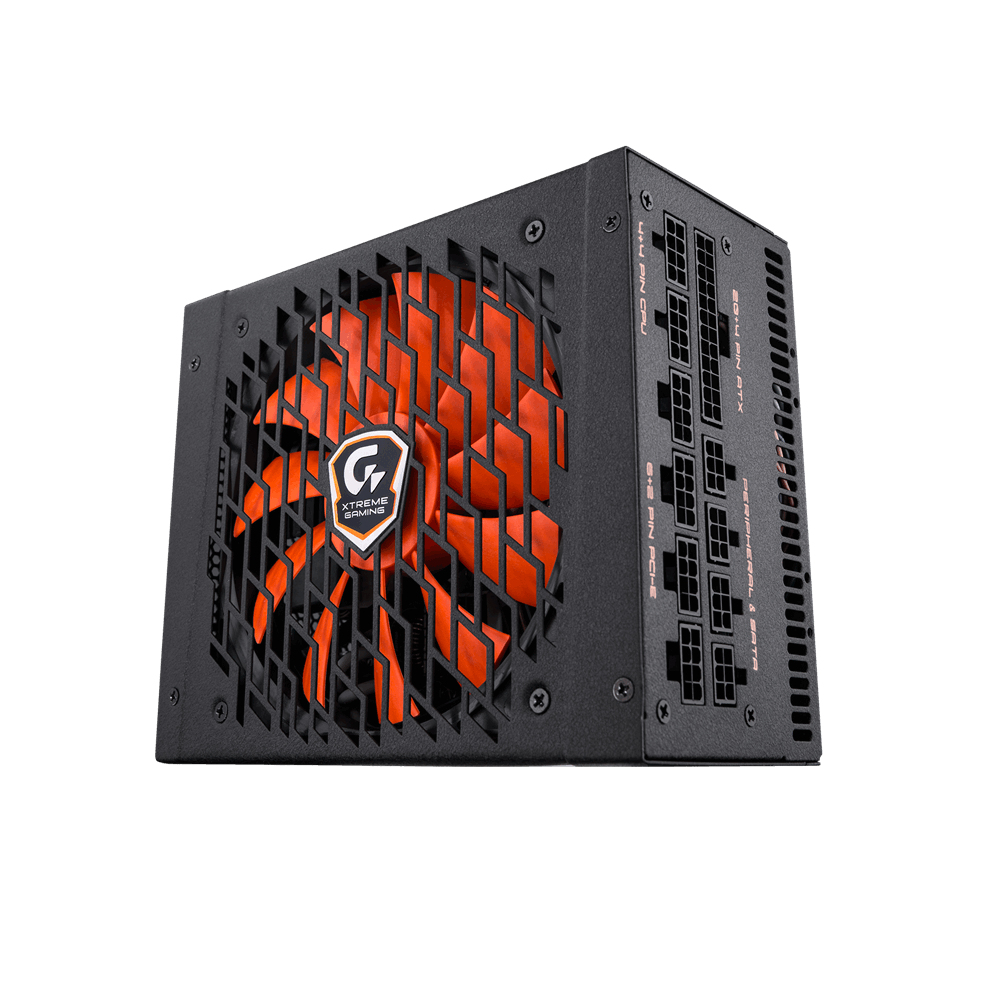

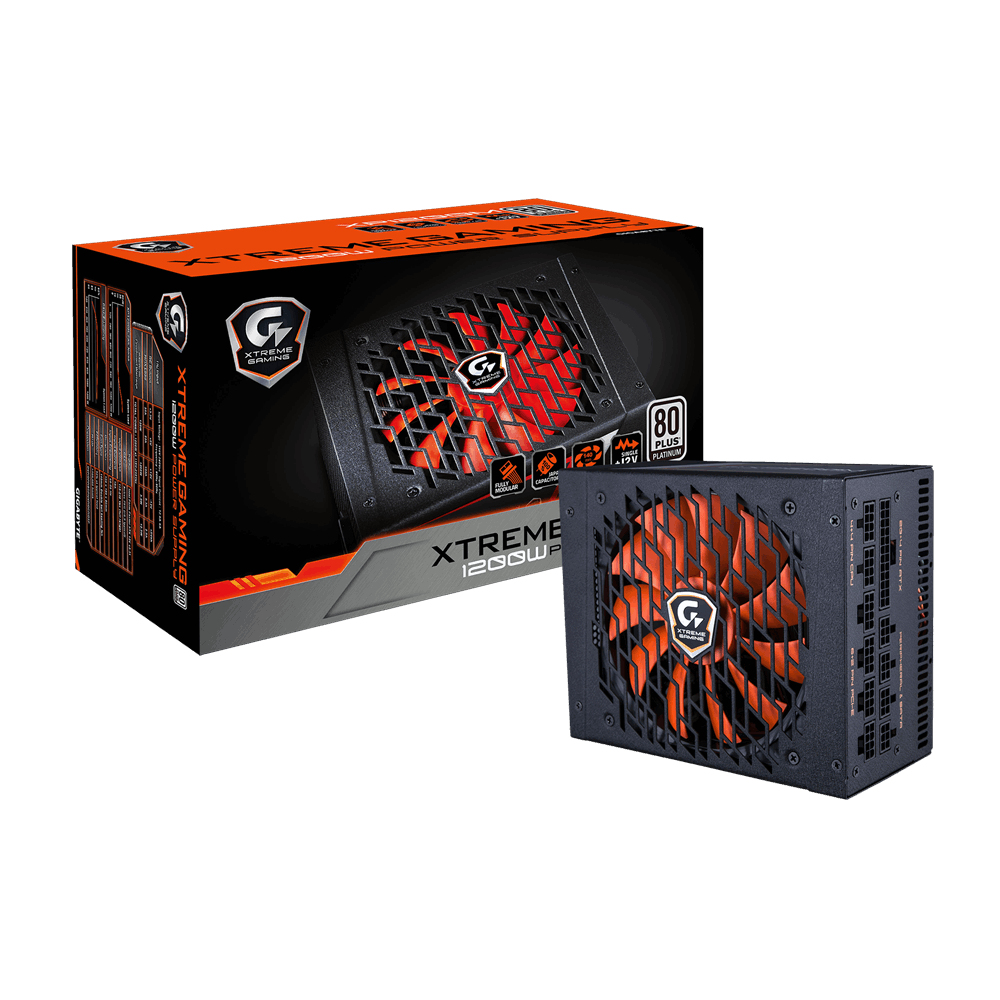

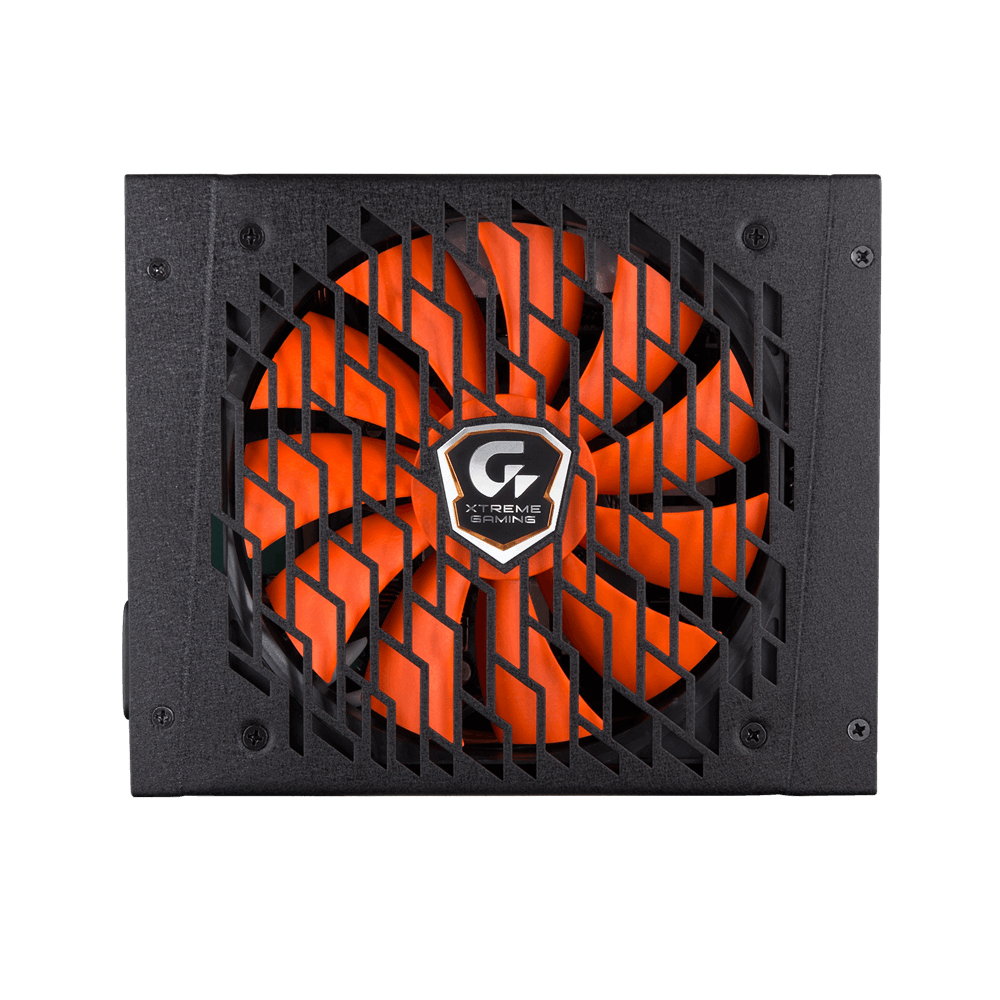

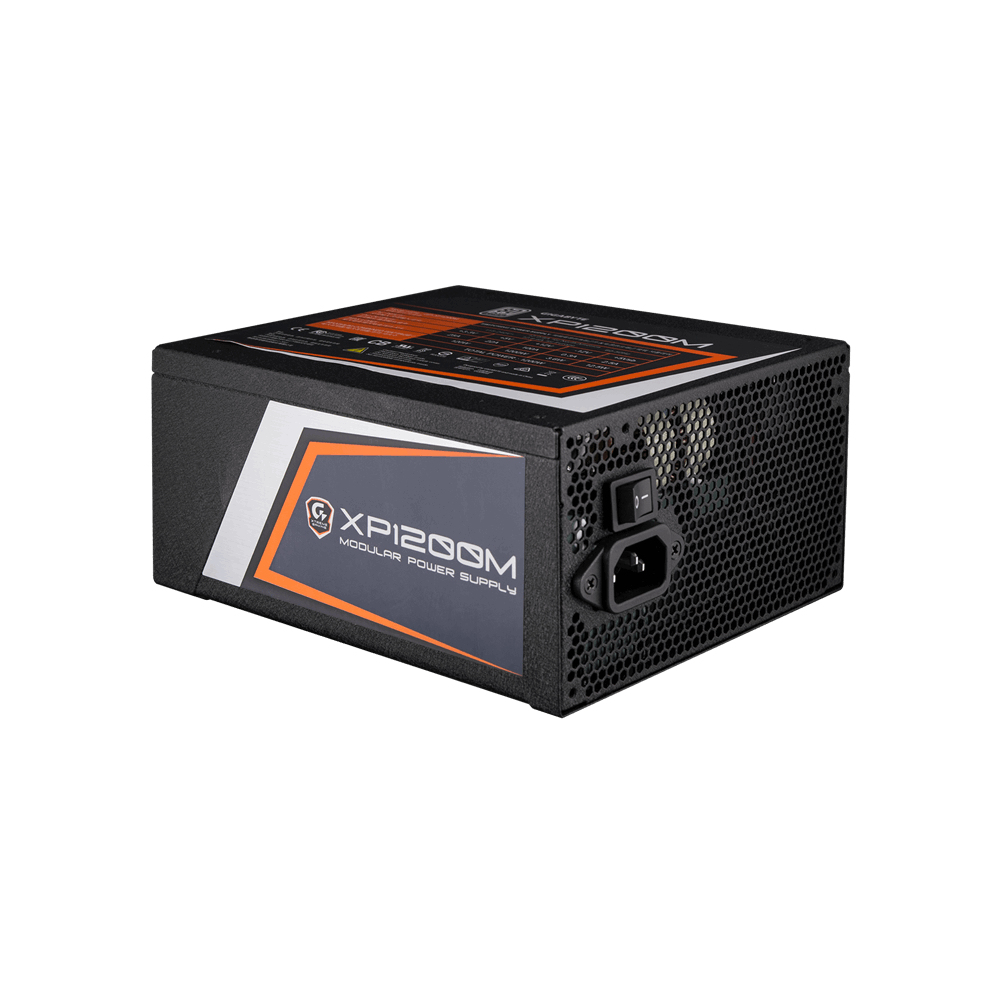

GIGABYTE XP-1200M power supply unit

GIGABYTE XP-1200M power supply unit

1200 W 20+4 pin ATX ATX Black, Orange

Model XP-1200MPart no. 9JXP1200M-00-10EAN 4719331549237

45 specifications
  • ColourBlack, Orange
  • Total power1200 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
  • Width180 mm
See all specifications

Overview

Colour
Black, Orange
Total power
1200 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Width
180 mm
Brand
GIGABYTE
Model
XP-1200M
Part number
9JXP1200M-00-10
EAN / UPC
4719331549237
Also known as
GIGABYTE XP-1200M power supply unit 1200 W 20+4 pin ATX ATX Black, Orange

Specifications

45 specifications in 6 groups

Power

Total power1200 W
AC input voltage115 - 240 V
AC input frequency50 - 60 Hz
Input current10 A
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)120 W
Combined power (+12V)120 W
Combined power (+5V)1200 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)12.5 W
Max output current (+3.3V)25 A
Max output current (+12V)100 A
Max output current (+5V)22 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)2.5 A
Efficiency92%
Power protection featuresOver current, Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector20+4 pin ATX
Motherboard power cable length70 cm
Number of SATA power connectors12
SATA power cable length150,550 mm
Peripheral (Molex) power connectors (4-pin)8
Peripheral (Molex) power cable length150,550 mm
PCI Express power connectors (6+2 pin)6
PCI Express power cable length65 cm
CPU power connector (4+4 pin)Yes
CPU power cable length80 cm
ATX power connector (20+4 pin)Yes
Floppy disk drive cable length10 cm
Floppy disk drive connectorYes
Cabling typeFully-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Platinum
ATX version2.31
Bearing technologyBall bearing
Mean time between failures (MTBF)100000 h

Design

Product colourBlack, Orange
Fan diameter14 cm
Number of fans1 fan(s)
Fan locationTop

Certificates

CertificationCE/BSMI/EAC/TUV/FCC/CCC/RCM

Weight & dimensions

Width180 mm
Depth150 mm
Height86 mm
