UD1300GM PG5
Model UD1300GM PG5Part no. GP-UD1300GM PG5EAN 5715328308695
56 specifications
- Noise40 dB
- Weight4.17 kg
- ColourBlack
- Total power1300 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 40 dB
- Weight
- 4.17 kg
- Colour
- Black
- Total power
- 1300 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- GIGABYTE
- Category
- Power Supply Unit
- Model
- UD1300GM PG5
- Part numbers
- GP-UD1300GM PG5, GP-UD1300GM PG5 EU, GP-UD1300GM PG5 UK
- EAN / UPC
- 5715328308695, 4719331553388, 4719331553401, 4719331558444 +1 more
- Also known as
- GIGABYTE UD1300GM PG5 EU Power Supply Unit
Specifications
56 specifications in 9 groups

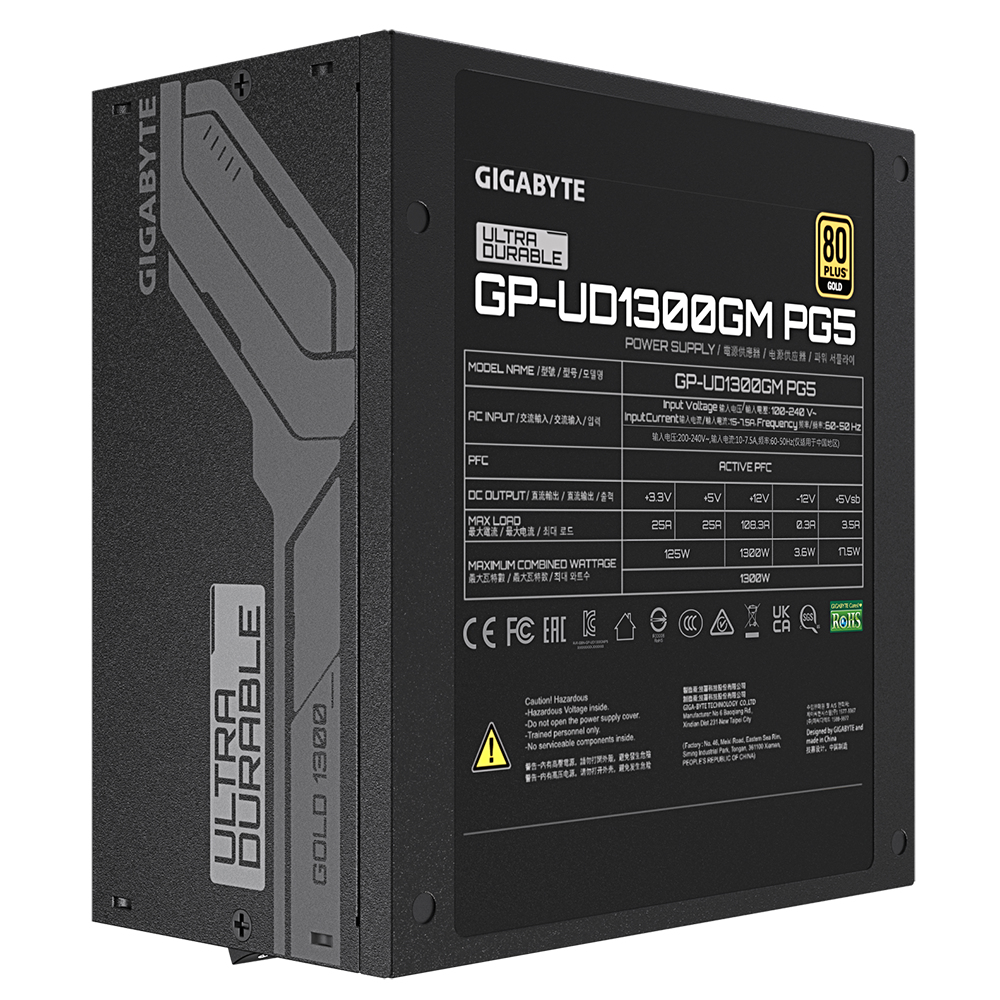

Power
| Specification | Value |
|---|---|
| Total power | 1300 W |
| AC input voltage | 100 - 240 V |
| Input current | 12 - 6 A |
| Maximum input current (@110V) | 6 A |
| Maximum input current (@220V) | 12 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1300 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 17.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 108.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3.5 A |
| Efficiency | 90% |
| Hold time | 16 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |

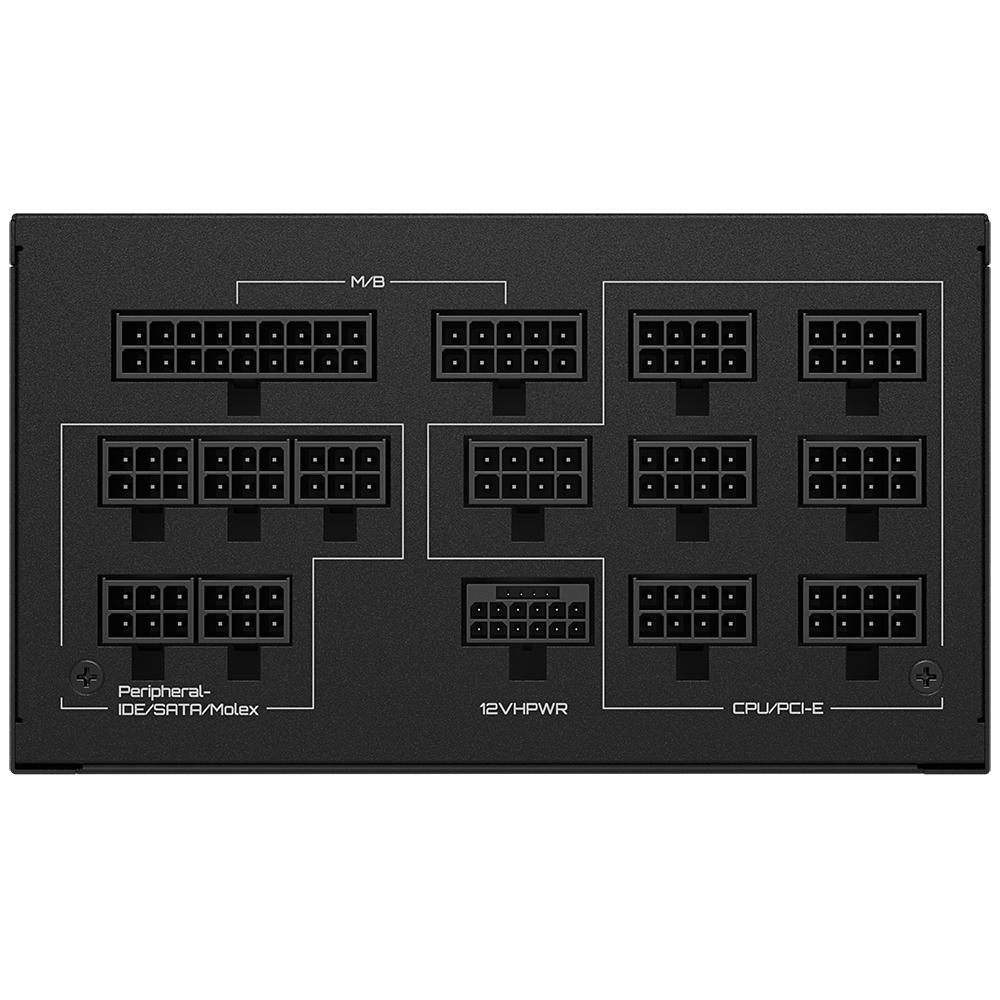

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of PATA power connectors | 3 |
| Number of SATA power connectors | 8 |
| SATA power cable length | 150,600 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 200,600 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 70 cm |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Noise level | 40 dB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

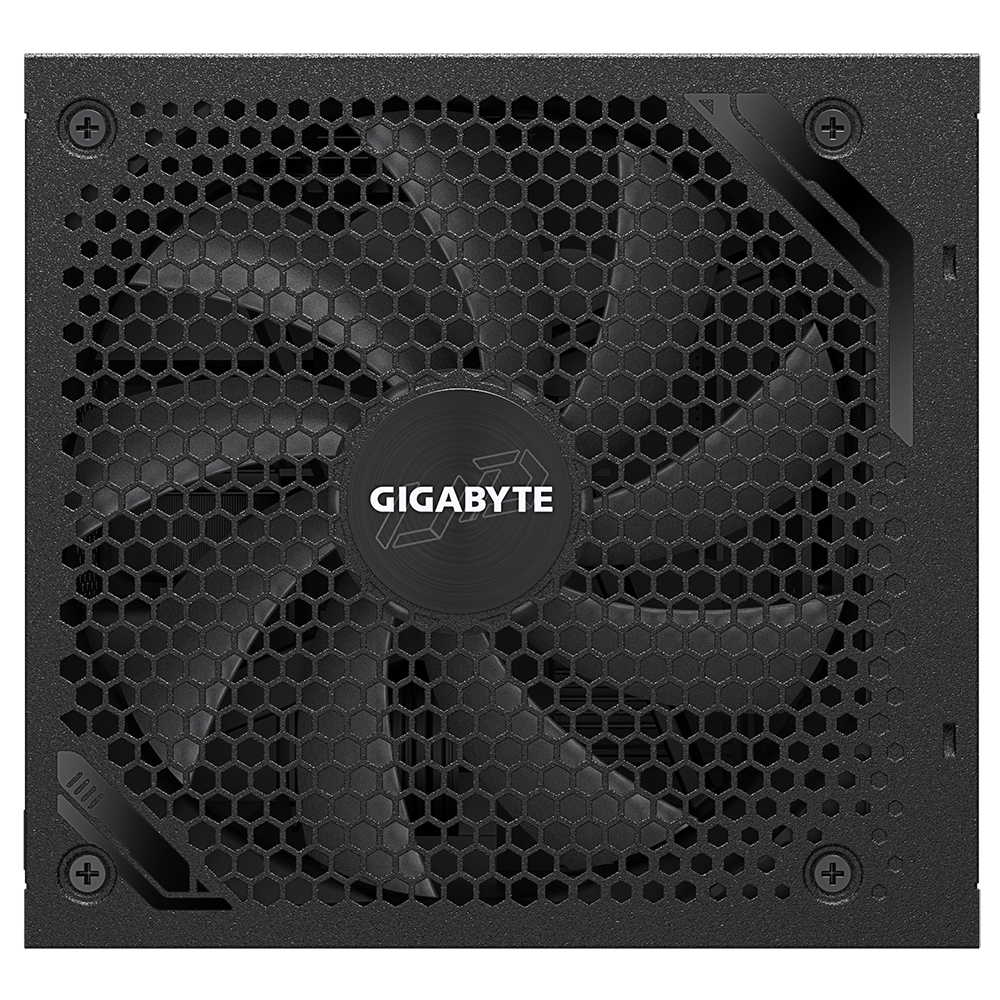

| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Illumination | No |
Packaging content
| Specification | Value |
|---|---|
| Cables included | CPU, PATA, Peripheral (Molex), SATA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CCC, CE, Federal Communications Commission (FCC), RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 4.17 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 340 mm |
| Package depth | 219 mm |
| Package height | 145 mm |
| Package weight | 4.5 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Warranty period | 10 year(s) |
