UD1000GM PG5
Model UD1000GM PG5Part no. GP-UD1000GM PG5EAN 4719331552930
33 specifications
- ColourBlack
- Total power1000 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 1000 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- GIGABYTE
- Category
- Power Supply Unit
- Model
- UD1000GM PG5
- Part number
- GP-UD1000GM PG5
- EAN / UPC
- 4719331552930, 4719331553234, 4719331553241
- Also known as
- GIGABYTE UD1000GM PG5 power supply unit 1000 W 20+4 pin ATX ATX Black
Specifications
33 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 6.5 - 15 A |
| Power Factor Correction (PFC) type | Active |
| Efficiency | 90% |
| Hold time | 16 ms |
| Power Good signal delay range | 100 - 150 ms |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |

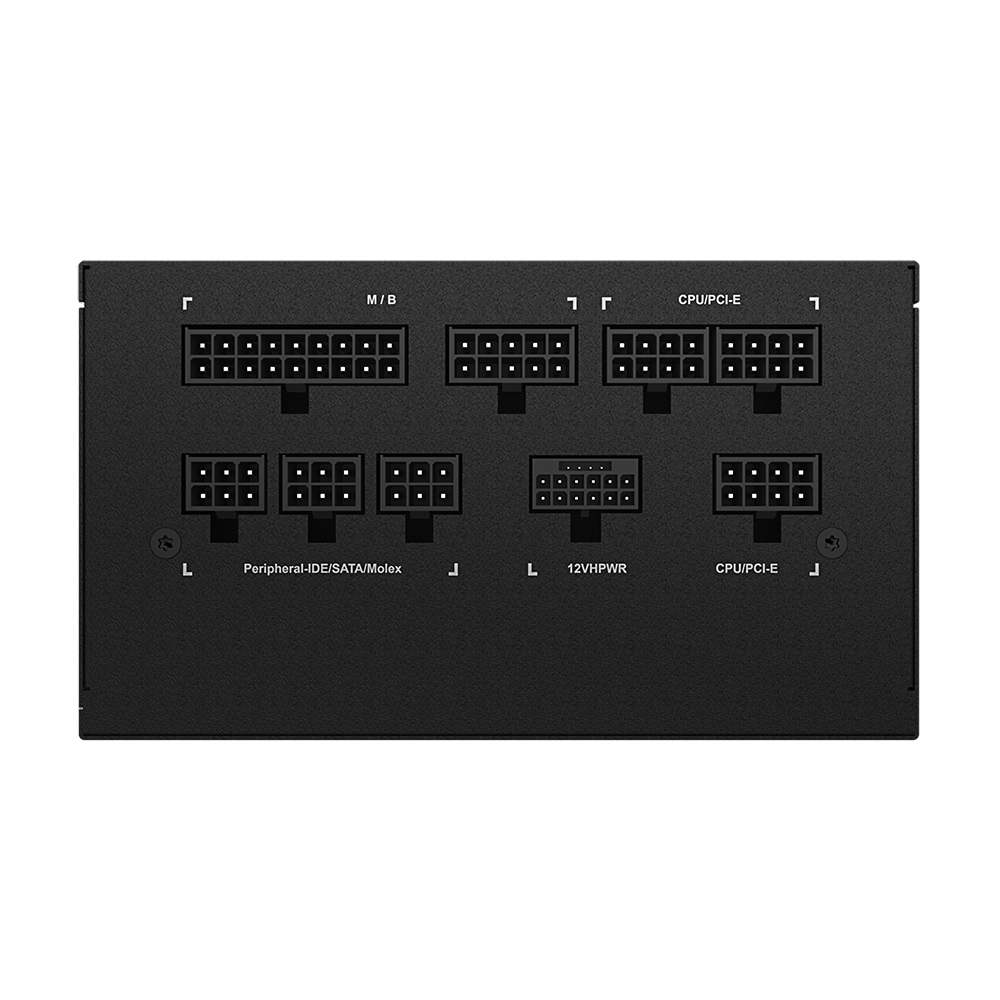

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 150,600 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 120,150,500 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 70 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 80 cm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | HYB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

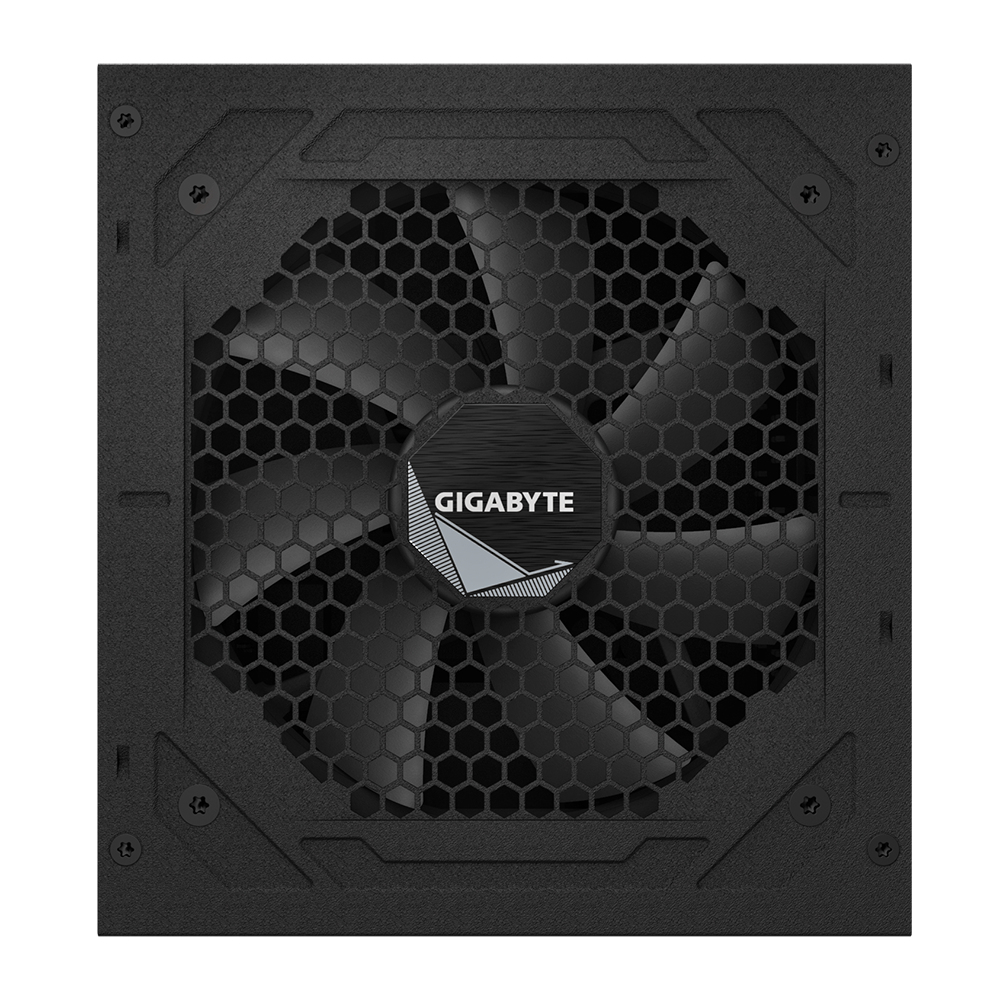

| Cooling type | Active |
| Fan diameter | 12 cm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 86 mm |
| Height | 140 mm |
